4 Dismantling a Gantry 4.3 Checklist 144 Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V3 Reconfiguration Kit Twin VHF mit Portal Reconfiguration Kit Twin VHF with Gantry 06/2020 4.3 Checklist ► Put this check…
4 Dismantling a Gantry
4.2 Performing Calibration
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V3 Reconfiguration Kit Twin VHF mit Portal
Reconfiguration Kit Twin VHF with Gantry 06/2020
143

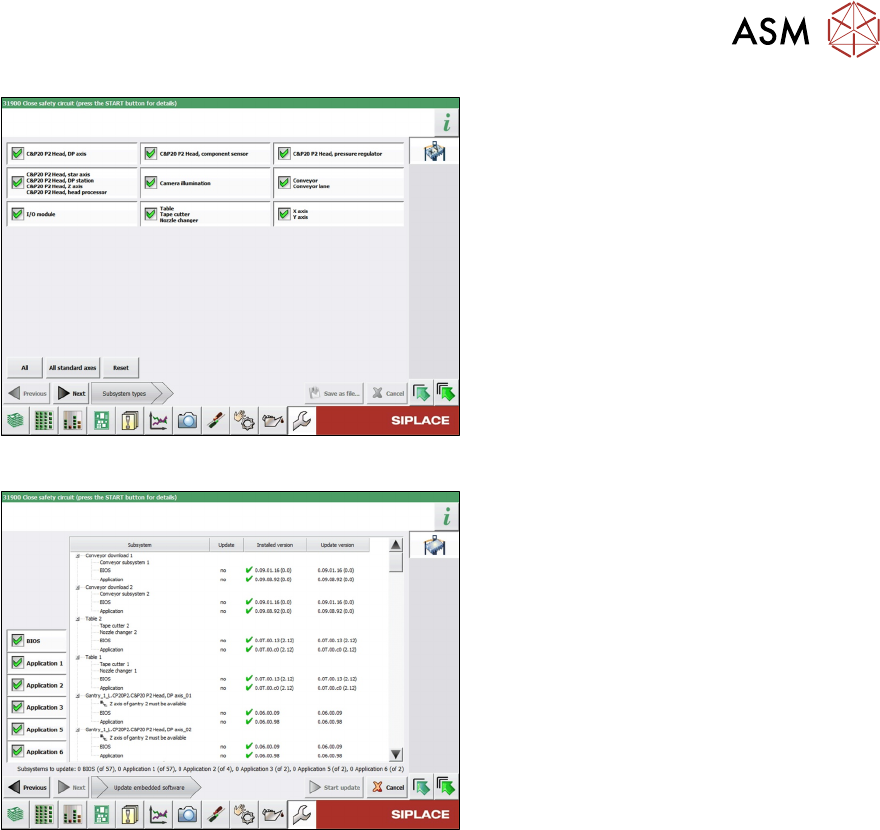

Fig.83: Select subsystem
► Select the subsystem for the eSW
download.
► Click on the Continue button.
Fig.84: Update machine menu
●
On the left, you can see the selection
buttons:
BIOS
Application 1
Application 2
Application 3
....
●
The large main area in the center
shows the status of the individual sub-
systems.
The lower edge of the main area shows
how many subsystems must still be
downloaded.
●
The button Start update starts the
download
4 Dismantling a Gantry
4.3 Checklist
144 Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V3 Reconfiguration Kit Twin VHF mit Portal
Reconfiguration Kit Twin VHF with Gantry 06/2020
4.3 Checklist
► Put this check list in the machine logbook.
Gantry dismantled (downgrade)
Step Action Who?
1 Gantry removed? Customer in line with assembly guide
2 Is the gantry secured in the gantry carrier? Customer in line with assembly guide
3 Head secured in center of gantry? Customer in line with assembly guide
4 Are the correct end position buffers fitted? Customer in line with assembly guide
5 Has the trailing cable been packed correctly and
fixed in the machine?
Customer in line with assembly guide
6 Has the stationary camera (optional) been dis-
mantled, if necessary?
Customer in line with assembly guide
7 Have the camera connections been unplugged
from the box PC?
Customer in line with assembly guide
8 Has the nozzle changer been dismantled, if ne-
cessary
Customer in line with assembly guide
9 Is the reject bin fitted? Customer in line with assembly guide
10 Have all tools been removed from the machine? Customer in line with assembly guide
11 Are the doors screwed? Customer in line with assembly guide
12 Is the machine switched on and ready for opera-
tion?
Customer in line with assembly guide
13 Have all calibration steps been performed? Customer in line with assembly guide
Date Signature
5 Appendix
5.1 Excerpts from the Service Manual
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V3 Reconfiguration Kit Twin VHF mit Portal
Reconfiguration Kit Twin VHF with Gantry 06/2020
145
5 Appendix
5.1 Excerpts from the Service Manual
The following chapters are excerpts from the service manual. For more information, refer to the full
service manual for your machine.
5.1.1 Installation Positions on the Twin VHF Head Plate

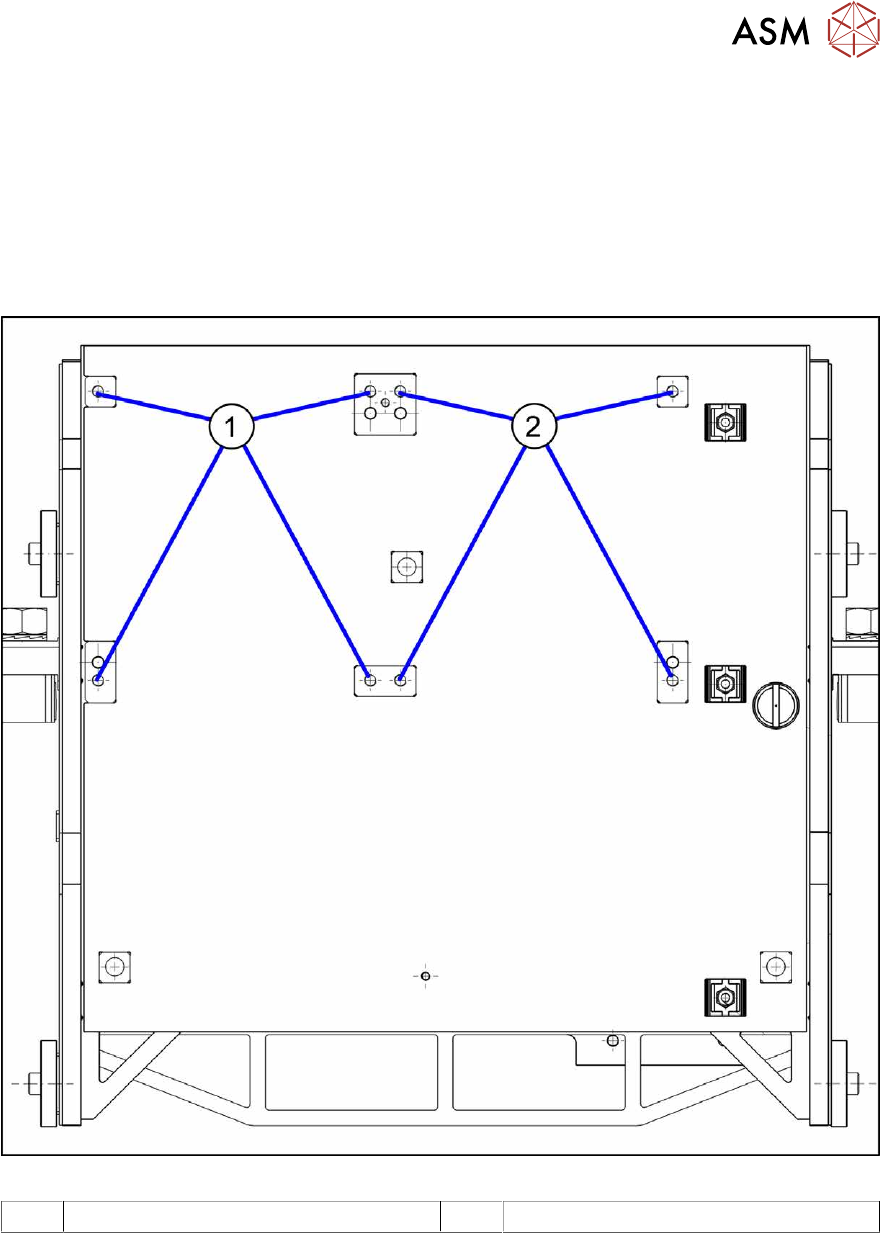

Fig.85: Installation positions on the Twin VHF head plate
1 Installation position Twin VHF segment 1 2 Installation position Twin VHF segment 2
