1 Introduction

1.4 Abbreviations

Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V3 Reconfiguration Kit Twin VHF mit Portal

Reconfiguration Kit Twin VHF with Gantry 06/2020

1.4 Abbreviations

Abbreviations Description

PA Placement area

CO Component

COT Changeover table

COT-i Changeover table insert

C&P Collect&Place

C&P12, CP12 Collect&Place head with 12 segments

C&P20, CP20 Collect&Place head with 20 segments

C&P6, CP6 Collect&Place head with 6 segments

CoD Capacity on Demand

CPP Collect&Pick&Place head

CPx Collective term for CPP, CP20, CP12 and/or CP6

ESD Electrostatic sensitive device

EMC Electromagnetic compatibility

FHE Fast Hardware Exchange

LBO Long Board Option

PCB Board

P&P Pick&Place

TH TwinHead

1 Introduction

1.4 Abbreviations

90 Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V3 Reconfiguration Kit Twin VHF mit Portal

Reconfiguration Kit Twin VHF with Gantry 06/2020

2 Brief Description

2.1 Overview

Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V3 Reconfiguration Kit Twin VHF mit Portal

Reconfiguration Kit Twin VHF with Gantry 06/2020

2 Brief Description

The SIPLACE Twin VHF option supports processing of 40mm high components with a maximum

placement force of 70Nm and up to 100Nm with the OSC package license (Vision OSC package -

machine connection [00117237‑xx]).

Gantry from serial number R0001

This option requires a new gantry. This is higher than the standard gantries, has a new head plate,

a new PCB camera and a different position for the X-axis incremental encoder. The machine auto-

matically recognizes the gantry.

These gantries can only be used with the SIPLACE Twin VHF. Other heads can not be used with

this gantry.

NOTICE

Gantry modularity

For more information about gantry modularity, read the assembly instructions "Gantry mod-

ularity SIPLACE SX1/SX2 V3" [00198705‑xx].

SIPLACE WPC

For feeding in 40 mm components, you need a "SIPLACE WPC5/6 – 45 mm" (40 mm component

height and 5 mm tray height).

Cover

For the "SIPLACE WPC5/6 – 45 mm", you need to fit a new cover with a space cut for the WPC.

This cover is located in the reconfiguration kit Twin VHF [03105335‑xx].

2.1 Overview

2.1.1 SIPLACE SX1/SX2 V3 overview

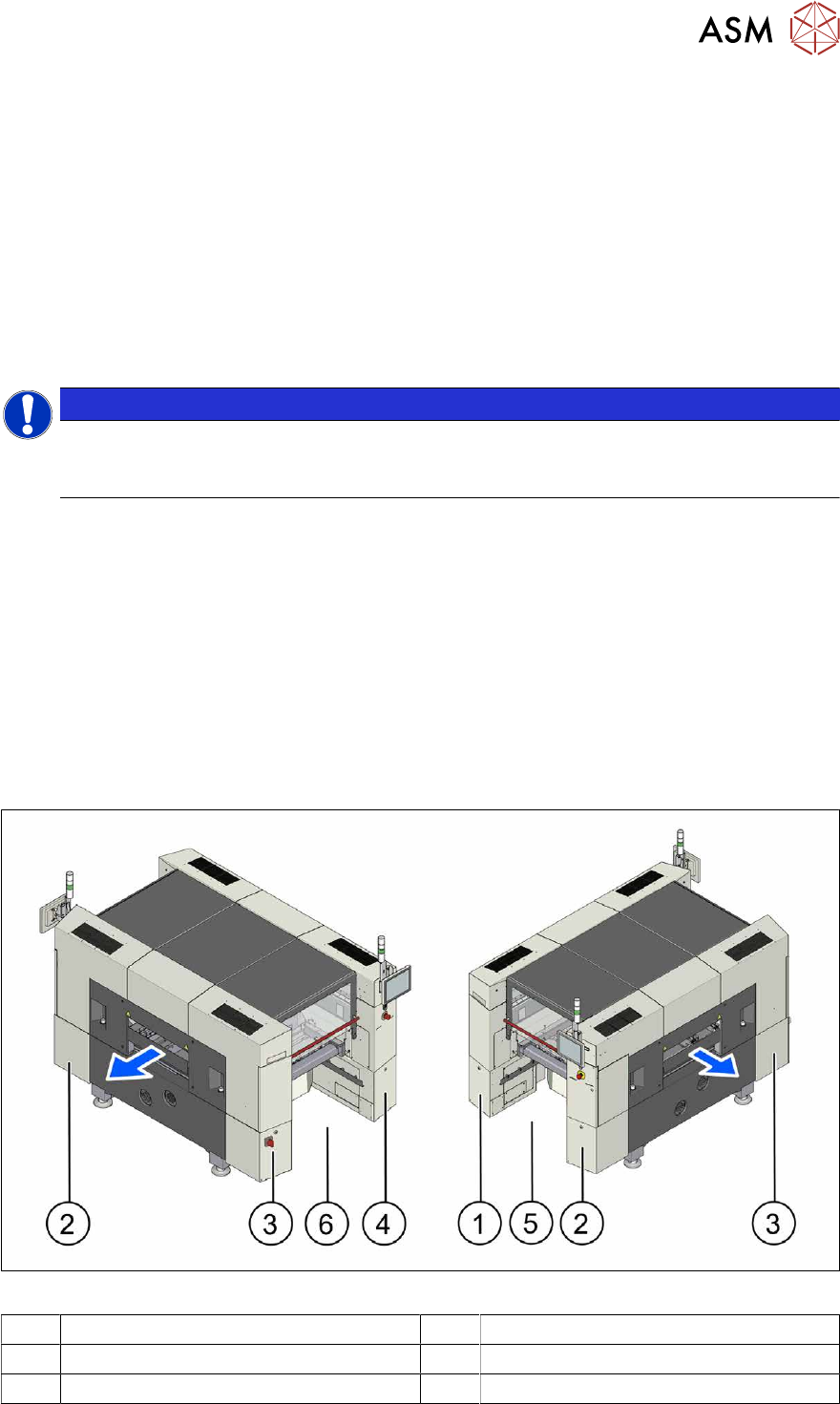

Fig.5: Overview

1 Sector 1 (pneumatic unit) 2 Sector 2

3 Sector 3 (power supply) 4 Sector 4

5 Location 1 6 Location 2
