3 Fitting the gantry
3.2 Gantry Preparations
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V3 Reconfiguration Kit Twin VHF mit Portal
Reconfiguration Kit Twin VHF with Gantry 06/2020
111
WARNING
Stability, obstacles
► The platform must be always brought to the lowest position when using the lifting aid
as transportation unit (within the moving procedure). The load must always be
centered (in the center of gravity) on the platform (this may vary according to the indi-
vidual case) in order to achieve highest possible stability (tilt resistance) during mov-
ing. When moving the lifting aid, pay particular attention to obstacles such as door lim-
its, cables on the ground and also check the driving through height with the height of
the gantry lift slide. The small wheel diameter used (depends on configuration) could
mean that even smaller obstacles can cause an abrupt deceleration or inadvertent dir-
ection change if contact to the wheel is established.
► If the load is not completely lowered the lifting assistance may tilt or (in case of insuffi-
ciently secured load) the load may fall down depending upon driving speed and kind of
the obstacle. Thus, always lead the lifting assistance with appropriate speed, particu-
larly in curves and with changing or uneven soil conditions. Fasten the load always
sufficiently before transporting it in order to surely avoid inadvertent falling down and/
or reduce the transportation speed that also an unsecured load cannot glide from the
load pickup in case of an abrupt deceleration.
► Likewise the load must not come into oscillations during the transport . Thereby inad-
vertent reactions can occur.
WARNING
Ergonomics
► Always make sure that the platform and the surface on which the load is putted down
and/or be taken up are on the same height (varies in case of individual preparations).
The load must be pulled of the platform and/or pushed onto it (not elevated/carried) in
order to work in an ideal ergonomic position!
Overview

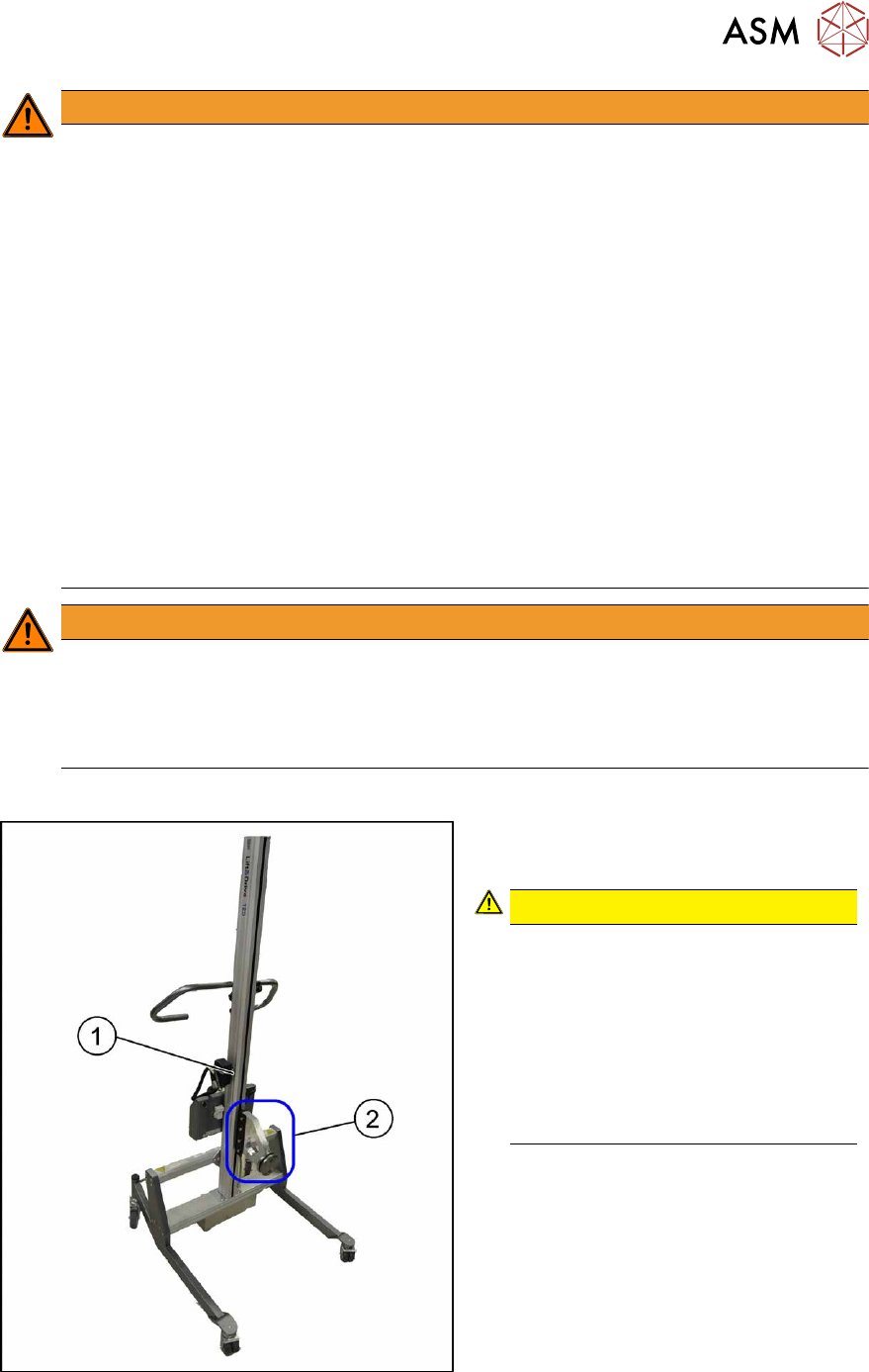

Fig.25: Example of a gantry lift with gantry carrier
1. Gantry lift (example)
2. Gantry carrier plate [03012160-xx]
CAUTION!
Safety instructions
Pay attention to the weight of approx-
imately 64 kg when unpacking the
transport wrapper!
Use appropriate tools or call further
qualified persons.
The gantry lift has to be locked suffi-
ciently when transporting it again in or-
der to eliminate any danger.
.
3 Fitting the gantry
3.2 Gantry Preparations
112 Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V3 Reconfiguration Kit Twin VHF mit Portal
Reconfiguration Kit Twin VHF with Gantry 06/2020
Assembly

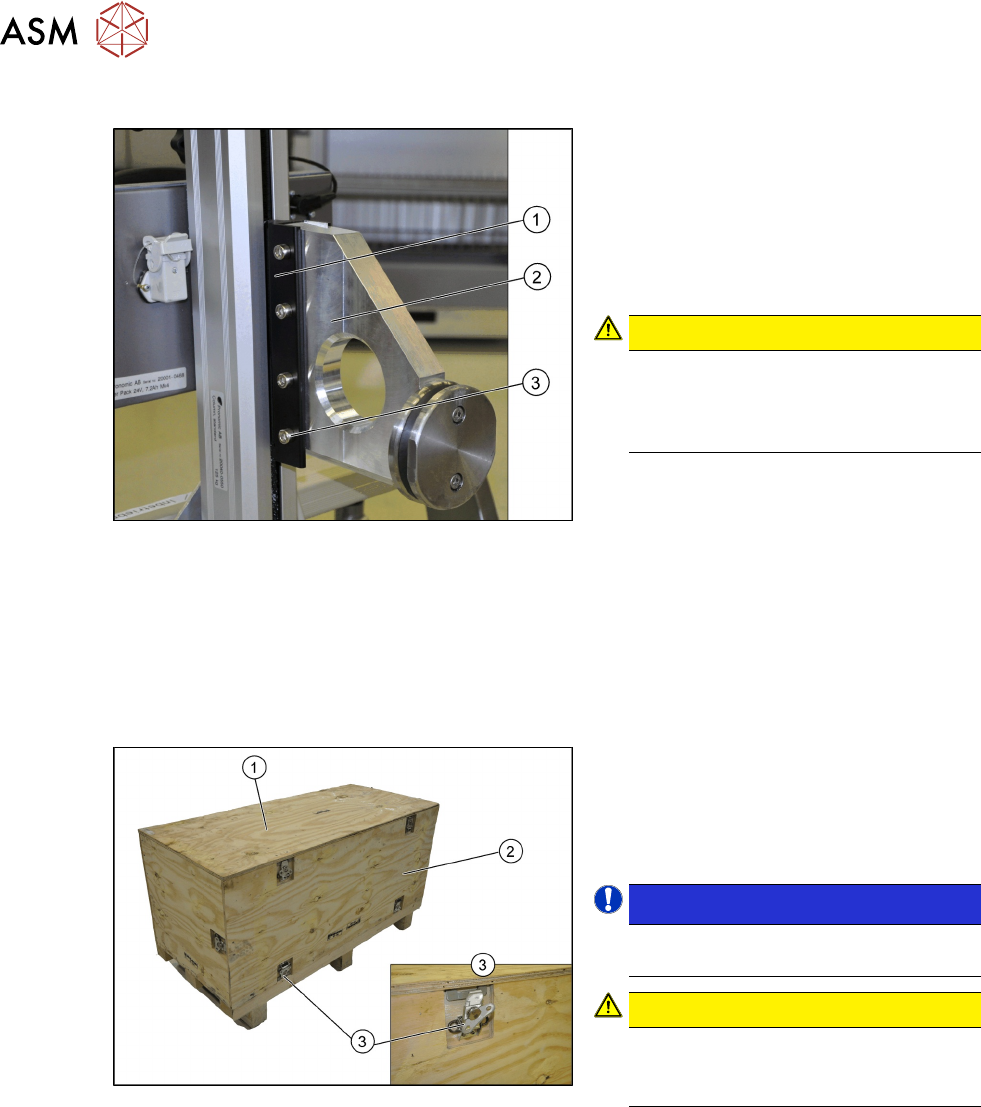

Fig.26: Gantry carrier plate fitted
Fitting the gantry carrier plate
To enable the gantry lift to accommodate the
gantry, the gantry carrier plate (2)
must be
fitted to the slide (1)
of the gantry lift.
► Use the four fastening screws (3) to fix
the gantry carrier plate(2)
to the slide (1)
of the gantry lift.
CAUTION!
Information on safety
Mount all eight screws with the associ-
ated washers and tighten them with
18Nm.
.
3.2.2 Unpacking the Gantry
Transportation crate
The gantry is packed in a transportation crate. Move the transportation crate near to the SIPLACE
SX machine on which the gantry is to be assembled. Do not move the gantry over long distances
with the gantry lift.
Fig.27: Transportation crate
► Open the turn-lock fasteners (3) on the
top (1)
and front (2) of the transporta-
tion crate.
► Remove the two wooden panels at (1)
and (2).
NOTICE!
The gantry is fixed with four screws in
the transportation crate.
.
CAUTION!
Carrier
When putting back the carrier it must
be screwed again.
.
3 Fitting the gantry
3.2 Gantry Preparations
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V3 Reconfiguration Kit Twin VHF mit Portal
Reconfiguration Kit Twin VHF with Gantry 06/2020
113
Move the gantry lift into position

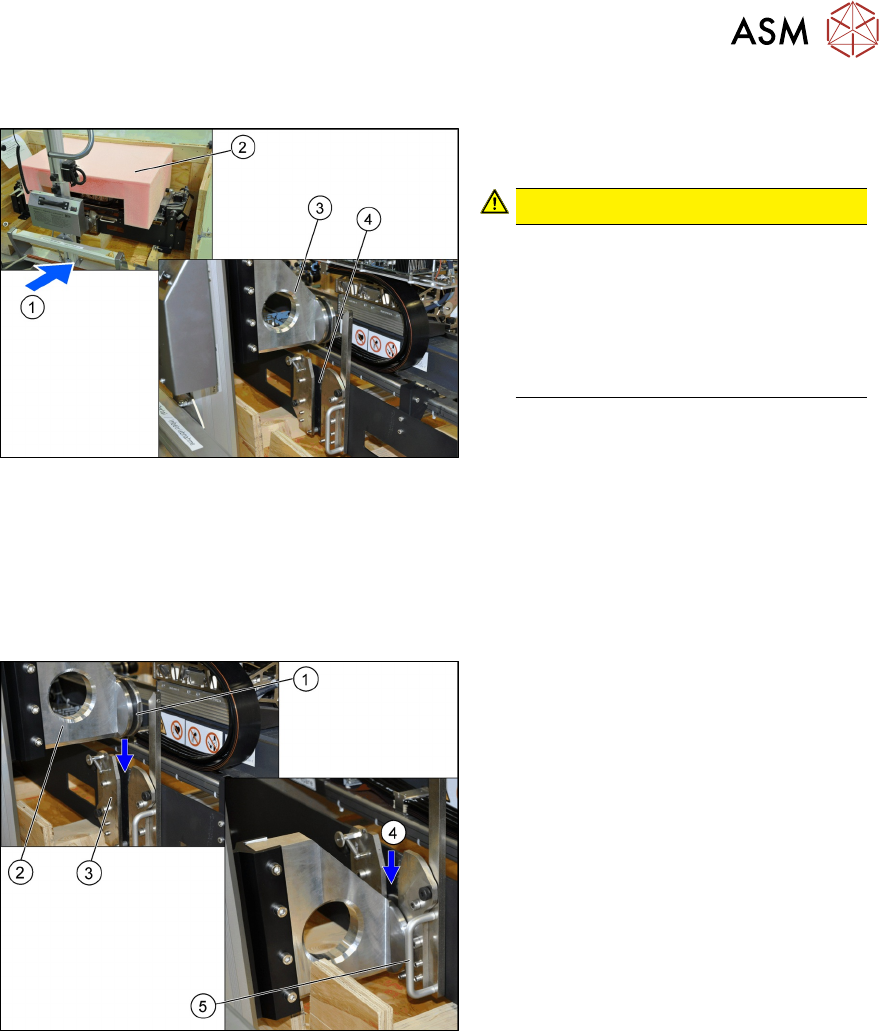

Fig.28: Gantry lift in position
► Carefully move the gantry lift (1) up to
the gantry.
CAUTION!
Take care not to damage the gantry
when moving it with the gantry lift.
Do not hit the gantry or locks with the
gantry carrier plate(3).
Make sure that the gantry carrier plate
(3) protrudes above the gantry carrier
locks(4).
.
► Remove the foam cover (2).
3.2.3 Locking and Transporting the Gantry Carrier
The "gantry 40 mm" may only be transported with the current gantry carriers [00519814-03]
(observe function state!).
Move the gantry lift to the gantry
Fig.29: Gantry lift on gantry
► Move the gantry carrier plate (2) for the
gantry lift over the gantry carrier locks
(3)
. The groove (1) must be able to en-
gage with the two locking plates (3)
.
► Lower the gantry lift so that the gantry
carrier plate can slide into the locks (4)
.
► Move the lift only so far down that the
locking lever (5)
can be closed.
