3 Fitting the gantry
3.1 Preparations at the Machine
108 Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V3 Reconfiguration Kit Twin VHF mit Portal
Reconfiguration Kit Twin VHF with Gantry 06/2020
3.1.4 Removing the End Position Buffer
The long end position buffers must be fitted in SIPLACE SX1 machines with one gantry. When con-
verting a SIPLACE SX1 to an SX2, you need to remove this and replace it with short end position
buffers.

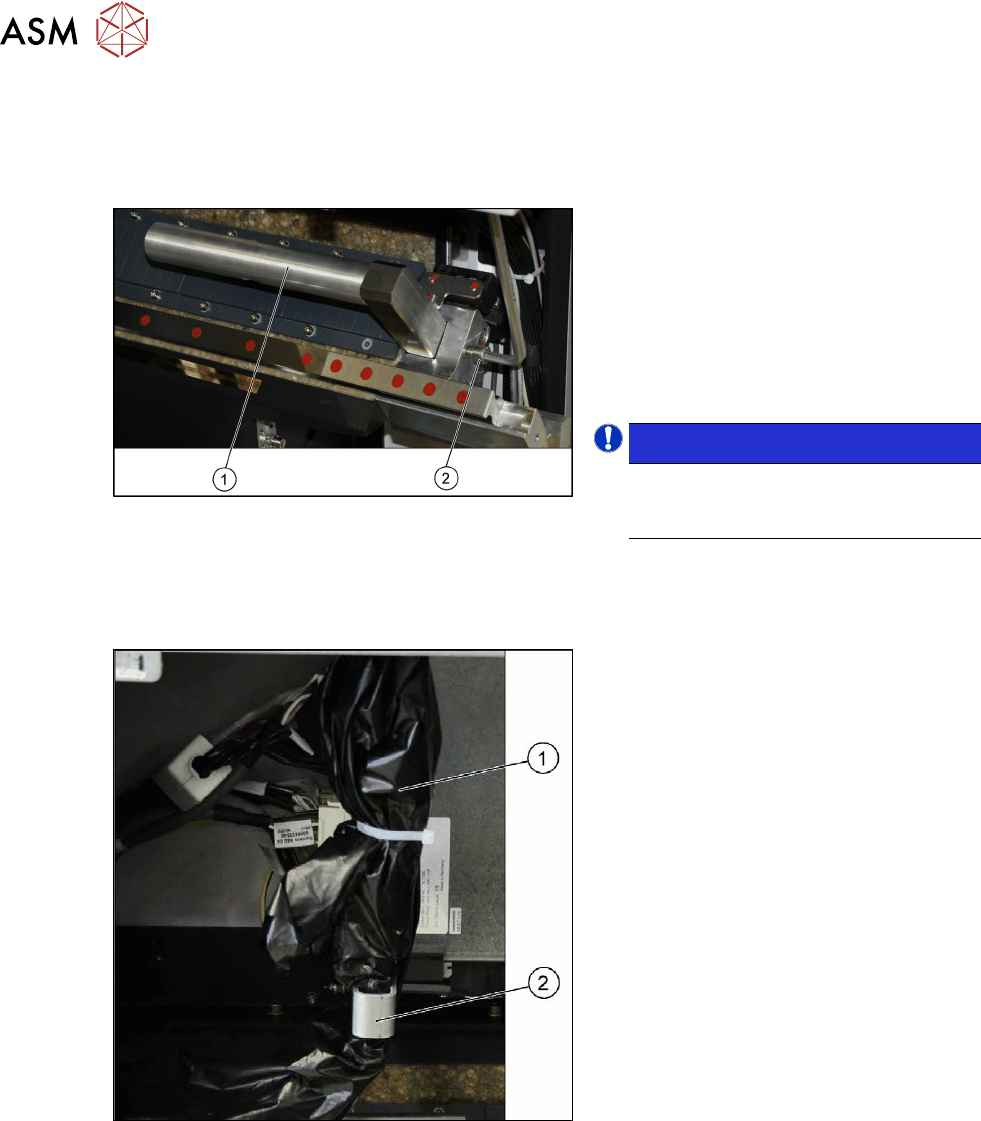

Fig.21: Long end position buffer
Remove the two long end position buffers.
After fitting the second gantry, fit the two
short end position buffers in place of the
long ones.
► Loosen the fastening screw (2) on the
long end position buffer (1)
.
► Remove the two end position buffers
from the right and left sides.
NOTICE!
Keep the two long end position buffers
in the "Prepared" case for fitting back
into place later on.
.
3.1.5 Preparing the Trailing Cable
Overview
Fig.22: Trailing cable, packed
The trailing cable (1) is packed in black
plastic foil and fixed to a holder(2)
.
3 Fitting the gantry
3.1 Preparations at the Machine
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V3 Reconfiguration Kit Twin VHF mit Portal
Reconfiguration Kit Twin VHF with Gantry 06/2020
109
Loosening the trailing cable

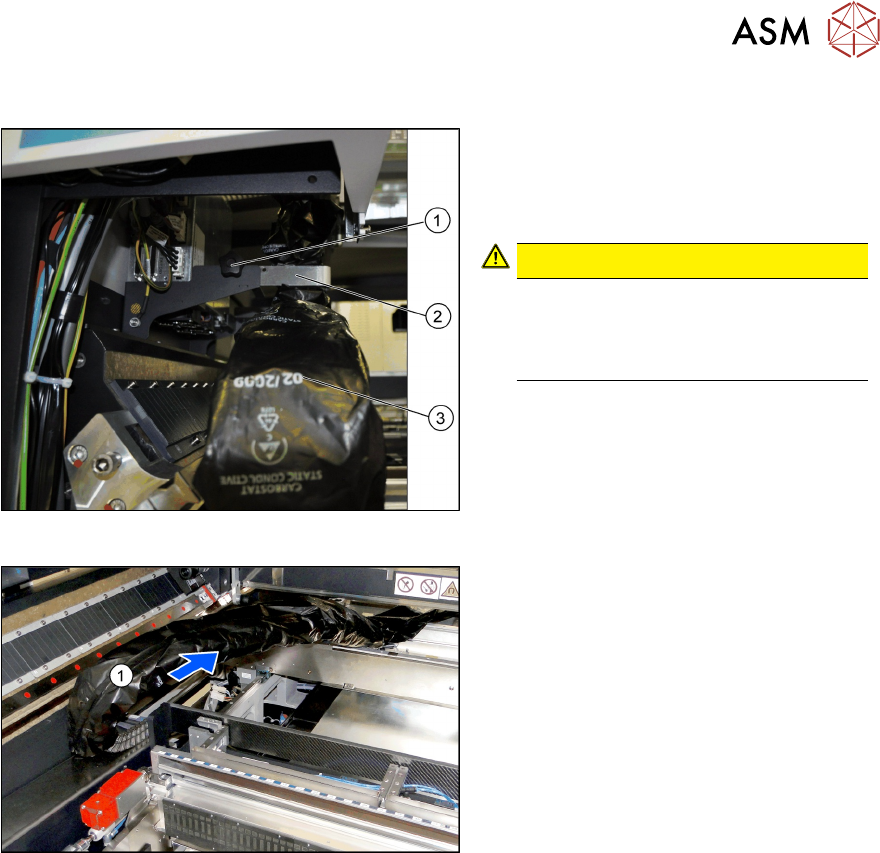

Fig.23: Trailing cable in holder
► Loose the fixture screw (1) on the
holder (2)
.
► Carefully disconnect the trailing cable
(3)
from its holder.
CAUTION!
Take care when handling the trailing
cable!
Take care not to damage the foil or the
trailing cable.
.
► Place the holder and the fixture screw
in the "Prepared case" for fitting back
into place later on.
Fig.24: Trailing cable in the machine
► Take the trailing cable (1) and place it
carefully towards the front, into the
machine.
3 Fitting the gantry
3.2 Gantry Preparations
110 Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V3 Reconfiguration Kit Twin VHF mit Portal
Reconfiguration Kit Twin VHF with Gantry 06/2020
3.2 Gantry Preparations
The gantry is packed in a transportation crate. You need the gantry lift to transport the gantry.
3.2.1 The Gantry Lift
We recommend a gantry lift for transportation and assembly. Observe the following instructions:
WARNING
Installation
The installation can be performed manually, although we do recommend
using a gantry lift for safety purposes.
WARNING
Observe the manufacturer's operating guide!
Please consult the operating guide supplied for details of how to handle the gantry lift and
for all safety-relevant aspects. Observe the instructions therein
► Observe the safety instructions in the manufacturer's operating guide.
► Observe all safety instructions in this assembly guide when transporting and assem-
bling the gantry.
WARNING
Checks
► The operator is obligated to check the lifting assistance for visible damage at least
once at shift start or in case of an abnormality, anomaly or event and to give notice of
such damage immediately.
WARNING
Brake, wheels
► Lock the wheels by pushing the brake rod down/forward as far as possible before
loading or unloading the lifting assistance.
► Lock the foot brake after every moving procedure and/or after arriving the required
position in order to prevent inadvertent rolling of the lifting assistance. Release the
brake before moving it again.
WARNING
Fixtures
► Never loosen the fastening of loads, if these are still in use. Always ensure a safe
standing of the load before release it.
WARNING
Risk of injury
► When using mobile (tiltable, swiveling, inclinable) load pickup devices always make
sure that no own or different parts of the body and also no other obstacles are to be
located in the entire movement range of load and load pickup devices.
