NPM-TT2 EJM1EE-MB-04 T-00 Load lists Motor list 1 Troubleshooting 4-2-1 Standard unit Unit name No. Name Location Remark Main body M501 X-axis motor Front side M502 M506 Y -axis motor Front side M503 X-axis motor Rear si…

NPM-TT2 EJM1EE-MB-04T-00

4-1-10

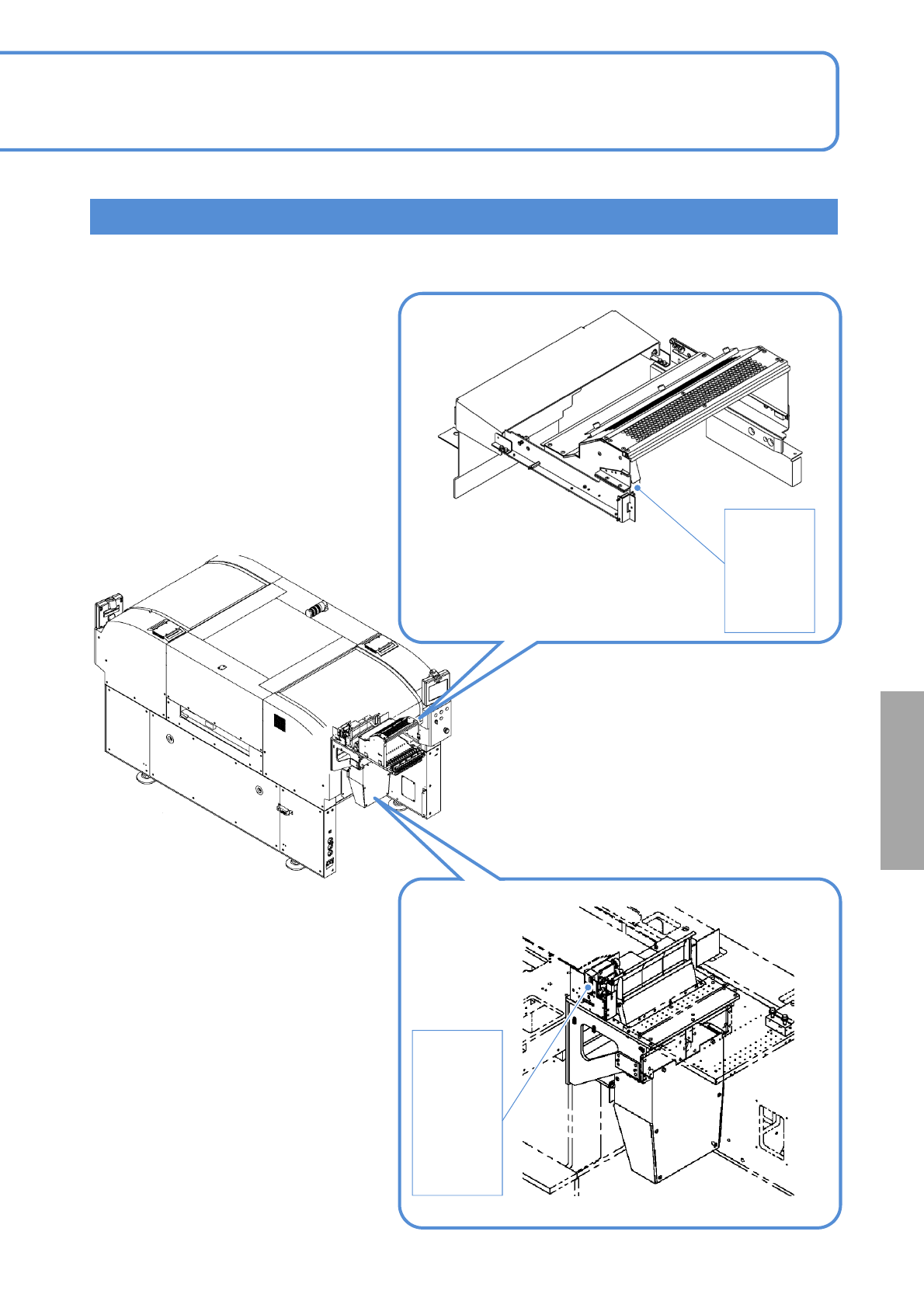

Load arrangement

drawings

Feeder cart switch unit

Front side:

S401

S402

S409

Rear side:

S403

S404

S410

Front side:

S405

S406

Rear side:

S407

S408

■Supply unit switch specifications

NPM-TT2 EJM1EE-MB-04T-00

Load lists

Motor list 1

Troubleshooting

4-2-1

Standard unit

Unit name No. Name

Location Remark

Main body M501

X-axis motor

Front side

M502

M506

Y-axis motor Front side

M503

X-axis motor

Rear side

M504

M508

Y-axis motor Rear side

G103

Cooling fan 1

Front side

G104

Cooling fan 2

Rear side

G111 Machine inner cooling fan

G201 Vacuum pump Rear side

PCB conveyor M601 Transfer motor 1 lane 1

M602

Transfer motor 2 lane 1

M603 Transfer motor 3 lane 1

M604

Transfer motor 1 lane 2

M605

Transfer motor 2 lane 2

M606

Transfer motor 3 lane 2

M607 Width-adjustment motor lane 1

M608 Width-adjustment motor lane 2

4-2-1-1

NPM-TT2 EJM1EE-MB-04T-00

4-2-1-2

Option

Unit name No. Name

Location Remark

8-nozzle head M401



-axis motor 1

M402



-axis motor 2

M403

Z-axis motor 1

M404

Z-axis motor 2

M405

Z-axis motor 3

M406

Z-axis motor 4

M407

Z-axis motor 5

M408

Z-axis motor 6

M409

Z-axis motor 7

M410

Z-axis motor 8

G1001

CPU cooling fan motor

3-nozzle head M401



-axis motor 1

M402



-axis motor 2

M405



-axis motor 3

M403

Z-axis motor 1

M404

Z-axis motor 2

M406 Z-axis motor 3

G1001

CPU cooling fan motor

Single tray feeder

main body

G101 Cooling fan motor

Single tray feeder

lifter

M401 TL-axis motor

Single tray feeder

drawer

M402 TP-axis motor

Multifunctional

transfer unit

M401 TS motor

M402 TY motor

Load arrangement

drawings
