Option Air Dryer 0019797 3 - 10 / 02 , 2016 11 - 22 © ASM SIPLACE Mat. Tower St ora ge Serv ice Manu al Step 7 Plug all three air connection hoses. Step 8 Remov e all tools and close the doo rs of the machine . Plug in t…

00197973-10 / 02 , 2016 Option Air Dryer

SIPLACE Mat. Tower Storage Service Manual © ASM 11-21

Remove the compressed air input including the

connector by loosening the adaptor. It may help

when removing the four screws of the holding

first.

If not already done, remove all eight screws and

the holding.

Step 5

Assemble the parts which have been removed in step 4 on the new membrane dryer. Follow the

reversed disassembling order of step 4.

Step 6

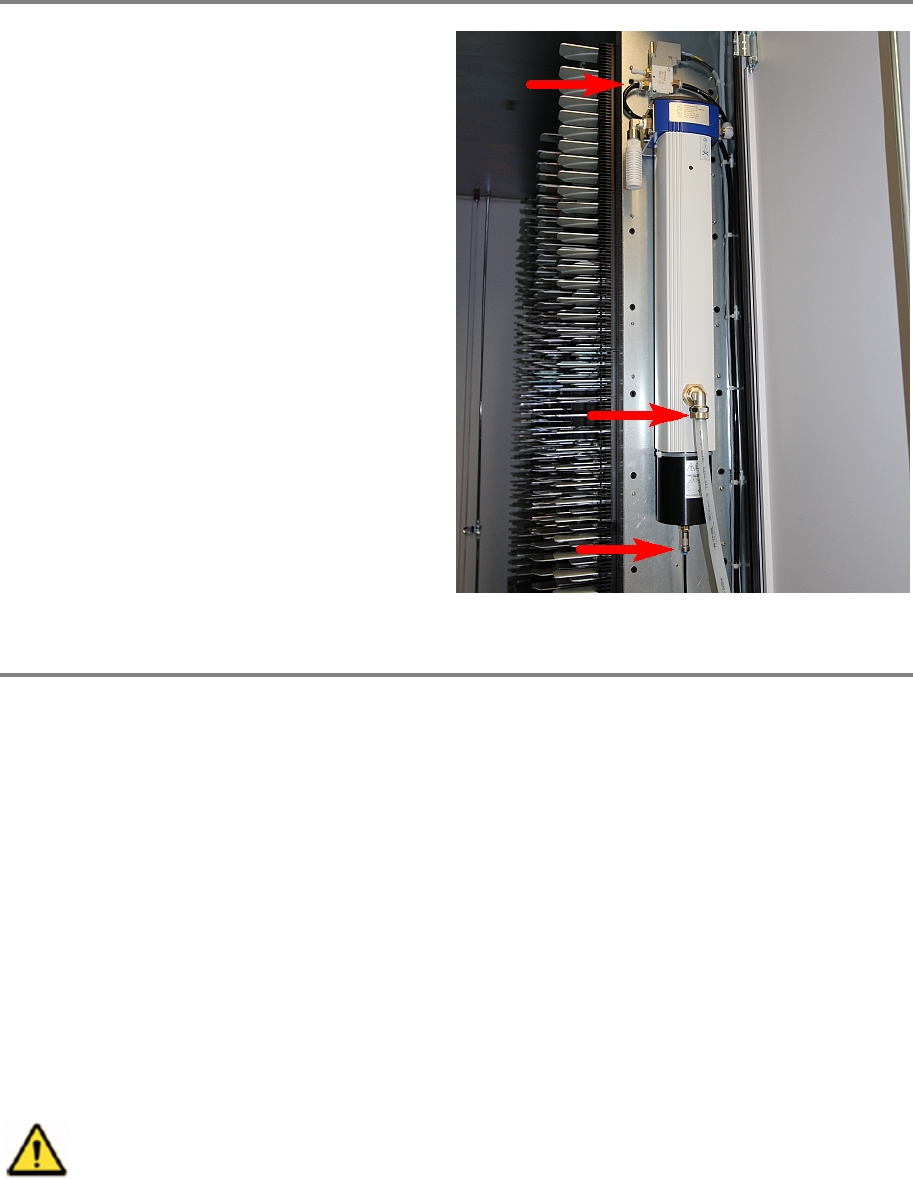

Assemble the new membrane dryer. The four

screws holding the air dryer are l

ocated at the

back side of the panel.

Option Air Dryer 00197973-10 / 02 , 2016

11-22 © ASM SIPLACE Mat. Tower Storage Service Manual

Step 7

Plug all three air connection hoses.

Step 8

Remove all tools and close the doors of the machine.

Plug in the power connector, connect the compressed air supply and switch on the machine.

Initialize the machine by means of the software.

11.4 Humidity Sensor

11.4.1 Introduction

This modification instruction describes how to change the humidity sensor of the Air Dryer Option

on SIPLACE Material Tower.

Spare part number: 03124534-01

Before starting the maintenance, read the Safety instructions carefully.

11.4.2 Tools, Material and Scheduling

For an effective and efficient maintenance, the following resources have to be provided:

00197973-10 / 02 , 2016 Option Air Dryer

SIPLACE Mat. Tower Storage Service Manual © ASM 11-23

Required Tools / Auxiliary Material / Spare parts

Tools: Small pincer

Auxiliary Material: none

Spare parts:

03124534

-01, humidity sensor

Time needed

Schedule around 10 minutes for this task.

11.4.3 Prerequisites

For a safe and efficient maintenance, the following prerequisites have to be fulfilled:

Personnel:

• Any work with or at the equipment must be carried out by skilled

and trained personnel in accordance with the locally applicable

regulations.

• Inform all involved persons regarding the currently running

maintenance works.

Machine loading:

• NO item must be unloaded.

Machine operating

condition:

• Shut down

Main electrical power:

• The Main Switch must be switched off. Remove the main power

connection.

Compressed air /

Nitrogen (if used):

• does not matter
