X Axis 00197973-10 / 02 , 2016

4-4 © ASM SIPLACE Mat. Tower Storage Service Manual

Auxiliary Material: none

Spare parts:

03124541

-01, X Motor

Time needed

Schedule around 15 minutes for this task.

4.1.3 Prerequisites

For a safe and efficient maintenance, the following prerequisites have to be fulfilled:

Personnel:

• Any work with or at the equipment must be carried out by skilled and

trained personnel in accordance with the locally applicable

regulations.

• Inform all involved persons regarding the currently running

maintenance works.

Machine loading:

• All stored items must be unloaded in advance.

Machine operating

condition:

• Shut down

Main electrical

power:

• Equipment disconnected from power supply system. The Main Switch

(switched off) locked by means of a padlock to secure the main switch

against unintentional switching on.

Compressed air /

Nitrogen (if used):

• Equipment disconnected from compressed air or nitrogen supply.

Access:

•

Open both maintenance doors of the machine.

00197973-10 / 02 , 2016 X Axis

4.1.4 Exchange steps

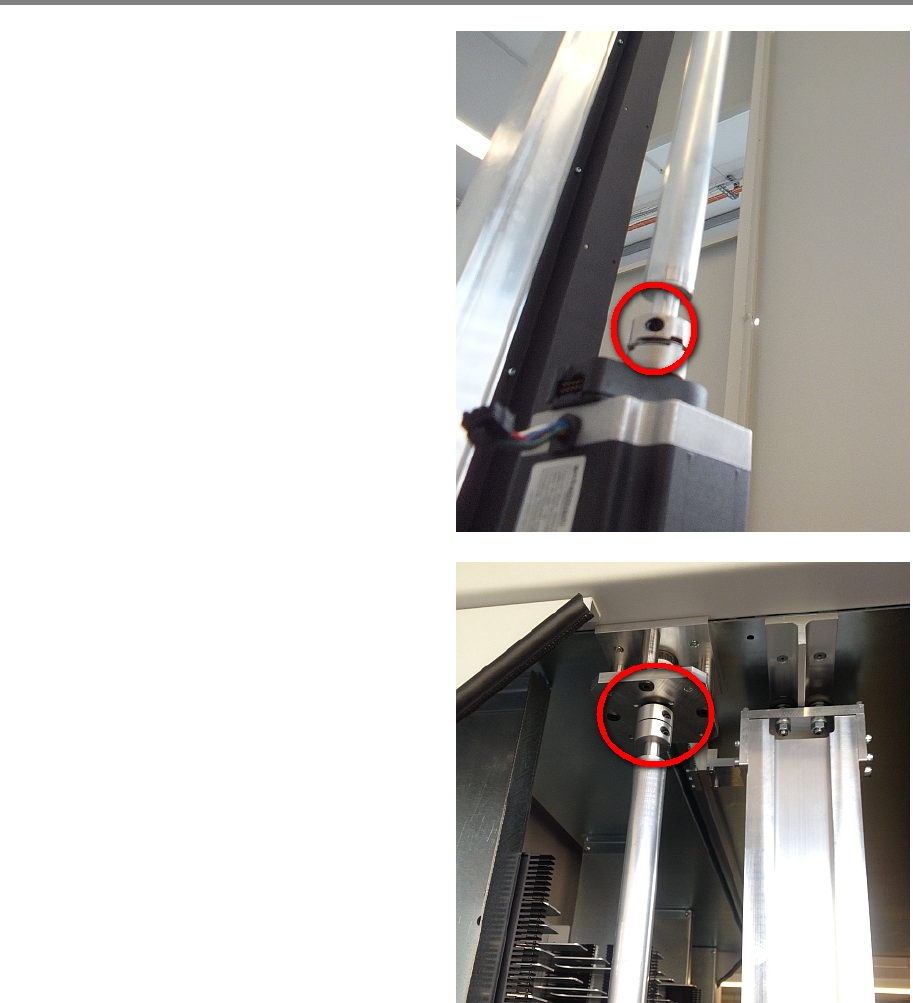

Step 1

Loosen the rigid coupling by loosening both

screws. Move the coupling up as far as possible

and refasten the upper screw. The couplin

should now be fixed on the shaft.

Securely hold the shaft in one hand and loosen

the rigid coupling by loosening both screws.

Now carefully remove the shaft and put it aside.

X Axis 00197973-10 / 02 , 2016

Step 2

Unplug both connection cables.

Step 3

Loosen the screw of the coupling.
