Operational Safety 2.1.5 Danger of Crushing at SIPLACE JTF-S Saf ety Instructions JEDEC Tray Feeder 101 Areas of the SIPLACE JTF-S at which there is a danger of crushi ng. Magazine and pusher assemb ly Tray clamp Cylinde…

100%1 / 168
Operational Safety
Safety Instructions 2.1.5 Danger of Crushing at SIPLACE JTF-S
100 JEDEC Tray Feeder
2.1.5
2.1.5 Danger of Crushing at SIPLACE JTF-S
Danger of Crushing at SIPLACE JTF-S

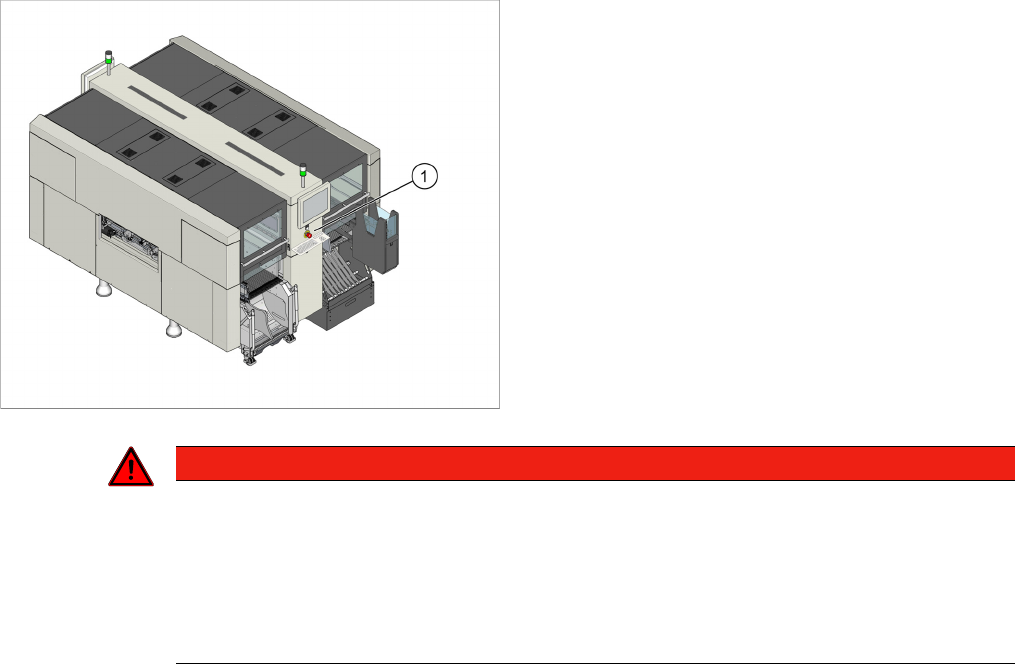

The SIPLACE JTF-S (JEDEC tray stack feeder) stops
when the stop button (1) is pressed or if the door is unin-
tentionally opened.
DANGER
Danger of crushing
There is a risk of injuries by pinch points or a risk of crushing by reaching into the feeder or from
loose clothing which could get into the feeder during operation.
➢ Observe correct handling and the safety instructions.
► Do not reach into the feeder while it is running.
► Maintain an adequate safety distance.
Operational Safety
2.1.5 Danger of Crushing at SIPLACE JTF-S Safety Instructions
JEDEC Tray Feeder 101
Areas of the SIPLACE JTF-S at which there is a danger of crushing.
Magazine and pusher assembly
Tray clamp
Cylinder for tray clamp
Operational Safety
Safety Instructions 2.1.5 Danger of Crushing at SIPLACE JTF-S
102 JEDEC Tray Feeder
Feeder base - movable tray stack
Recess for separation rods
Feeder base - movable tray stack
