Tasks for SIPLACE JTF-S, SIPLACE JTF-M

5.2.1 Structure Controls and Displays

JEDEC Tray Feeder 147

LED indicators

Green LED – READY (1)

LED on Shows that a tray was successfully moved to the pick position and

is now ready for components to be removed from the tray (or for it

to be loaded). The LED also shows that a ready signal has been

sent to the host. As soon as the tray leaves the pick position, the

LED will extinguish.

LED off Not ready for loading or unloading or tray changeover.

Orange LED – Stop/Error (2)

LED on Stop condition. For example, occurs after stop button was pressed.

LED flashes Error condition. An error occurred during the tray changeover.

LED off Normal mode

Yellow LED – Inhibit (3)

LED on The yellow LED shows a lock. The feeder will not receive any tray

changeover commands, neither via the remote control nor manual-

ly.

LED off Normal mode.

Blue LED – Full/Empty (4) If the next tray is manually queried after the last tray in the maga-

zine (slot with the highest number), the blue LED will show EMPTY.

This also occurs when there is no magazine inserted.

NOTICE

SIPLACE JTF-M

The SIPLACE JTF-M is only operated via the SC GUI. The only exception is the Reset button

on the operating panel, which can be used for the reset function.

Tasks for SIPLACE JTF-S, SIPLACE JTF-M

Controls and Displays 5.2.2 Operating the JEDEC Tray Feeder in the Station Software (SW707)

148 JEDEC Tray Feeder

5.2.2

5.2.2 Operating the JEDEC Tray Feeder in the Station Software (SW707)

Operating the JEDEC Tray Feeder in the Station Software (SW707)

SIPLACE JTF-S, SIPLACE JTF-M feeders are available from station software version 707.0. Previous

versions do not support this feeder family.

The SIPLACE JTF-S, SIPLACE JTF-M is not displayed at the station until a job has been defined.

The following terms are used in the sections:

1. Menu

2. Submenu

Main view - SIPLACE SX2 (V2) as example

Main view - SIPLACE X4 S as example

NOTICE

Example

The following graphics show the station software 707.xx taking the SIPLACE SX2 V2 as exam-

ple. Proceed in the same way for SIPLACE SX1 V2 machines and SIPLACE X-Series S ma-

chines. Any differences will be explicitly indicated.

Tasks for SIPLACE JTF-S, SIPLACE JTF-M

5.2.2 Operating the JEDEC Tray Feeder in the Station Software (SW707) Controls and Displays

JEDEC Tray Feeder 149

5.2.2.1

5.2.2.1 SIPLACE JTF-S, SIPLACE JTF-M Configured in SIPLACE Pro and Defined at Machine

SIPLACE JTF-S, SIPLACE JTF-M Configured in SIPLACE Pro and Defined at Machine

If a SIPLACE JTF-S, SIPLACE JTF-M has been configured in SIPLACE Pro, the corresponding location

is divided into two areas when the job is defined for the machine. For X-Series S machines the location

is not divided.

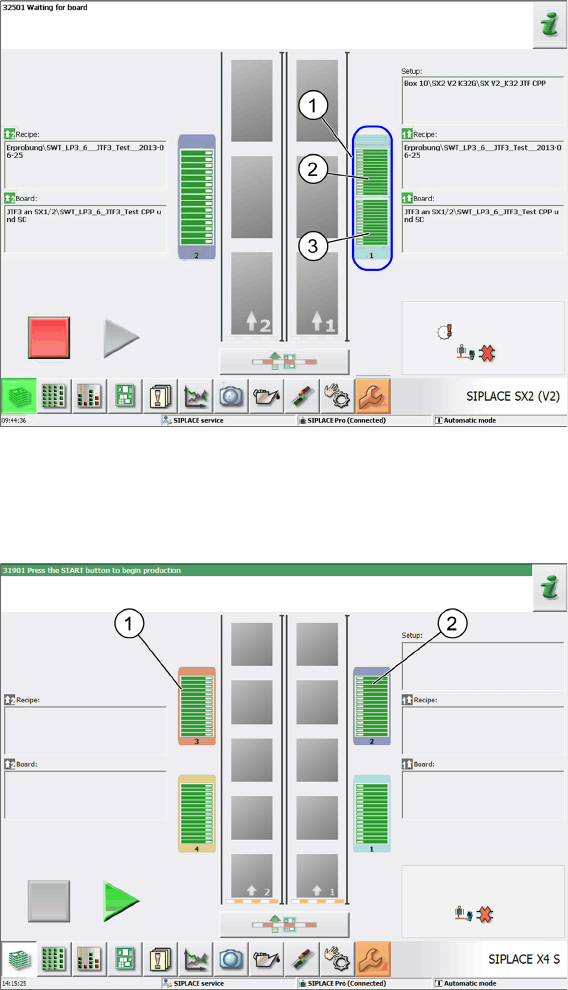

Location view - SIPLACE SX2 (V2) as example

1. Location 1 – two areas

2. Area for tapeless feeders

3. Area for SIPLACE JTF feeders

Example location view - example SIPLACE X4 S

1. Location 3

2. Location 2
