Setting up and Commissioning

Overview of SIPLACE JTF in SIPLACE X4i S - Configuration and Restrictions

JEDEC Tray Feeder 117

4.2

4.2 Overview of SIPLACE JTF in SIPLACE X4i S - Configuration and Restrictions

Overview of SIPLACE JTF in SIPLACE X4i S - Configuration and

Restrictions

The following configurations are possible for the SIPLACE X4i S with a SIPLACE JTF-S or SIPLACE

JTF-M and Smart Pin Support:

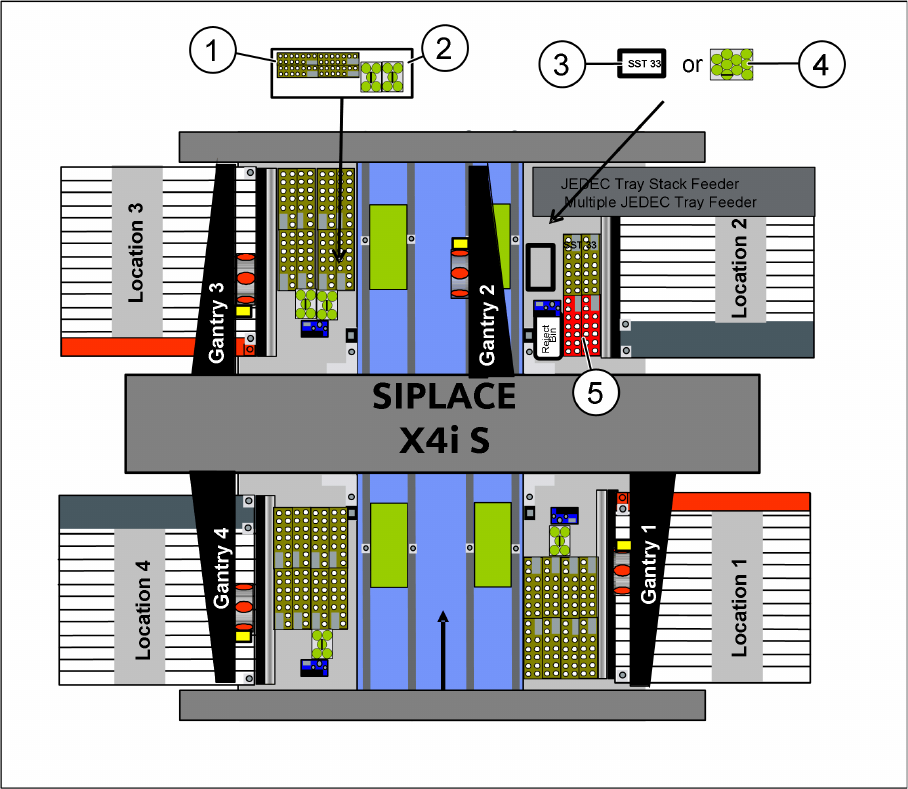

Configuration 1:

At location 3 you can use a second nozzle changer row (1) or two W5 magazines (2). However, a sta-

tionary camera is not possible.

At location 2 you can use a stationary camera or a Q10 magazine but only two nozzle changers (5).

Setting up and Commissioning

Overview of SIPLACE JTF in SIPLACE X4i S - Configuration and Restrictions

118 JEDEC Tray Feeder

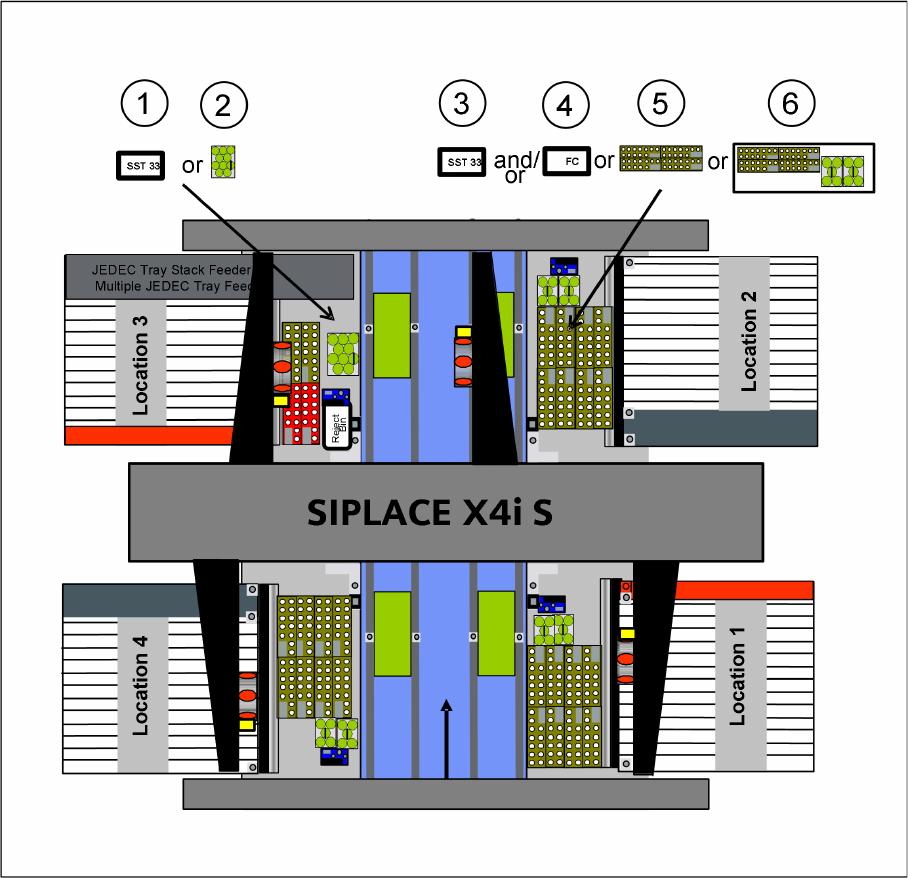

Configuration 2:

At location 3 you can use a stationary camera (1) or a Q10 magazine (2) and up to two nozzle changers

but no further stationary camera.

At location 2 you can either use a stationary camera (3), (4) or a W5 magazine or a second nozzle chang-

er row (5) in combination with two W5 magazines (6).

Setting up and Commissioning

4.3.1 Starting Situation Retrofitting in the SIPLACE X-Series S

JEDEC Tray Feeder 119

4.3

4.3 Retrofitting in the SIPLACE X-Series S

Retrofitting in the SIPLACE X-Series S

To retrofit a SIPLACE JTF-S, SIPLACE JTF-M in a SIPLACE X-Series S machine, you need to perform

the following steps.:

▪ "4.3.2 Removing the Cover" [ ➙ 121]

▪ "4.3.3 Removing the COT insert" [ ➙ 122]

▪ "4.3.4 Installation Position of the Spacer Plates for Reject Boxes, Stationary Camera and Q10 Mag-

azine at Locations 2 and 3" [ ➙ 123]

▪ "4.3.5 Installing the Mounting Plate for the Reject Box" [ ➙ 126]

▪ "4.3.7 Installing the Q10 Magazine (Option)" [ ➙ 129]

▪ "4.3.8 Installing the Manual Table" [ ➙ 130]

▪ "4.3.9 Connecting Cables" [ ➙ 135]

4.3.1

4.3.1 Starting Situation

Starting Situation

To use a SIPLACE JTF-S, SIPLACE JTF-M, you must have installed the "Table loc jedec tray feeder X-

Series S" [166652] location 3 and the "Table loc2 jedec tray feeder X-Series S" [166651] at location 2.

The COT insert must be removed as a prerequisite.

4.3.1.1

4.3.1.1 Parts List

Parts List

Table loc jedec tray feeder X-Series S [166652]

Menge / Einheit Name Artikelnummern

1 Sensor assy X-series S JTF table 03107486-xx

4 ISO 4762 - M 6 x 70-A2-70 03083223-xx

2 ISO 4762 - M 4 x 6-A2-70 03042550-xx

2 Spacer plate f. reject box 03104724-xx

7 Dummyfeeder X8 03012733-xx

1,8 Plastic tubing PUN-6x1-BL 03038629-xx

0,35 Plastic tubing PUN-4-x075-BL 03038630-xx

1 WASTE CONTAINER 530x650x200 mm cm-

pl.

03088978-xx

1 TAPE REEL CONTAINER MT 40 03082711-xx

0,9 Plastic tubing PUN-4-x075-BL 03038630-xx

1 QSY-6 Y-Steckverbindung 03014048-xx

1 Piping of nozzle station / with valve 03051467-xx

3 MB Befestigungssockel MB4A 00316575-xx

7 Cable tie w=3.6mm l=140mm TY 24M 00805141-xx

1 Reject box w/ nozzle station M3 03107481-xx

1 Holder reject box 03104561-xx

1 Reject box small cpl. 03106818-xx

1 Reject box large cpl. 03106815-xx

1 Support f. nozzle reject device 03104731-xx

3 Shim f. nozzle reject device 03104733-xx

1 Nozzle station CPx cpl. / SX4a f JTF3 M 03106821-xx

2 ISO 7046-2-M3 x 6-A2-70-H 03023238-xx

1 Holder reject box 03106722-xx

3 ISO 10642 - M5x12-A2-70 03082833-xx

3 ISO 4762 - M 6 x 25-A2-70 03042575-xx
