Module Technical Data Overview of the Modules 3.2.3 Adapter 112 JEDEC Tray Feeder 3.2.3 3 . 2 . 3 A d a p t e r Adapter 1. EEPROM 2. Adapter bo ard 30 V 1. Adapter for SIPLACE JTF-S, SIPLACE JTF-M ▪ Adapt er for SIPLACE …

Module Technical Data

3.2.2 SIPLACE JTF-S [166670] Overview of the Modules

JEDEC Tray Feeder 111

1. Manual operation / Manual panel

2. Loading direction for empty JEDEC trays

3. Tray pick position

4. Feeder control (back)

5. Tray switch thick/thin

6. Tray lift

Module Technical Data

Overview of the Modules 3.2.3 Adapter

112 JEDEC Tray Feeder

3.2.3

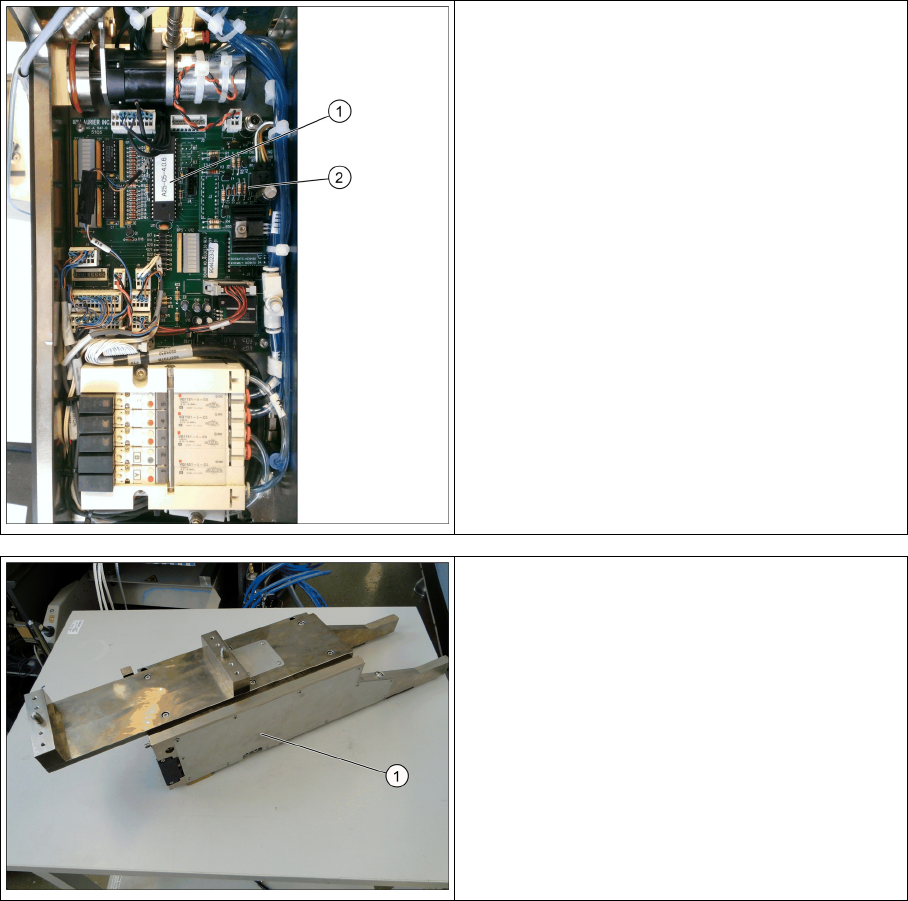

3.2.3 Adapter

Adapter

1. EEPROM

2. Adapter board 30 V

1. Adapter for SIPLACE JTF-S, SIPLACE JTF-M

▪ Adapter for SIPLACE JTF-M [03110216-xx]

▪ Adapter for SIPLACE JTF-S [03110552-xx]

The adapters are distinguished by their eSW.

Setting up and Commissioning

JEDEC Tray Feeder 113

4 Setting up and Commissioning

Setting up and Commissioning

You need to retrofit a manual table in order to operate a SIPLACE JTF-M or SIPLACE JTF-S with a

SIPLACE X-Series S. See also "4.3 Retrofitting in the SIPLACE X-Series S" [ ➙ 119].

If this table is already present, ignore this chapter and continue with the chapter "4.4 Installation"

[ ➙ 135].

Necessary Components

Components Order number

SIPLACE JTF-S 166670

SIPLACE JTF-M 166671

Magazine 18 for JTF-M 03110217S01

Magazine 14 f. JTF-M 03110218S01

Barcode Sticker JTF-M Magazine 14 166662

Barcode sticker JTF-M magazine 18 166663

X-Serie S JTF table for location 2 166651

X-Serie S JTF table for location 3 166652
