Operational Safety ESD Guidelines 2.4.5 Dispatching ESD Modules 106 JEDEC Tray Feeder
Operational Safety
2.4.4 Measurements and Modifications to ESD Modules ESD Guidelines
JEDEC Tray Feeder 105
Always discharge yourself before you touch an electronic module. To do this, simply touch a conductive
and earthed object immediately before you touch the module (such as unpainted parts of a switch cab-
inet, a water pipe, etc.).
Do not allow modules with chargeable and highly insulating materials to touch one another, e.g. plastic
films, insulating table surfaces or items of clothing made from synthetic fibers.
Always place the modules on a conductive surface (table with an ESD coating, conductive ESD foam,
ESD bag or container).
Do not bring modules near visual display units, monitors or televisions. Keep them at least 10 cm away
from the screen.
2.4.4
2.4.4 Measurements and Modifications to ESD Modules
Measurements and Modifications to ESD Modules
Measurements of the assemblies may only be taken if
▪ The measuring device has been grounded (e.g. via protective conductor) or
▪ The measuring head of the potential-free measuring device has been briefly discharged before
measurement (e.g. touching blank metal control unit housing).
► Always use an earthed soldering iron if you carry out any soldering work.
2.4.5
2.4.5 Dispatching ESD Modules
Dispatching ESD Modules
► Always store modules and components in conductive packaging (e.g. metallized plastic bags or met-
al sleeves) and dispatch them in conductive packaging.
► If the packaging is not conductive, place the modules in a conductive envelope before packaging.
Use conductive foam rubber, ESD bags, domestic aluminum foil or paper, for example. NEVER use
plastic bags or film.
► If the module has integral batteries, ensure that the conductive packaging does not touch or short-
circuit the battery terminals and, if necessary, first cover the terminals with insulating tape or mate-
rial.
Operational Safety
ESD Guidelines 2.4.5 Dispatching ESD Modules
106 JEDEC Tray Feeder
Module Technical Data
Technical Data
JEDEC Tray Feeder 107
3
3 Module Technical Data
Module Technical Data
3.1
3.1 Technical Data
Technical Data

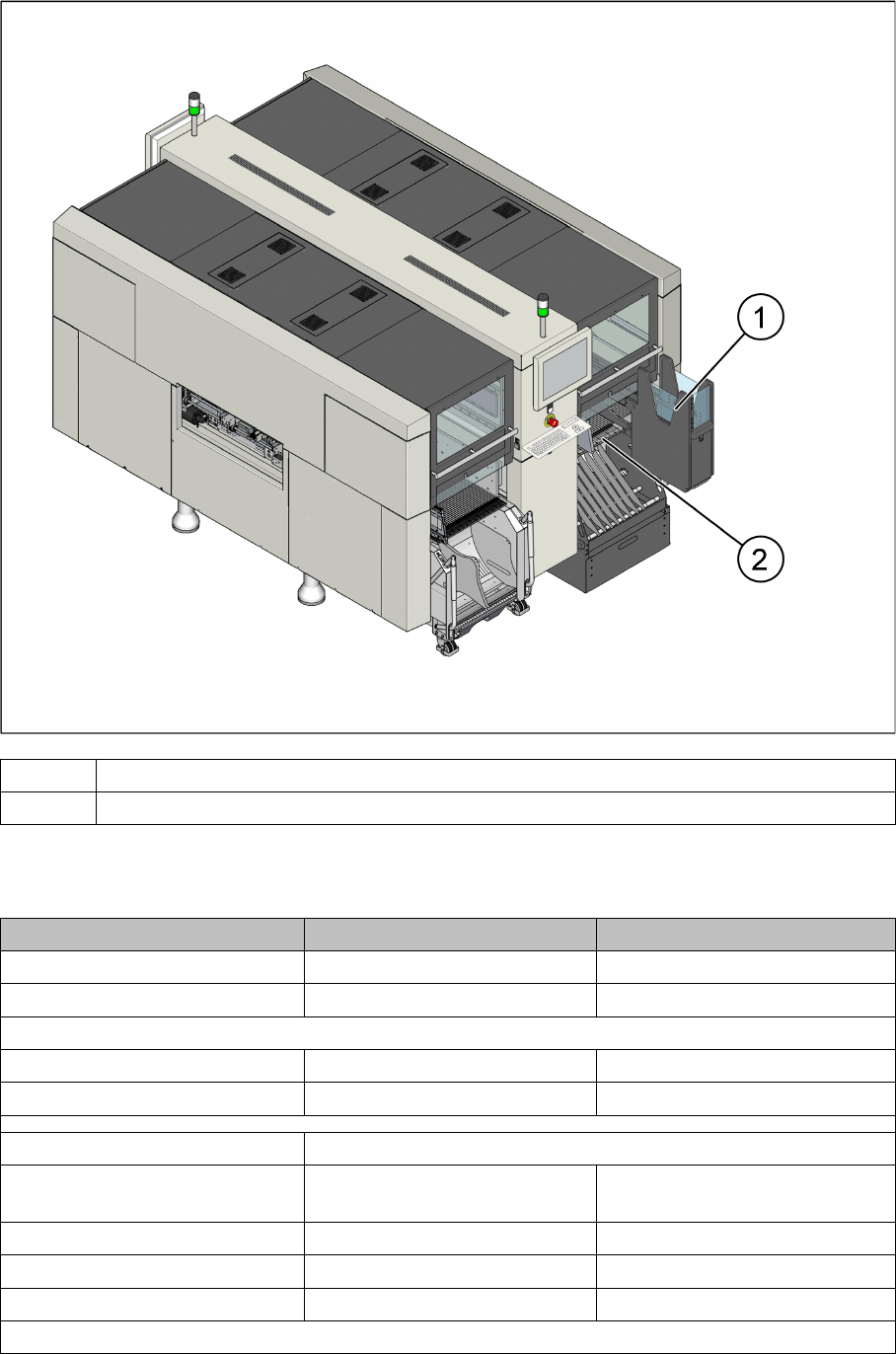

1 JEDEC tray feeder
2 Fixed table
SIPLACE JTF-S [166670] SIPLACE JTF-M [166671]
Width 162 mm 177 mm
Height 587 mm 587 mm
Storage capacity
Waffle pack tray, thin JEDEC waffle pack tray 30 JEDEC waffle pack tray 18
Waffle pack tray, thick JEDEC waffle pack tray 20 JEDEC waffle pack tray 14
Weight ~ 25.7 Kg (50 lbs.) – depends on application
Waffle pack tray changeover
times
< 5 seconds (depending on ap-
plication)
--
Rack n after n+1 3.5 seconds
Rack 1 after 18 -- 10 seconds
Rack 18 after 1 -- 8.9 seconds
Cassette
