Setting up and Commissioning Installation 4.4.2 JEDEC TRAY Feeder Carrying Position 138 JEDEC Tray Feeder 4.4.2 4 . 4 . 2 J E D E C T R A Y F e e d e r C a r r y in g P o s it io n JEDEC TRAY Feeder Carrying Position ► T…
Setting up and Commissioning
4.4.1 Assembling the X Adapter for JEDEC Tray Feeder Installation
JEDEC Tray Feeder 137
► Lock the adapter (2) using the locking screw (1).
Setting up and Commissioning
Installation 4.4.2 JEDEC TRAY Feeder Carrying Position
138 JEDEC Tray Feeder
4.4.2
4.4.2 JEDEC TRAY Feeder Carrying Position
JEDEC TRAY Feeder Carrying Position

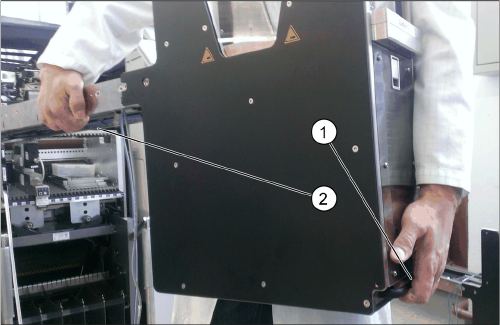

► Take hold of the JEDEC tray feeder by its the side.
► Use the handle (1) with one hand.
► Support the JTF with the other hand at the outer rail
of the supply unit (2).
Setting up and Commissioning
4.4.3 Inserting the JEDEC Tray Feeder Installation
JEDEC Tray Feeder 139
4.4.3
4.4.3 Inserting the JEDEC Tray Feeder
Inserting the JEDEC Tray Feeder
CAUTION!
Heavy machine part:
You might need to enlist the help of a second person to
prevent this.
CAUTION!
Damage to light barriers:
When setting up the JEDEC tray feeder on the adapter,
ensure that the light barriers of the JTF supply unit are not
damaged by the feeder fixation rail!

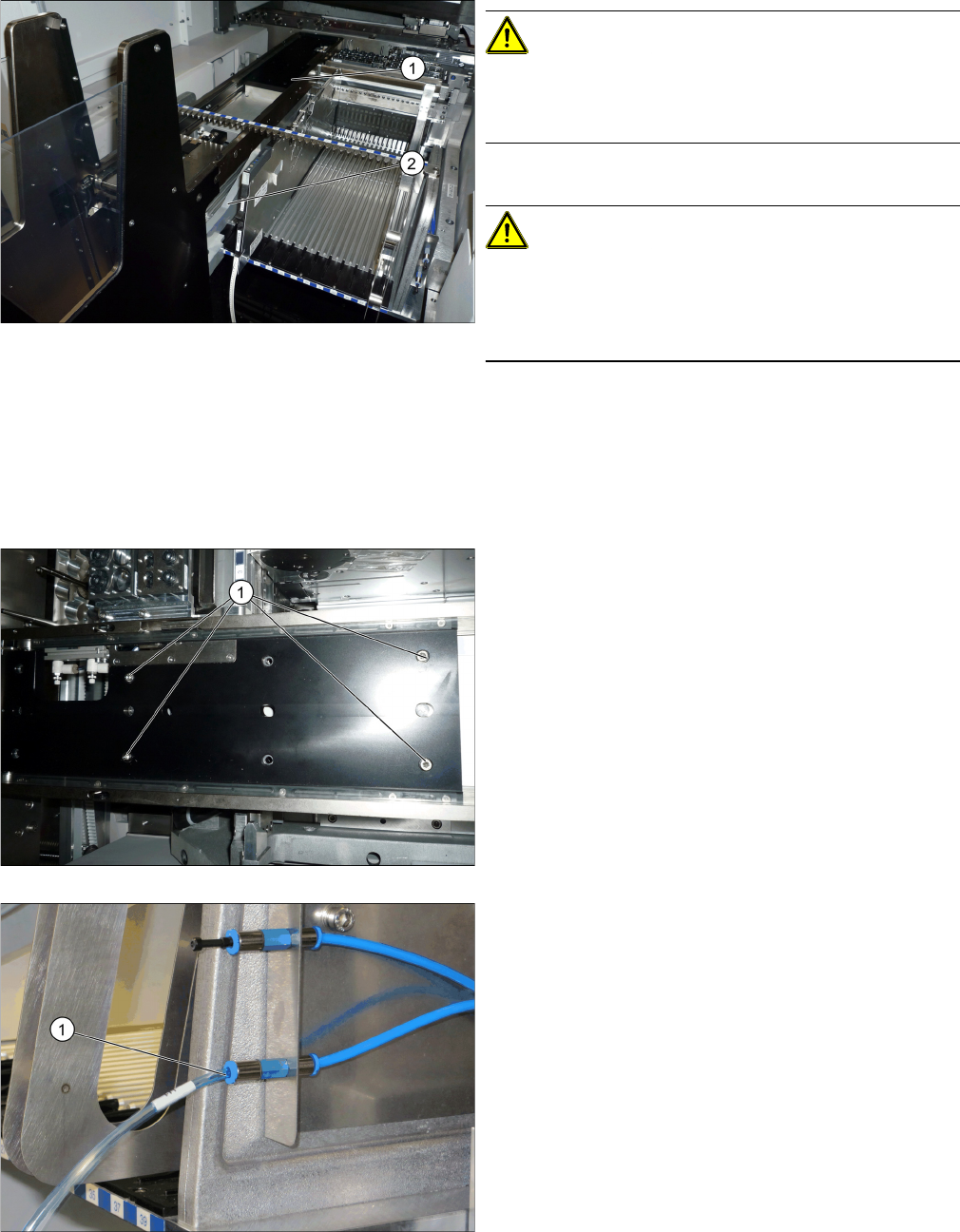

► Lift the JEDEC tray feeder onto the adapter (2).
► Slide it forward on the adapter below the feeder fixa-
tion rail.
► Slide it forwards into the recess of the manual table
until you hear it engage (1).
► Fix the JEDEC tray feeder using the four hexagon
socket-head screws (1).
► Connect the pneumatic hose (1).
