Tasks for SIPLACE JTF-S, SIPLACE JTF-M
5.3.5 Configuration of the Setup – Setup Tree View Configuration of SIPLACE JTF-S, SIPLACE JTF-M in SIPLACE Pro
JEDEC Tray Feeder 161
5.3.5
5.3.5 Configuration of the Setup – Setup Tree View
Configuration of the Setup – Setup Tree View
5.3.5.1
5.3.5.1 Head Configurations for SIPLACE SX1, SX2, SIPLACE X-Series S and SIPLACE X4i S
Head Configurations for SIPLACE SX1, SX2, SIPLACE X-Series S and SIPLACE X4i S
The SIPLACE JTF-S, SIPLACE JTF-M feeders may only be set up on gantries with the following heads:
At both locations, location 1 and 2 for SIPLACE SX1 and SIPLACE SX2, location 2 and 3 for SIPLACE
X-Series S and SIPLACE X4i S:
1. CPP_H (no CPP_L allowed)
2. Twin VHF
3. HFH
You can perform the table configuration if one of these heads is configured.
5.3.5.2
5.3.5.2 Table Configuration
Table Configuration
After you have configured one of the heads mentioned in "5.3.5.1 Head Configurations for SIPLACE
SX1, SX2, SIPLACE X-Series S and SIPLACE X4i S" [ ➙ 161], select the necessary table type that is
the prerequisite for setting up a JTF-S, JTF-M.
The table types are:
▪ SIPLACE SX1 and SIPLACE SX2 : MTF table 60 X
▪ SIPLACE X-Series S : MTF table 40 X

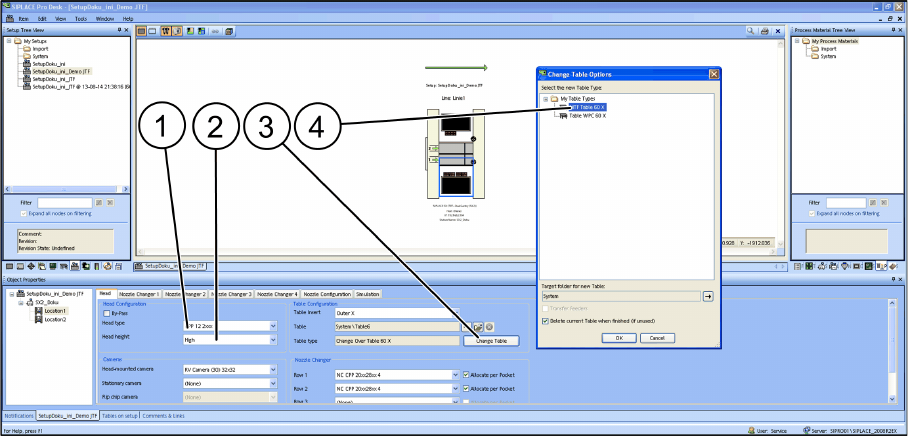

SIPLACE Pro - Example with table configurations on SIPLACE SX1/SX2
1. Head configuration: CPP 12 2xxx (as example) (1)
► Head height: Select HIGH (2) for the CPP 12 2xxx.
1. Table configuration Change Table (3)
► Confirm each selected table type (4)and confirm with OK.
After the relevant table type has been selected, the options in the Camera and Nozzle Changer fields
are automatically disabled. For design reasons, these configuration options are no longer available after
the table type has been selected.
All cameras and nozzle changer configurations that are selectable are displayed as active.
Tasks for SIPLACE JTF-S, SIPLACE JTF-M
Configuration of SIPLACE JTF-S, SIPLACE JTF-M in SIPLACE Pro 5.3.5 Configuration of the Setup – Setup Tree View
162 JEDEC Tray Feeder
5.3.5.3
5.3.5.3 Configuring the SIPLACE JTF-S, SIPLACE JTF-M on the Table
Configuring the SIPLACE JTF-S, SIPLACE JTF-M on the Table

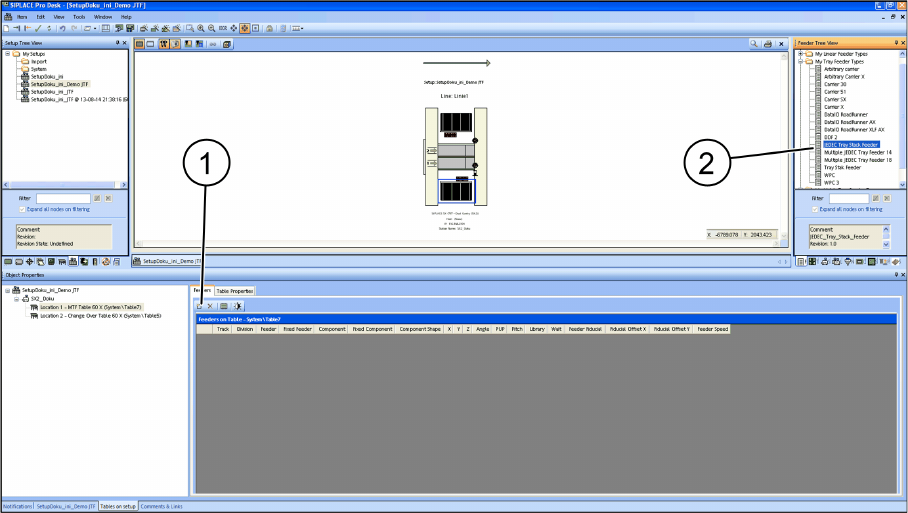

There are two ways for setting up the SIPLACE JTF-S, SIPLACE JTF-M on the table:
▪ Manually dragging the SIPLACE JTF-S, SIPLACE JTF-M onto the table (2).
▪ By selecting the Insert a new item into the collection menu option (1)
The SIPLACE JTF-S, SIPLACE JTF-M feeder is automatically configured on the track that is permitted
for the machine.
This track cannot be changed.
▪ SIPLACE SX1/2 tracks 11 - 26
▪ SIPLACE X-Series S track 1 – 15 at location 3
▪ SIPLACE X-Series S track 27 – 40 at location 2
Tasks for SIPLACE JTF-S, SIPLACE JTF-M
5.3.5 Configuration of the Setup – Setup Tree View Configuration of SIPLACE JTF-S, SIPLACE JTF-M in SIPLACE Pro
JEDEC Tray Feeder 163

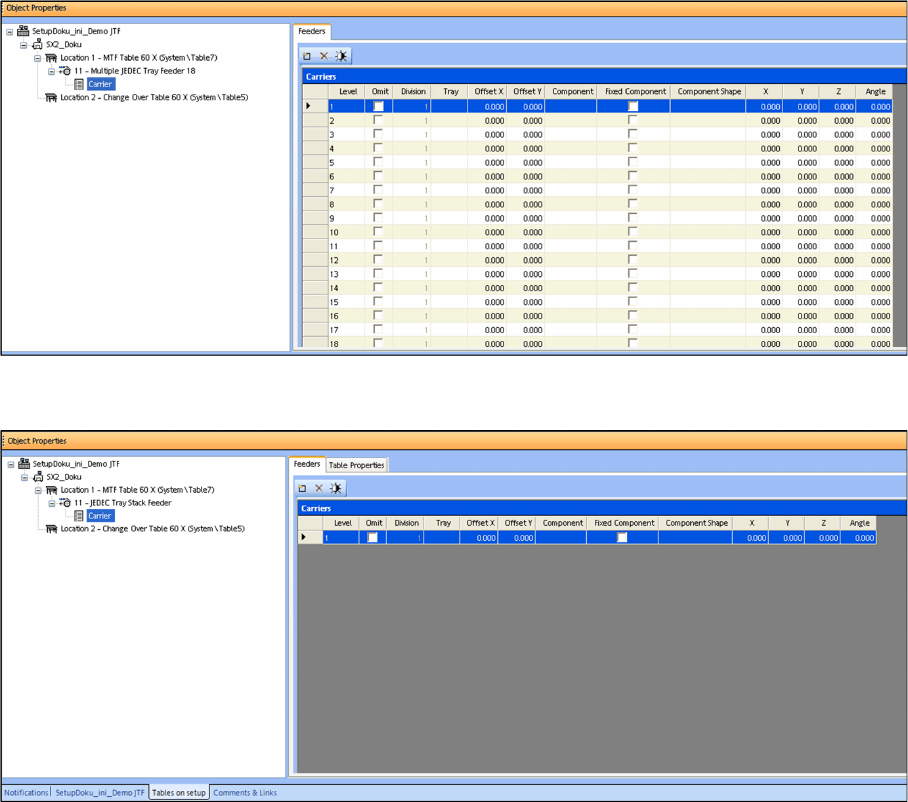

SIPLACE JTF-S, SIPLACE JTF-M Carrier Level
If a Multiple JEDEC tray feeder 18 (SIPLACE JTF-M for thin trays) was selected, "Carrier" lists the num-
ber of trays (18) as well as their settings and their component occupancy (per tray).
Only 14 trays are displayed for a Multiple JEDEC tray feeder 14 (SIPLACE JTF-M for thick trays).
For a JEDEC tray stack feeder (SIPLACE JTF-S), Carrier shows only one tray, as all trays that are set
up in the JEDEC tray stack feeder must have the same components.
