Setting up and Commissioning
Retrofitting in the SIPLACE X-Series S 4.3.8 Installing the Manual Table
130 JEDEC Tray Feeder
4.3.8
4.3.8 Installing the Manual Table
Installing the Manual Table
Before installing the manual table, the tape duct and the cutting device must be removed.
► Fix the Q10 magazine (1) to the spacer plate
[03104724-xx] (2) using the three screws (3).
NOTICE
Cables and hoses
► Before installing the table ensure to route all cables and hoses for the subsequent connec-
tion.
► Guide the pneumatic hose (1) out of the machine past
the rear side of the nozzle changer.
Ensure that the hose cannot be squeezed.
CAUTION
Back part, adjustable table fiducial
Do not operate the machine without the back part of the manual table or without the adjustable
table fiducial.
Setting up and Commissioning
4.3.8 Installing the Manual Table Retrofitting in the SIPLACE X-Series S
JEDEC Tray Feeder 131
4.3.8.1
4.3.8.1 Installation Positions of the Manual Table (Table Positions)
Installation Positions of the Manual Table (Table Positions)
4.3.8.2
4.3.8.2 Installing the Mounting Frame
Installing the Mounting Frame
Overview
The following installation positions for the manual table
are possible on SIPLACE X-Series S machines:
1. Installation position 2 (SIPLACE X4i S)
2. Installation position 3 (SIPLACE X2 S, X3 S, X4 S)

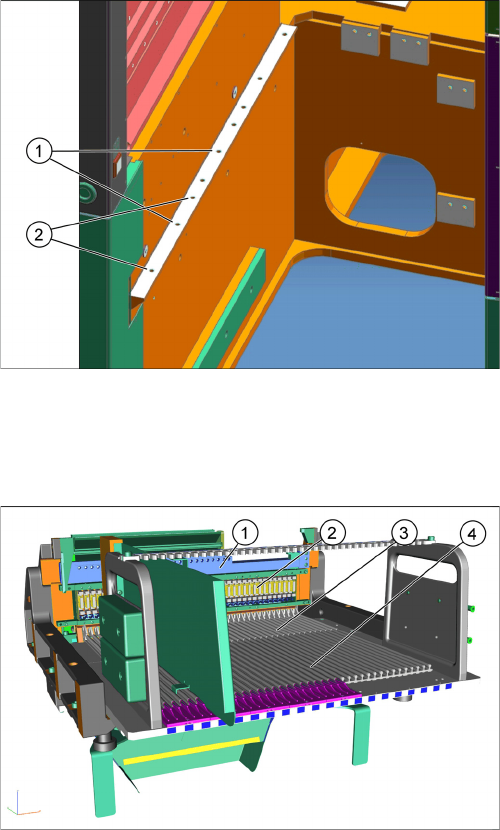

1. Centering bar
2. FCU
3. Front part
4. Back part
Setting up and Commissioning
Retrofitting in the SIPLACE X-Series S 4.3.8 Installing the Manual Table
132 JEDEC Tray Feeder
Installation
► Insert the mounting frame (1) of the manual table.
► Fix the mounting frame of the manual table to the fix-
ation points indicated in chapter "4.3.8.1 Installation
Positions of the Manual Table (Table Positions)"
[ ➙ 131]. Use the four M6x25 screws [03042575-xx]
(2).
WARNING
Unstable frame
Dismantling the front section can make the frame unstable.
➢ Do not dismantle the front section.
► Do not dismantle the front section of the manual table.
► Pull the hose (1) towards the front.
► Place the back part (1) onto the frame (2) so that it is
aligned with the front part.
