Setting up and Commissioning Overview of SIPLACE JTF in SIPLACE X-Series S - Configuration a nd Restr ictions 116 JEDEC Tray Feeder Configuration SIPLACE X2 S and SIPLACE X3 S At location 2 you can either use a stationar…

Setting up and Commissioning

Overview of SIPLACE JTF in SIPLACE X-Series S - Configuration and Restric-

JEDEC Tray Feeder 115

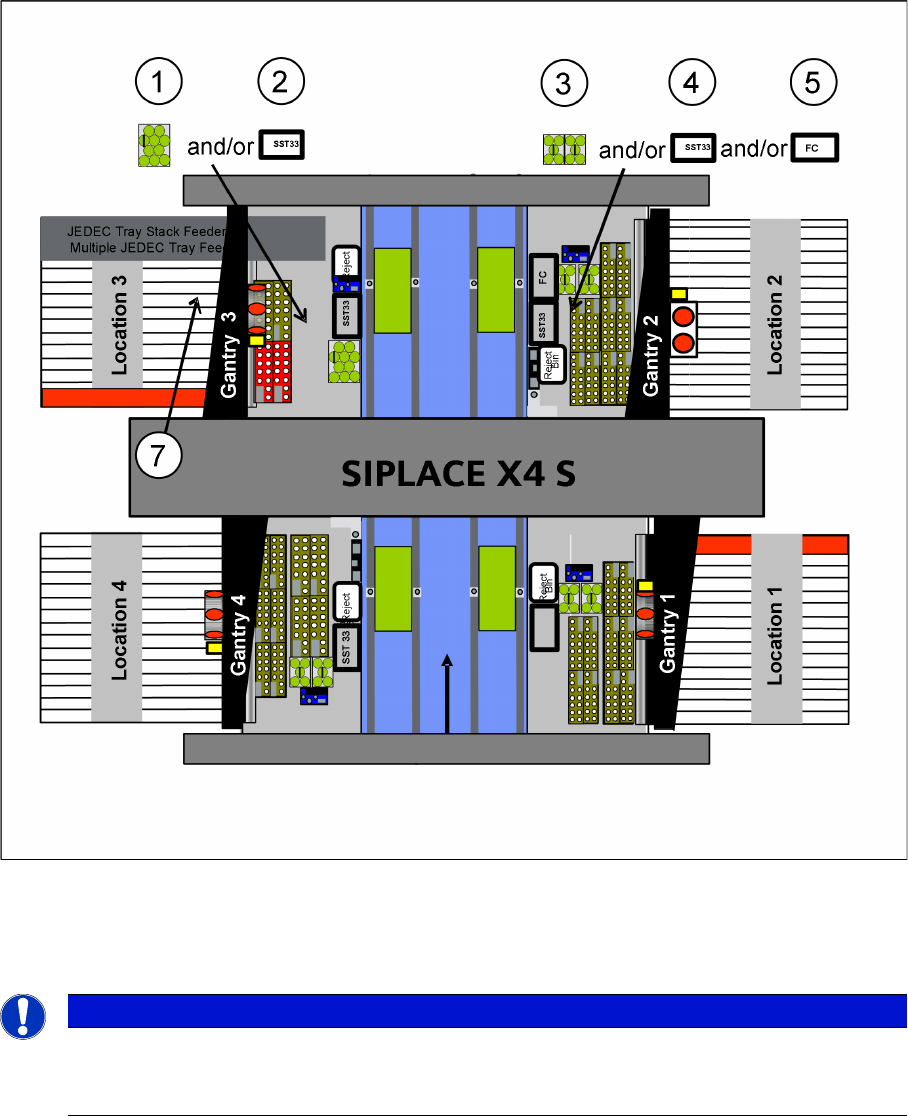

Configuration 2:

At location 2 you can use stationary cameras (4), (5) in combination with a W5 magazine (3) or a second

nozzle changer row or, alternatively, two W5 magazines with stationary cameras. (X-Serie S JTF table

for location 2. [166651] (7))

At location 2 you can use a Q10 magazine and a stationary IC camera. An FC camera is not possible.

NOTICE

Nozzle changer

Depending on the head type, the first nozzle changer row might need to be exchanged for a

short nozzle changer.

Setting up and Commissioning

Overview of SIPLACE JTF in SIPLACE X-Series S - Configuration and Restrictions

116 JEDEC Tray Feeder

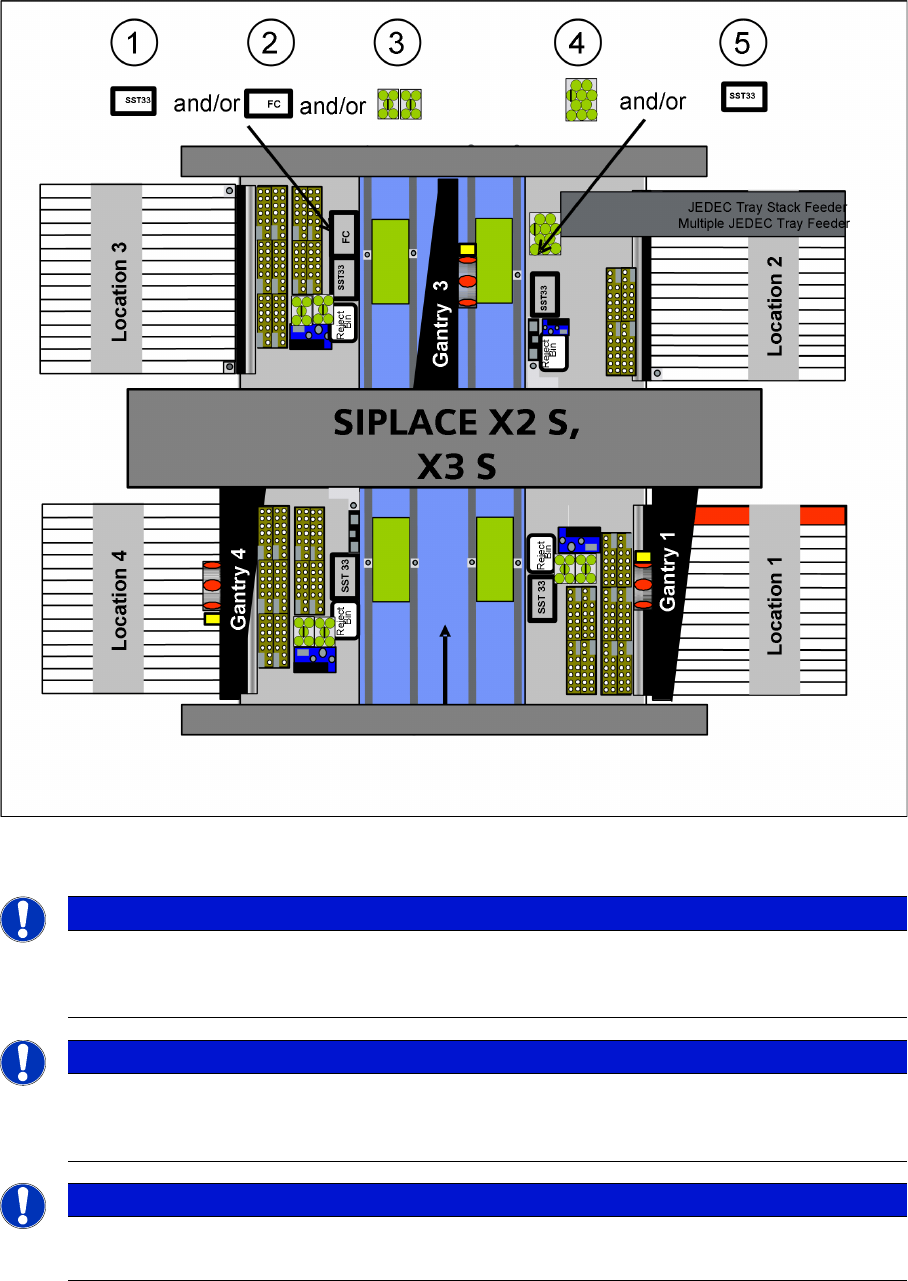

Configuration SIPLACE X2 S and SIPLACE X3 S

At location 2 you can either use a stationary camera (5) in combination with a Q10 magazine (4) or just

use the Q10 magazine alone.

NOTICE

Location

In SIPLACE X 3S, SIPLACE X2S machines, a SIPLACE JTF-S or SIPLACE JTF-M can only

be installed at location 2.

NOTICE

Nozzle changer

Depending on the head type, the first nozzle changer row might need to be exchanged for a

short nozzle changer.

NOTICE

SPS

An SPS is not possible in a SIPLACE X2 S machine!

Setting up and Commissioning

Overview of SIPLACE JTF in SIPLACE X4i S - Configuration and Restrictions

JEDEC Tray Feeder 117

4.2

4.2 Overview of SIPLACE JTF in SIPLACE X4i S - Configuration and Restrictions

Overview of SIPLACE JTF in SIPLACE X4i S - Configuration and

Restrictions

The following configurations are possible for the SIPLACE X4i S with a SIPLACE JTF-S or SIPLACE

JTF-M and Smart Pin Support:

Configuration 1:

At location 3 you can use a second nozzle changer row (1) or two W5 magazines (2). However, a sta-

tionary camera is not possible.

At location 2 you can use a stationary camera or a Q10 magazine but only two nozzle changers (5).
