Setting up and Commissioning 4.3.2 Removing the Cover Retrofitting in the SIPLACE X-Series S JEDEC Tray Feeder 121 4.3.2 4 . 3 . 2 R e m o v in g t h e C o v e r Removing the Cover 1 Fixed table w/ JTF3 M2 03103 961-xx 1…
Setting up and Commissioning
Retrofitting in the SIPLACE X-Series S 4.3.1 Starting Situation
120 JEDEC Tray Feeder
Table loc2 jedec tray feeder X-Series S [166651]
2 Plug QSC-4H 00330249-xx
1 Fixed table w/ JTF3 M3 03104532-xx
1 Waste slide welded complete 03067460-xx
1 tape cutter pneum. SIPLACE X-Series 03066690-xx
1 FEEDER SEALING /X-SERIES 03023777-xx
1 X-FCU V2, X-series 03096377-xx
1 subsequen feeder unlock device 03107051-xx
1 Option reject sensor JTF 03104739-xx
1 protection plate JTF3 03108706-xx
1 Empty tape duct cpl. M3 03104547-xx
Menge / Einheit Name Artikelnummer
1 Sensor assy X-series S JTF table 03107486-xx
4 ISO 4762 - M 6 x 70-A2-70 03083223-xx
2 ISO 4762 - M 4 x 6-A2-70 03042550-xx
2 Spacer plate f. reject box 03104724-xx
7 Dummyfeeder X8 03012733-xx
1,8 Plastic tubing PUN-6x1-BL 03038629-xx
0,35 Plastic tubing PUN-4-x075-BL 03038630-xx
1 WASTE CONTAINER 530x650x200 mm cm-
pl.
03088978-xx
1 TAPE REEL CONTAINER MT 40 03082711-xx
0,9 Plastic tubing PUN-4-x075-BL 03038630-xx
1 QSY-6 Y-Steckverbindung 03014048-xx
1 Piping of nozzle station / with valve 03051467-xx
3 MB Befestigungssockel MB4A 00316575-xx
7 Cable tie w=3.6mm l=140mm TY 24M 00805141-xx
1 Reject box w/ nozzle station M2 03104742-xx
1 Holder reject box 03104561-xx
1 Reject box small cpl. 03106818-xx
1 Reject box large cpl. 03106815-xx
1 Support f. nozzle reject device 03104731-xx
3 Shim f. nozzle reject device 03104733-xx
1 Nozzle station CPx cpl. / SX4a f JTF3 M 03106821-xx
2 ISO 7046-2-M3 x 6-A2-70-H 03023238-xx
1 Holder reject box 03106722-xx
3 ISO 10642 - M5x12-A2-70 03082833-xx
3 ISO 4762 - M 6 x 25-A2-70 03042575-xx
1 ISO 4762 - M 5 x 30-A2-70 03042565-xx
1 Right support JTF X-series S 03107377-xx
1 Block support holder 03107632-xx
2 adjustment plate 03112707-xx
Menge / Einheit Name Artikelnummern
Setting up and Commissioning
4.3.2 Removing the Cover Retrofitting in the SIPLACE X-Series S
JEDEC Tray Feeder 121
4.3.2
4.3.2 Removing the Cover
Removing the Cover
1 Fixed table w/ JTF3 M2 03103961-xx
1 Waste slide welded complete 03067460-xx
1 tape cutter pneum. SIPLACE X-Series 03066690-xx
1 FEEDER SEALING /X-SERIES 03023777-xx
1 X-FCU V2, X-series 03096377-xx
1 subsequen feeder unlock device 03107051-xx
1 Option reject sensor JTF 03104739-xx
1 protection plate JTF3 03108706-xx
1 Empty tape duct cpl. M2 03103926-xx
1 Frame COT insert MT 40 M2 03103962-xx
Menge / Einheit Name Artikelnummer

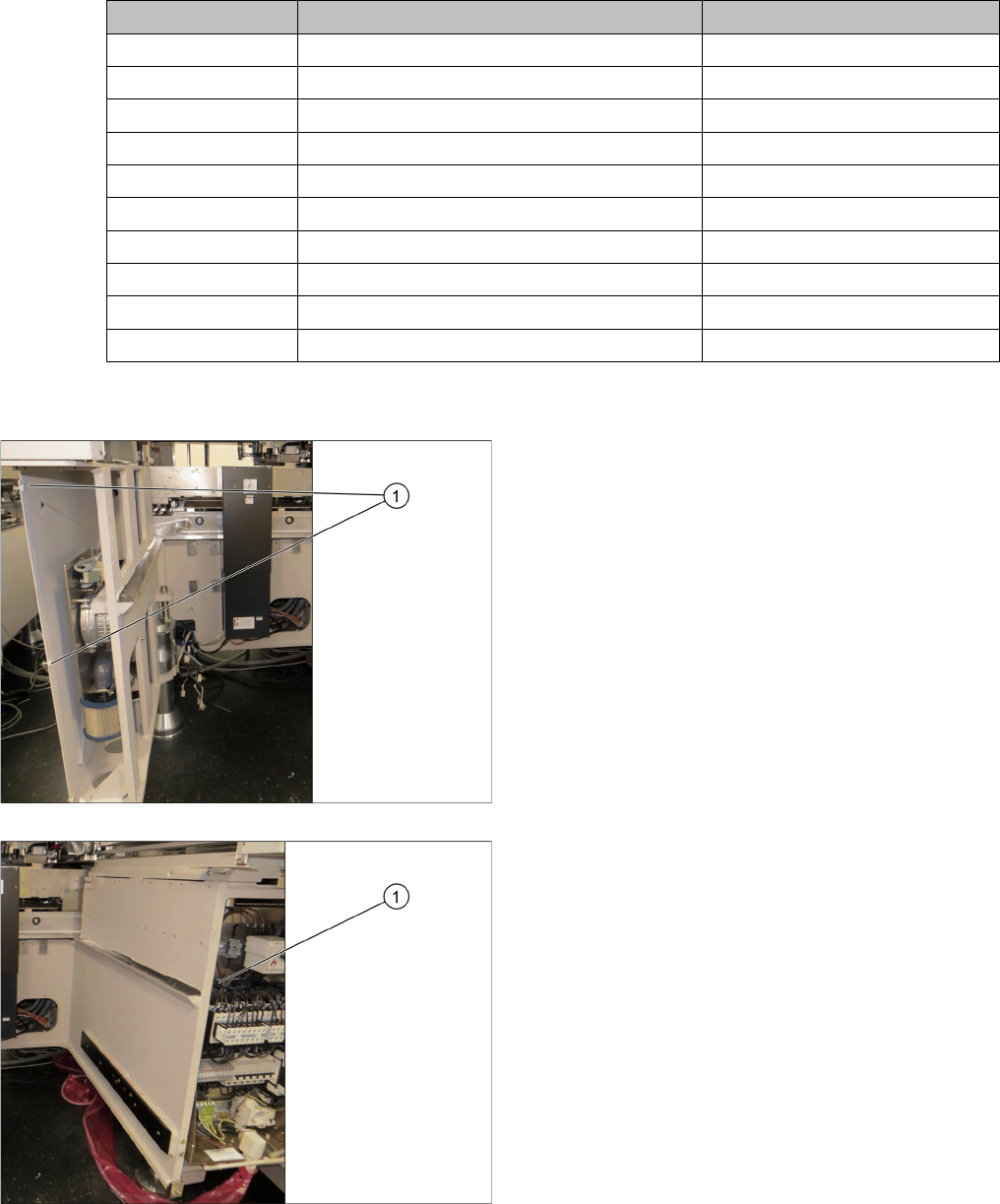

► Dismantle the side panel. Remove the four hexagon
socket screws (1).
► Loosen and remove the screws and then dismantle
the cover (1) of the power supply at location 3.
Setting up and Commissioning
Retrofitting in the SIPLACE X-Series S 4.3.3 Removing the COT insert
122 JEDEC Tray Feeder
4.3.3
4.3.3 Removing the COT insert
Removing the COT insert
The COT insert must be removed before installing the manual table.
► Dismantle the nozzle changer.
► Disconnect the COT insert from all electrical and pneumatic connections. Mark the positions of these
connections, to make clear assignment easier later on. The connection cables and hoses are located
behind the COT insert – in the space leading to the machine base (under the nozzle changer).

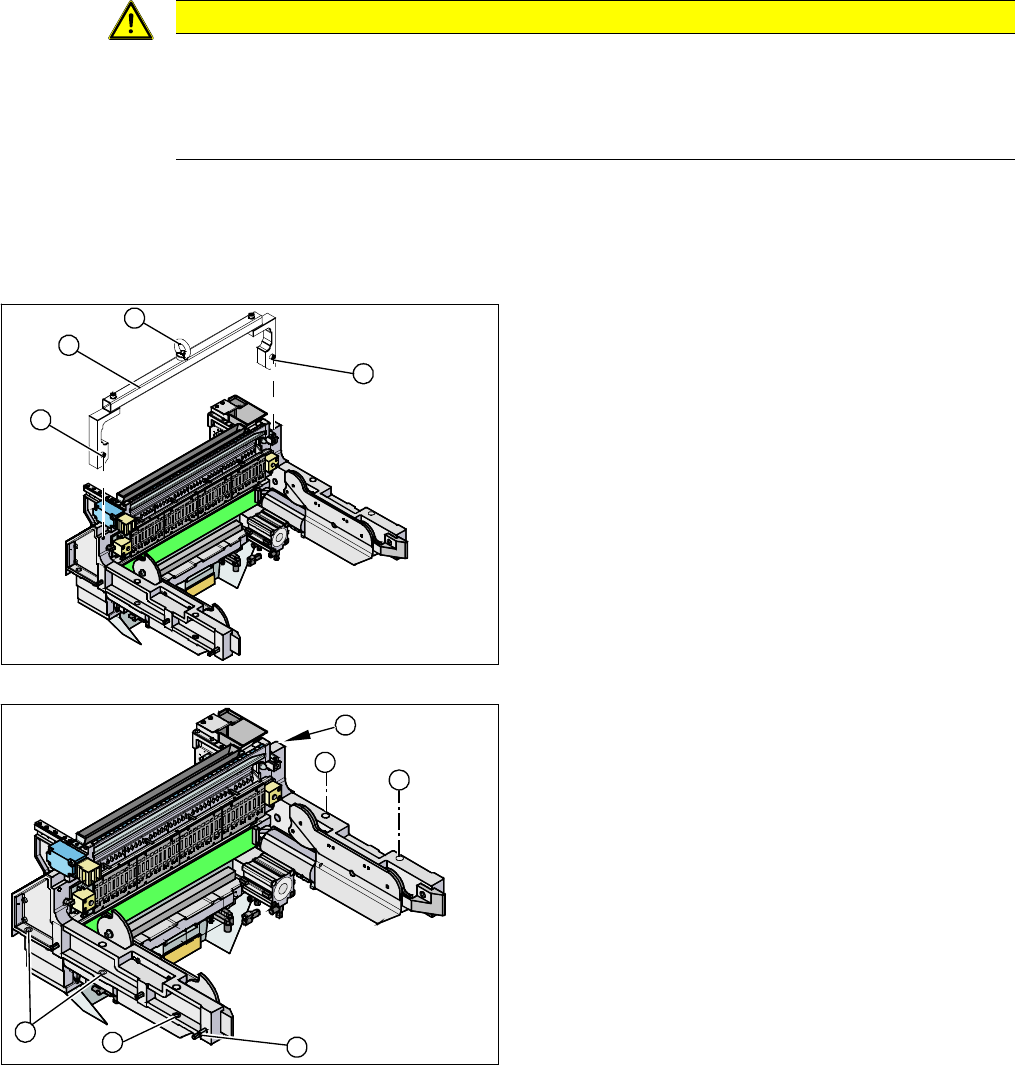

CAUTION
Heavy machine part!
Risk of injuries die to heavy weight.
➢ The COT insert is heavy.
► To lift it out, use the fit-up aid and a suitable lifting device (hand-operated crane etc.).
1. Fixtures
2. Fit-up aid
3. Eyelet
► Attach the fit-up aid (2) to the fixtures provided (1) on
the COT insert.
► Fix the lifting device to the eyelet (3) of the fit-up aid
(2).
► Loosen the screws fastening the COT insert (1).
► Lift the complete COT insert out of the machine and
place it on a suitable surface (e.g. four wooden
blocks).
► Make sure that you do not damage any valves, con-
nection cables, hoses etc.
1
1
3
2
1
1
1
1
2
1
