Module Technical Data

3.2.1 SIPLACE JTF-M Overview of the Modules

JEDEC Tray Feeder 109

3.2

3.2 Overview of the Modules

Overview of the Modules

3.2.1

3.2.1 SIPLACE JTF-M

SIPLACE JTF-M

1. Pick position

2. Tray clamp

3. Conveyor

4. Magazine

5. Feeder base

1. Button panel

2. 4 ears

3. Handle

4. Door (open)

5. Magazines

1. Forward slow down sensor

2. Return slow down sensor

Module Technical Data

Overview of the Modules 3.2.2 SIPLACE JTF-S [166670]

110 JEDEC Tray Feeder

3.2.2

3.2.2 SIPLACE JTF-S [166670]

SIPLACE JTF-S [166670]

1. Handles

2. Arrow = direction of supply

3. Locking springs 2x

4. Magazine for thin trays, 18 slots [03110217S01]

5. Magazine for thick trays, 14 slots [03110218S01]

1. Tray clamp

2. Conveyor belt

3. Return tray pusher

4. Feeder control (behind cover)

Module Technical Data

3.2.2 SIPLACE JTF-S [166670] Overview of the Modules

JEDEC Tray Feeder 111

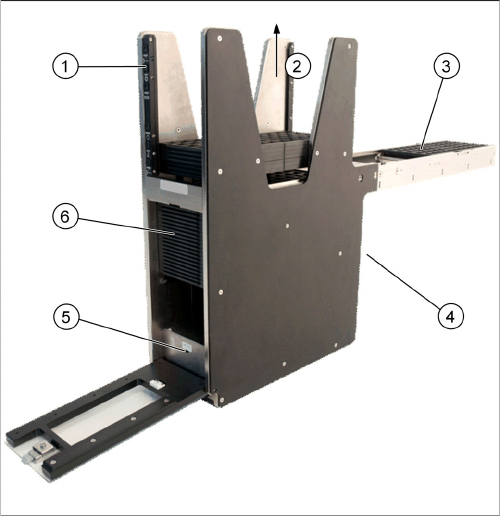

1. Manual operation / Manual panel

2. Loading direction for empty JEDEC trays

3. Tray pick position

4. Feeder control (back)

5. Tray switch thick/thin

6. Tray lift
