Tasks for SIPLACE JTF-S, SIPLACE JTF-M Task: Operating the Feeder JEDEC Tray Feeder 143 5 5 T a s k s f o r S I P L A C E J T F - S , S I P L A C E J T F - M Tasks for SIPLACE JTF-S, SIPLACE JTF-M This chapt er contains …

Setting up and Commissioning

Installation 4.4.4 Final Work:

142 JEDEC Tray Feeder

Tasks for SIPLACE JTF-S, SIPLACE JTF-M

Task: Operating the Feeder

JEDEC Tray Feeder 143

5 Tasks for SIPLACE JTF-S, SIPLACE JTF-M

Tasks for SIPLACE JTF-S, SIPLACE JTF-M

This chapter contains a number of subjects that are intended to help you during your daily work on a

SIPLACE line. For example, you are provided with preventative measures that you can take to minimize

the down time on the machine, to obtain the highest possible level of efficiency for the SIPLACE line dur-

ing production.

5.1

5.1 Task: Operating the Feeder

Task: Operating the Feeder

Loading the trays

► Place the magazine down on a stabile surface.

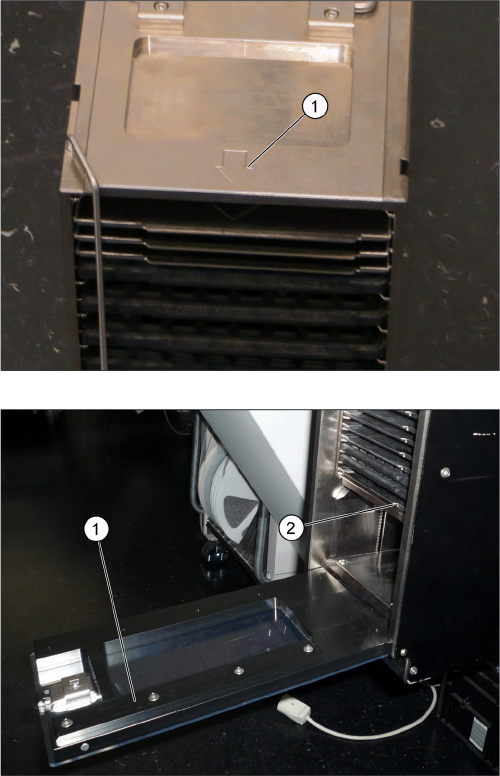

► Observe the arrow (1) on the magazine, which shows

the direction of loading for the magazine (example of

a magazine for SIPLACE JTF-M shown here).

► Observe the direction of loading for the trays and the

orientation. The encoding (1) on the door must corre-

spond to the tray orientation(2). The door can only be

closed if both correspond to one another.

Tasks for SIPLACE JTF-S, SIPLACE JTF-M

Task: Operating the Feeder

144 JEDEC Tray Feeder

► On the host system, link the components / tray code to the slot number of the magazine.

Load the magazine into the feeder base

► Make sure that the safety springs are open.

► Open the door.

► Always keep the magazine horizontal when lifting and holding.

► Load the magazine into the feeder base, following the direction of the arrow.

► Close the door.

If the changeover of individual trays is not planned for your operation, you do not need to open the rear

safety spring.

Removing the magazine

► (Let the host machine send the End-of-Lot (EOL) command to the feeders.)

► Open the door once the lift has reached the bottom.

► Grip under the magazine and pull it out until you can lift the first swivel handle on top of the magazine.

► Pull the magazine out farther, still holding it.

► Hold the magazine with one hand on each of the two swiveling handles.

► Lift it out, hold it horizontal and place it down on a stabile surface.

Removing the tray

► You can pull the trays for the slot out. If only one safety spring is open, you can also open the second

one.

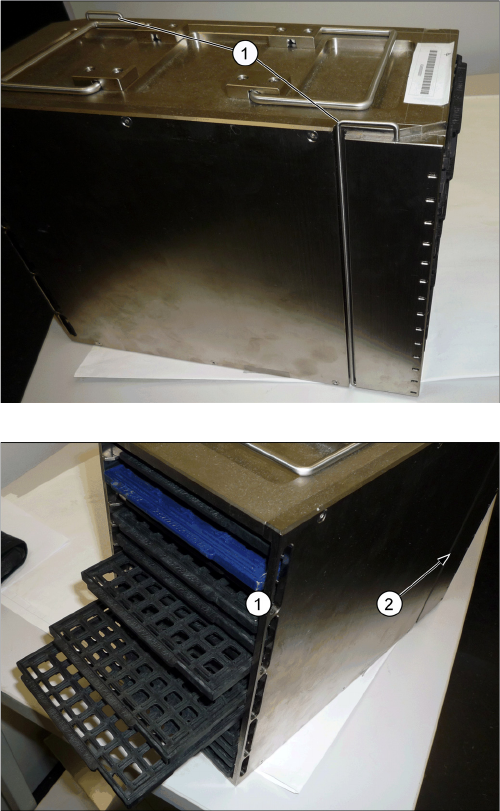

► Open the two safety springs (1), which prevent the

tray from falling out.

1. Doors

2. Direction of supply

► Load the trays. Observe the orientation while doing

so.
