2. Select empty trays: All empty trays in the setup are selected.
3. Select trays deactivated automatically: All automatically deactivated trays are selected.
4. Select trays deactivated by operator: All trays that have been manually deactivated by the operator
are selected.
5. Select trays not used by setup: All trays that are not used in the current setup are selected.
6. Select all: All trays are selected regardless of their state.
7. Deselect all: Each previous selection is discarded.
5.3
5.3 Configuration of SIPLACE JTF-S, SIPLACE JTF-M in SIPLACE Pro
Configuration of SIPLACE JTF-S, SIPLACE JTF-M in SIPLACE
Pro
SIPLACE JTF-S, SIPLACE JTF-M feeders are available from SIPLACE Pro 11.1. SIPLACE Pro versions
up to 10.x do not support this feeder family.
5.3.1
5.3.1 SIPLACE JTF-S, SIPLACE JTF-M Versions in SIPLACE Pro – Feeder Tree View
SIPLACE JTF-S, SIPLACE JTF-M Versions in SIPLACE Pro – Feeder Tree View
NOTICE
Example
The following graphics show the SIPLACE Pro 11.1 software taking the SIPLACE SX2 V2 as
example. Proceed in the same way for SIPLACE SX1 V2 machines and SIPLACE X-Series S
machines. Any differences will be explicitly indicated.

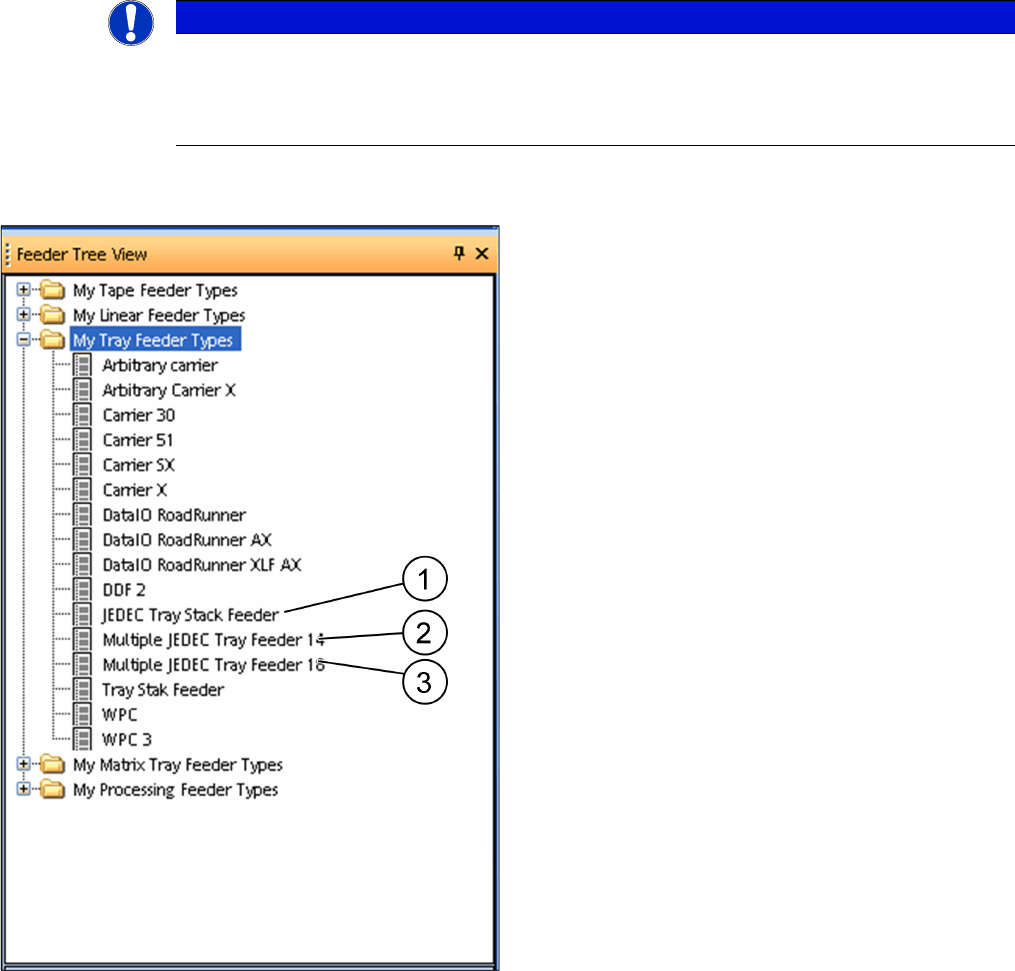

Three SIPLACE JTF feeder types can be selected in the
feeder tree view:
1. JEDEC tray stack feeder
One component type only in the whole feeder
2. Multiple JEDEC tray feeder 14
Version for 14 thick JEDEC trays d = 12.19 mm / max.
14 different component types (one type per tray)
3. Multiple JEDEC tray feeder 18
Version for 18 thick JEDEC trays d = 7.62 mm / max.
18 different component types (one type per tray)
Tasks for SIPLACE JTF-S, SIPLACE JTF-M
5.3.2 JEDEC Tray Description – Tray Tree View Configuration of SIPLACE JTF-S, SIPLACE JTF-M in SIPLACE Pro
JEDEC Tray Feeder 159
5.3.2
5.3.2 JEDEC Tray Description – Tray Tree View
JEDEC Tray Description – Tray Tree View

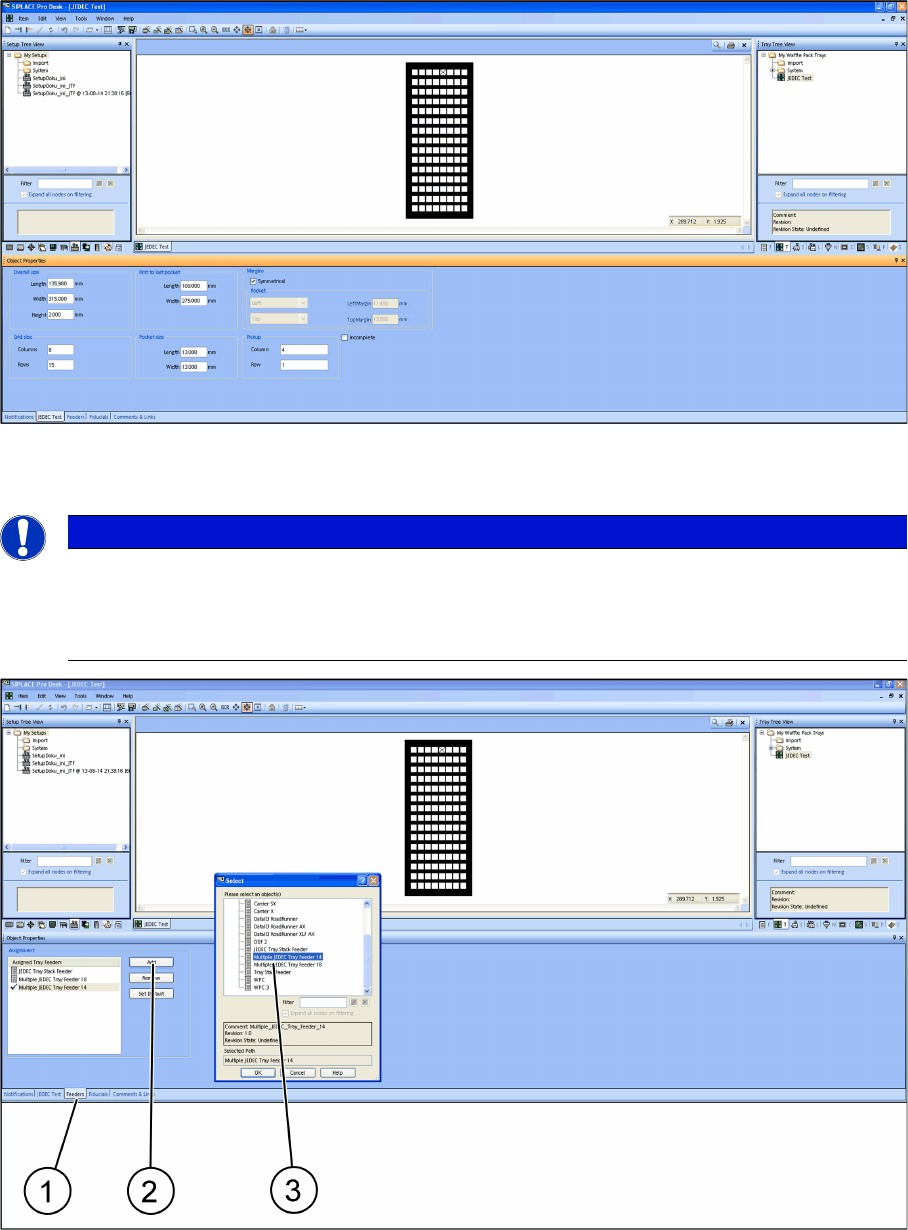

► Define one JEDEC tray with dimensions that comply with the JEDEC tray standard.
► For the dimensions, refer to the data sheet of the manufacturer.
► After defining a JEDEC tray you must assign it to a feeder. Select the relevant SIPLACE JTF feeder
type.
► Select the Feeder tab (1).
► Select Add to add a feeder or Remove to remove a feeder (2).
► Select the relevant SIPLACE JTF feeder(s) (multiple selection is possible) and confirm with OK. As-
signed SIPLACE JTF feeders (3) are displayed in the Assignment window.
NOTICE
JEDEC tray standard
In order to be used in a SIPLACE JTF-S, SIPLACE JTF-M feeder, the dimensions must comply
exactly with the JEDEC tray standard. In the example, a JEDEC tray with the name JEDEC
Test was defined.
Tasks for SIPLACE JTF-S, SIPLACE JTF-M
Configuration of SIPLACE JTF-S, SIPLACE JTF-M in SIPLACE Pro 5.3.3 Configuration of the Station – Station Tree View
160 JEDEC Tray Feeder
5.3.3
5.3.3 Configuration of the Station – Station Tree View
Configuration of the Station – Station Tree View
Not every station can be configured for the use of a SIPLACE JTF-S, SIPLACE JTF-M feeder.
The following stations with station software 707.0 or higher support the SIPLACE JTF-S, SIPLACE JTF-
M:
▪SIPLACE SX
▪ SIPLACE SX V2
▪ SIPLACE X2 S
▪ SIPLACE X3 S
▪ SIPLACE X4 S
▪ SIPLACE X4i S
5.3.4
5.3.4 Assignment of JEDEC Tray to the Component Shape – Component Shape Tree View
Assignment of JEDEC Tray to the Component Shape – Component Shape Tree View

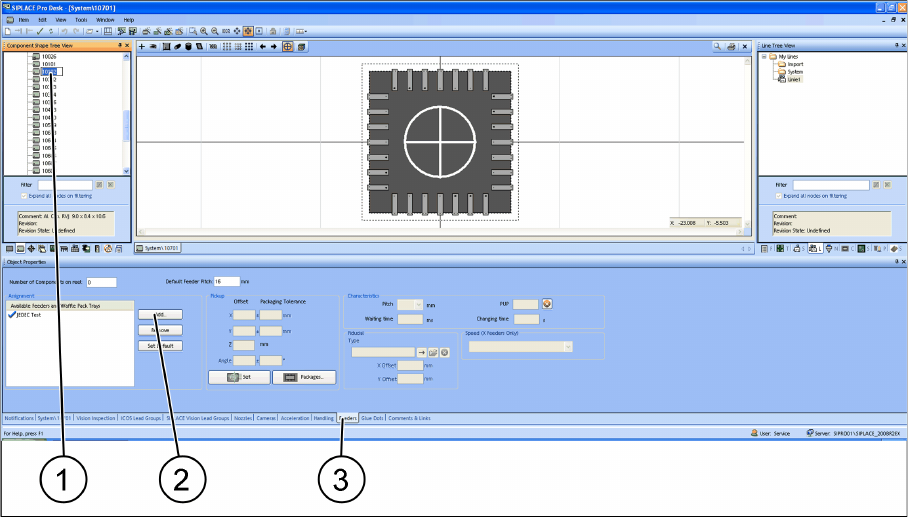

To be able to place a component with the SIPLACE JTF-S, SIPLACE JTF-M later on, you must assign
a JEDEC tray to the component shape.
► (1) Select the component shape.
► (3) Select the Feeders tab.
► (2) Select Add to add the JEDEC tray.
► Select an appropriate JEDEC tray from the list. The selected JEDEC tray is displayed under Assign-
ment.
