Introduction

1.1.1 Typeplate and Serial Number Module Description

JEDEC Tray Feeder 91

1 Introduction

Introduction

This manual provides technical information and describes how to operate the JEDEC tray feeder in the

SIPLACE® family.

1.1

1.1 Module Description

Module Description

The JEDEC tray feeder is an automatic and fast changer for standard JEDEC waffle pack trays. On

SIPLACE X-Series S machines, a JEDEC tray feeder can be installed on a fixed changeover table in-

stead of a component trolley.

The JEDEC tray feeder occupies a fixed area of tracks on the fixed changeover table. The JEDEC tray

feeder is available in two versions:

▪ SIPLACE JTF-S

▪ SIPLACE JTF-M

SIPLACE JTF-S

The SIPLACE JTF-S stores a stack of up to 30 thin or 20 thick JEDEC waffle pack trays and supplies

them in succession. The placement machine can be supplied with one component type at constant

changeover time.

SIPLACE JTF-M

Depending on the magazine type, the SIPLACE JTF-M stores up to 18 thin or 14 thick JEDEC waffle

pack tray magazines in an exchangeable cassette and supplies them as required.

The placement machine can therefore be supplied with different component types at variable changeo-

ver times.

1.1.1

1.1.1 Typeplate and Serial Number

Typeplate and Serial Number

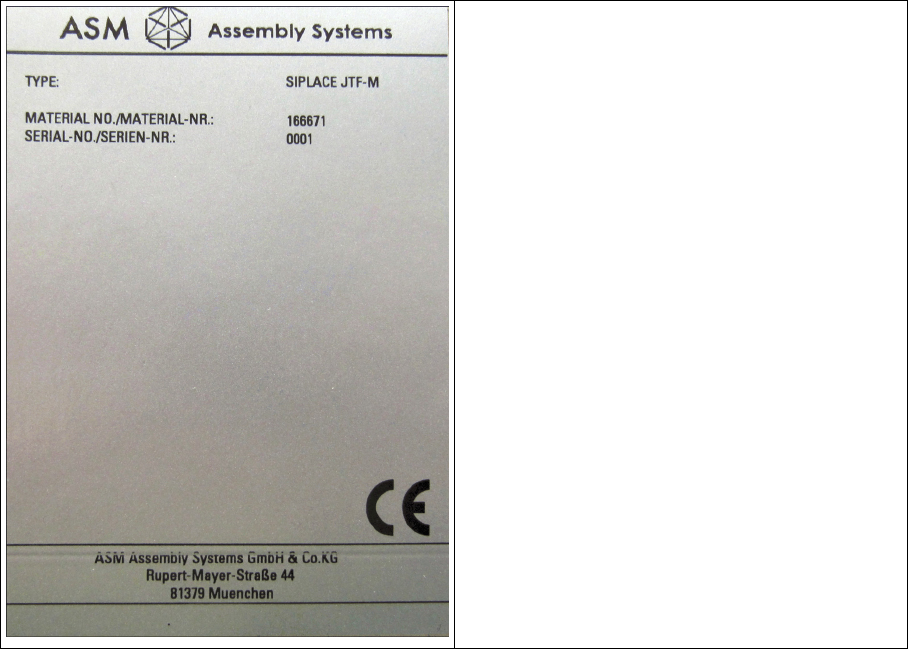

The feeder modules have a typeplate on their sides, which specifies the type, material and serial num-

ber.

▪ Type: SIPLACE JTF-M

▪ Material No./Material-Nr.: 166671

▪ Serial No.:0001

Introduction

Module Description 1.1.2 EU Declaration of Conformity

92 JEDEC Tray Feeder

1.1.2

1.1.2 EU Declaration of Conformity

EU Declaration of Conformity

The product/device described below conforms to the regulations and standards listed in the EU Decla-

ration of Conformity provided.

Manufacturer:

ASM Assembly Systems GmbH & Co. KG

Rupert-Mayer-Strasse 44

81379 Munich

Germany

1.1.3

1.1.3 Correct Usage

Correct Usage

The product may only be used for the application cases described in the catalogues and technical spec-

ifications i.e. for placement of SMD components and only in connection with the third party devices and

components recommended or approved by SIPLACE.

Any other use is deemed to be incorrect and not as prescribed.

If the product is not used as prescribed, SIPLACE will accept no liability for any damage that may occur

and will not guarantee that the components will work properly and without problems.

Prescribed or correct usage includes the observance of all the instructions in the user manual.

The proper and safe operation of the product requires correct transportation, storage, installation and

assembly, plus careful, accurate utilization and servicing.

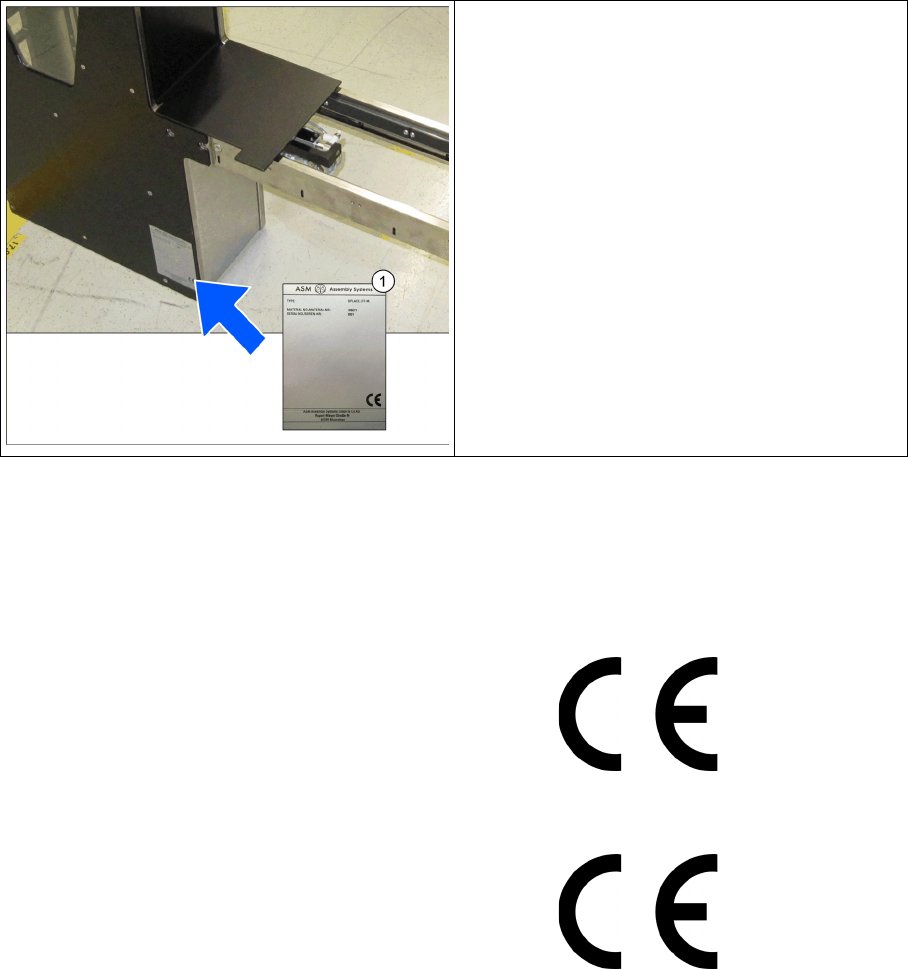

▪ Attachment of typeplate to the

SIPLACE JTF-S, SIPLACE JTF-M (1).

Model JEDEC tray stack feeder

Type SIPLACE JTF-S

Item no.: 166670-xx

Model JEDEC tray stack feeder

Type SIPLACE JTF-M

Item no.: 166671-xx
