Setting up and Commissioning
Retrofitting in the SIPLACE X-Series S 4.3.8 Installing the Manual Table
132 JEDEC Tray Feeder
Installation

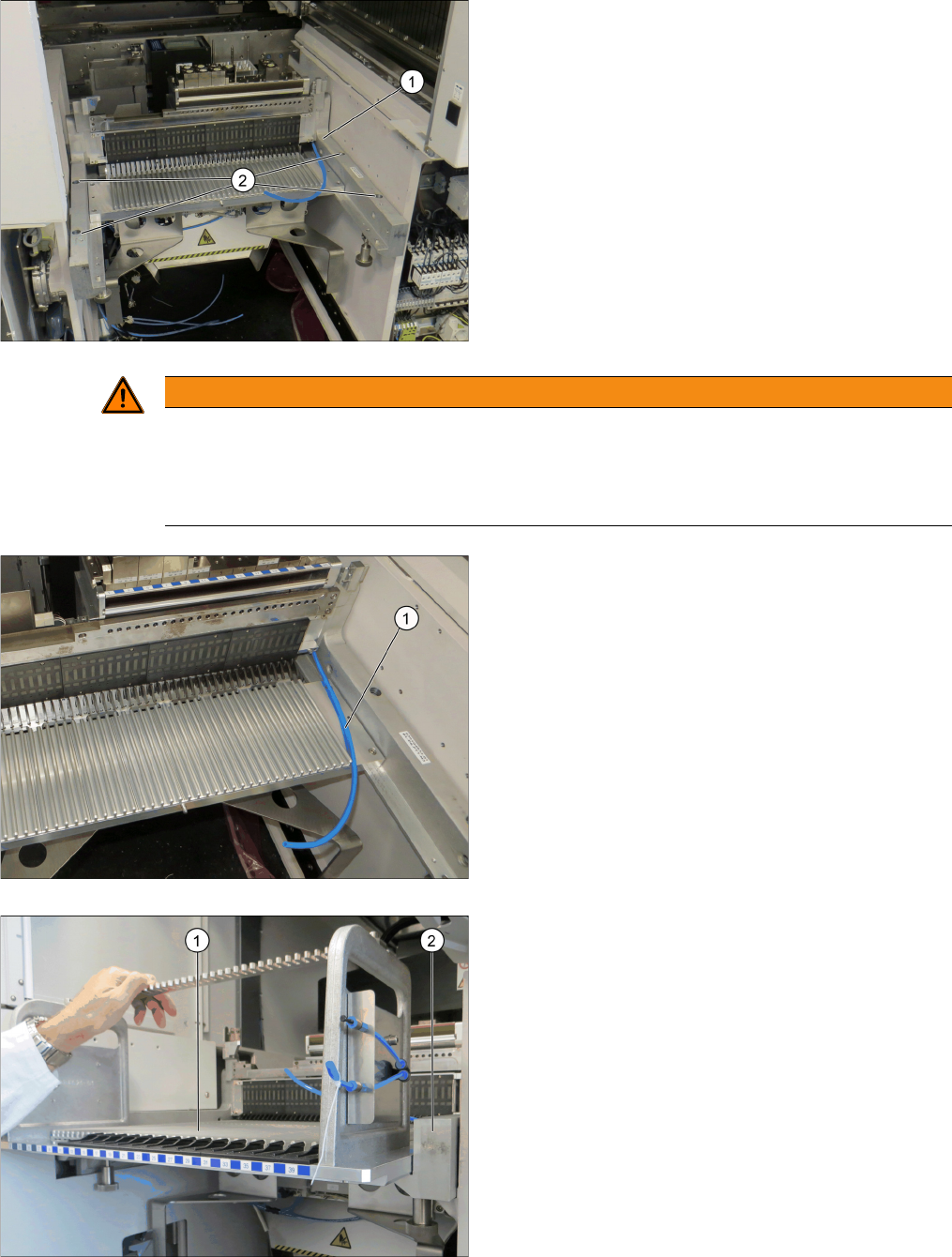

► Insert the mounting frame (1) of the manual table.
► Fix the mounting frame of the manual table to the fix-
ation points indicated in chapter "4.3.8.1 Installation
Positions of the Manual Table (Table Positions)"
[ ➙ 131]. Use the four M6x25 screws [03042575-xx]
(2).
WARNING
Unstable frame
Dismantling the front section can make the frame unstable.
➢ Do not dismantle the front section.
► Do not dismantle the front section of the manual table.
► Pull the hose (1) towards the front.
► Place the back part (1) onto the frame (2) so that it is
aligned with the front part.
Setting up and Commissioning
4.3.8 Installing the Manual Table Retrofitting in the SIPLACE X-Series S
JEDEC Tray Feeder 133
► Fasten the screws (1) to fix the back part to the frame.
► If necessary, remove the plastic feeder guide profiles
(1) of the tracks onto which the adapter is to be
placed.
Setting up and Commissioning
Retrofitting in the SIPLACE X-Series S 4.3.8 Installing the Manual Table
134 JEDEC Tray Feeder
4.3.8.3
4.3.8.3 Pneumatic Connection
Pneumatic Connection
4.3.8.4
4.3.8.4 Installing the Hand Guard at the Cutting Device
Installing the Hand Guard at the Cutting Device
A hand guard must be installed at the cutting device for safety reasons.
► Connect the hose coming from the machine to the
coupling of the back part (1).
1x PUN 8 [03095247-xx] → 2x PUN 6 [03095246-xx]
► Fix the hand guard [03108706-xx] (2) to the table
frame using the M6x10 screw (1).
