Setting up and Commissioning 4.3.7 Installing the Q10 Magazi ne (Option) Retrofitting in the S IPLACE X-Series S JEDEC Tray Feeder 129 ► The setting value (4) is 150 +/ - 0.2 mm. You can ad just the heig ht, where n eces…
Setting up and Commissioning
Retrofitting in the SIPLACE X-Series S 4.3.6 Setting the Nozzle Changer Height
128 JEDEC Tray Feeder
► Check the height of the nozzle station.
4.3.6
4.3.6 Setting the Nozzle Changer Height
Setting the Nozzle Changer Height
Parts, equipment and tools
▪ Measuring scale
▪ NC shim plate [03021079-xx]
Overview
Setting
► During the following inside measurement, make sure that the tip of the measuring scale does not
tough the magnetic strip, as this might scratch it!
► Position the measuring scale (1) on the top edge of the X axis lower linear guide (2) and measure
the distance to the nozzle changer contact surface (4).
► Hold the measuring scale vertically (1).
► Hook the reject box small cpl. [03106818-xx] and the
reject box large cpl.[ 03106815-xx] (2) into the holder
[03106722-xx] (1).
Overview of measurement procedure
1. Measuring scale
2. Top edge of the X axis lower linear guide
3. Values to be set (150 +/- 0.2 mm)
4. Nozzle changer contact surface
5
1
4
3
2
CAUTION
Strong magnetic forces
Place a suitable plastic plate between the magnet and measuring scale.
Setting up and Commissioning
4.3.7 Installing the Q10 Magazine (Option) Retrofitting in the SIPLACE X-Series S
JEDEC Tray Feeder 129
► The setting value (4) is 150 +/-0.2 mm.
You can adjust the height, where necessary, by removing or adding NC adjusting plates.
► Repeat this measurement on the inside of the gantry (5).
► Calibrate the position of the nozzle changer.
4.3.7
4.3.7 Installing the Q10 Magazine (Option)
Installing the Q10 Magazine (Option)
CAUTION
Crash hazard!
Do not place too many adjusting plates underneath.
Spacer plate [03104724-xx]
► Fix the spacer plate for the Q10 magazine
[03104724-xx] (1) to the fixation points using the two
M6x70 screws (2).
Setting up and Commissioning
Retrofitting in the SIPLACE X-Series S 4.3.8 Installing the Manual Table
130 JEDEC Tray Feeder
4.3.8
4.3.8 Installing the Manual Table
Installing the Manual Table
Before installing the manual table, the tape duct and the cutting device must be removed.

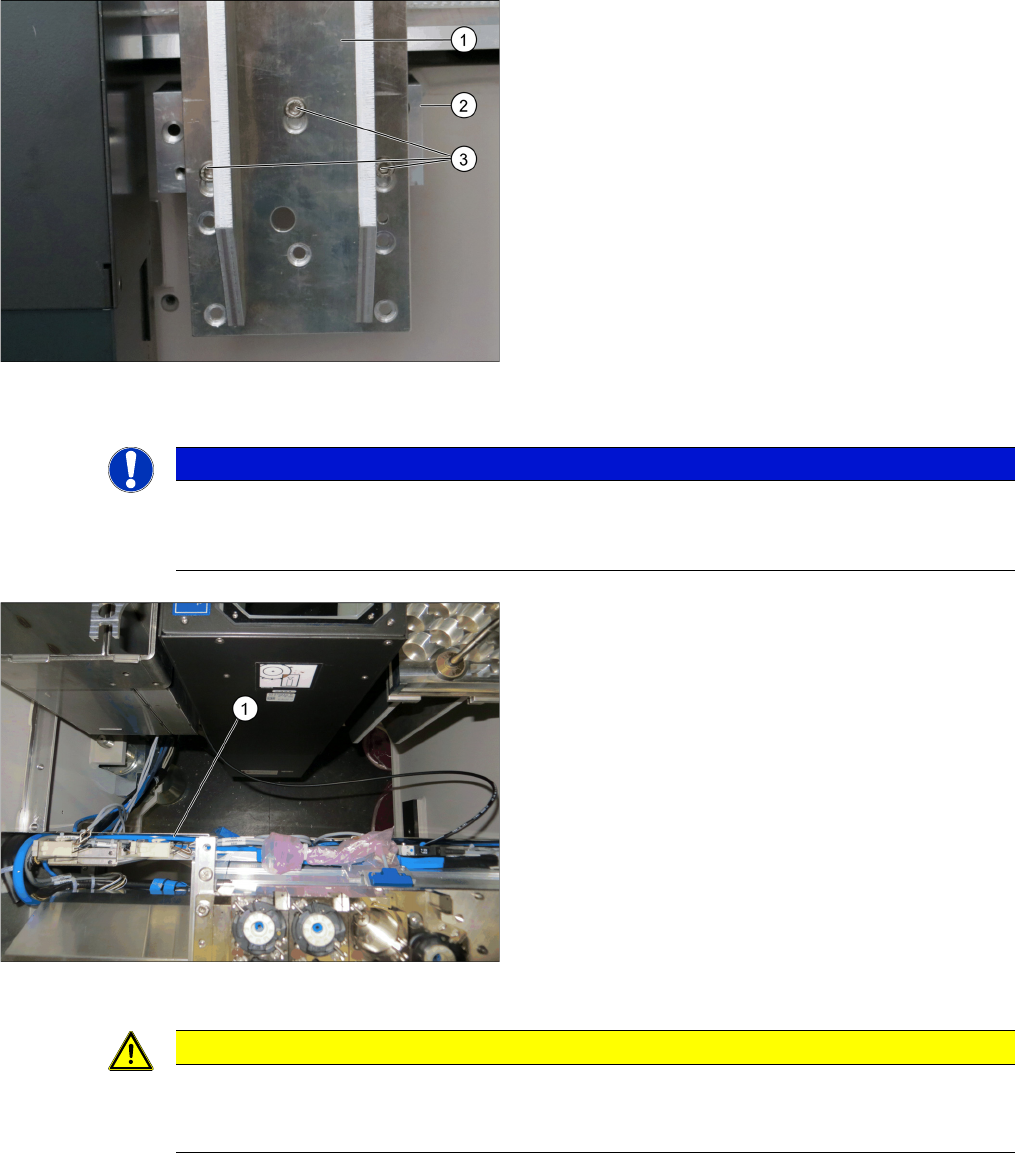

► Fix the Q10 magazine (1) to the spacer plate
[03104724-xx] (2) using the three screws (3).
NOTICE
Cables and hoses
► Before installing the table ensure to route all cables and hoses for the subsequent connec-
tion.
► Guide the pneumatic hose (1) out of the machine past
the rear side of the nozzle changer.
Ensure that the hose cannot be squeezed.
CAUTION
Back part, adjustable table fiducial
Do not operate the machine without the back part of the manual table or without the adjustable
table fiducial.
