4.3.4 Installation Position of the Spacer Plates for Reject Boxes, Stationary Camera and Q10 Magazine at Locations 2 and 3
Installation Position of the Spacer Plates for Reject Boxes, Stationary Camera and Q10
Magazine at Locations 2 and 3
Observe the different installation positions of the spacer plates for the installation of the reject box, the
stationary camera and the Q10 magazine. These vary, depending on location and machine type.

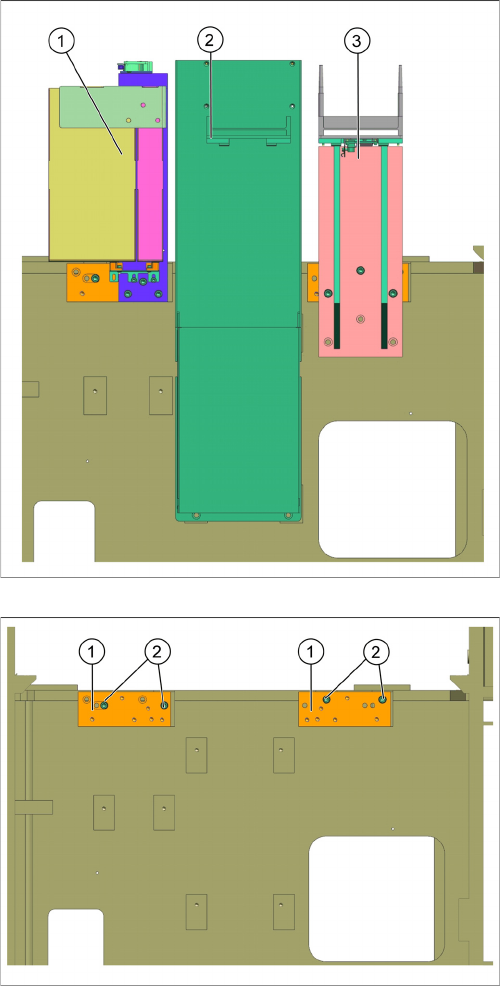

Positions on the SIPLACE X2 S, X3 S and SIPLACE X4 S at location 2
1. Reject box
2. Stationary camera
3. Q10 magazine
1. Installation position for the reject box
2. Installation position for the Q10 magazine
Setting up and Commissioning
Retrofitting in the SIPLACE X-Series S 4.3.4 Installation Position of the Spacer Plates for Reject Boxes, Stationary Cam-
124 JEDEC Tray Feeder

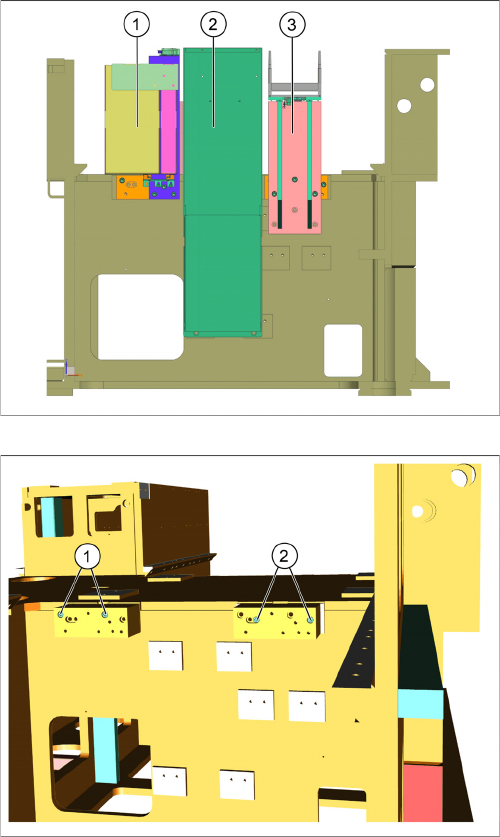

Positions on the SIPLACE X2 S, X3 S and SIPLACE X4 S at location 3

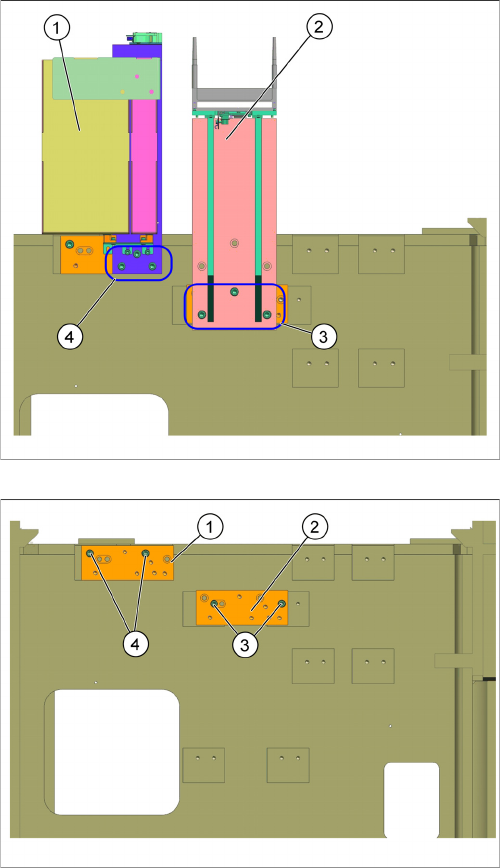

Positions on the SIPLACE X4i S at location 2
On SIPLACE X4i S machines, the Q10 magazine must be installed in the middle position.
1. Reject box
2. Stationary camera
3. Q10 magazine
1. Installation position for the reject box
2. Installation position for the Q10 magazine
Setting up and Commissioning
4.3.4 Installation Position of the Spacer Plates for Reject Boxes, Stationary Camera and Q10 Magazine at Locations 2 and 3 Retrofitting in the
JEDEC Tray Feeder 125
1. Installation position for the reject box
2. Installation position for the Q10 magazine
3. Screw points for the Q10 magazine
4. Screw points for the reject box
1. Installation position for the reject box
2. Installation position for the Q10 magazine
3. Screw points for the Q10 magazine
4. Screw points for the reject box
