Setting up and Commissioning Installation 4.4.1 Assembling the X Adapter for JEDEC Tray Feeder 136 JEDEC Tray Feeder ► Loosen the locking screw at the bottom side of the adapter. X4i S taken as example ► Slide the adapte…

Setting up and Commissioning

4.3.9 Connecting Cables Installation

JEDEC Tray Feeder 135

4.3.9

4.3.9 Connecting Cables

Connecting Cables

► Refit the tape cutter.

► Refit the waste slide welded complete [03067460-xx].

► Push the tape reel container MT 40 [03082711-xx] under the fixed table.

► Push the waste container 530x650x200 mm cmpl. [03088978-xx] under the tape reel container MT

40.

► At last, refit the side cover.

4.3.10

4.3.10 Fitting the Short Cover Handle to the Cover at Location 3

Fitting the Short Cover Handle to the Cover at Location 3

► Replace the existing cover handle at location 3 with the new cover handle [03113231-xx].

4.4

4.4 Installation

Installation

The following chapters briefly describe the installation of the adapter and of the SIPLACE JTF-S,

SIPLACE JTF-M.

4.4.1

4.4.1 Assembling the X Adapter for JEDEC Tray Feeder

Assembling the X Adapter for JEDEC Tray Feeder

The adapter has to be installed on specific tracks:

▪ SIPLACE X-Series S = track 1 – 15 at location 3

▪ SIPLACE X-Series S = track 27 – 40 at location 2

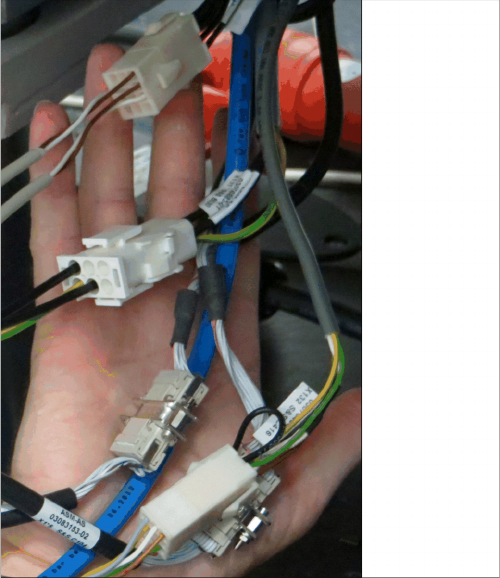

► Connect the cables as follows:

▪ 03083152-xx: => X1*2 =>2 (Signaling) (in the ma-

chine to X1*2)

▪ 03083153-xx: => X 1*6 (Can1_Out)

▪ 03083148-xx: => X 1*11 (Power)

▪ 03083687-xx: => X 1*3 (Safety Circuit)

▪ 0308315x-xx: => X 1*5 (Can1_In)

► Connect the two cables for the query sensor.

► Connect the black hose to the reject station.

Setting up and Commissioning

Installation 4.4.1 Assembling the X Adapter for JEDEC Tray Feeder

136 JEDEC Tray Feeder

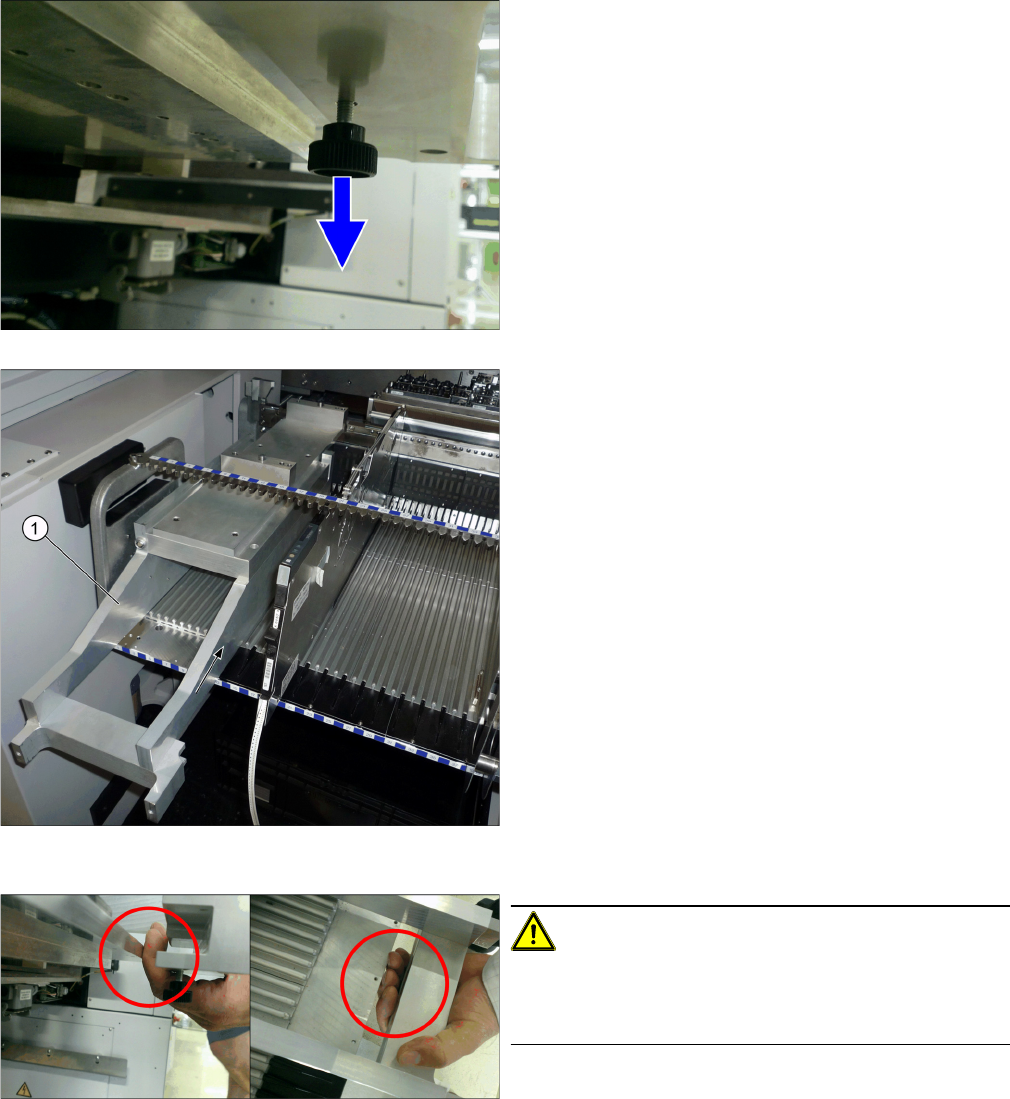

► Loosen the locking screw at the bottom side of the

adapter.

X4i S taken as example

► Slide the adapter (1) onto the predefined track of the

table.

► Slide the adapter forward until you hear it engage.

CAUTION!

Danger of crushing hands

Ensure not to get the hands between the adapter and the

table when sliding the adapter onto the table.

Setting up and Commissioning

4.4.1 Assembling the X Adapter for JEDEC Tray Feeder Installation

JEDEC Tray Feeder 137

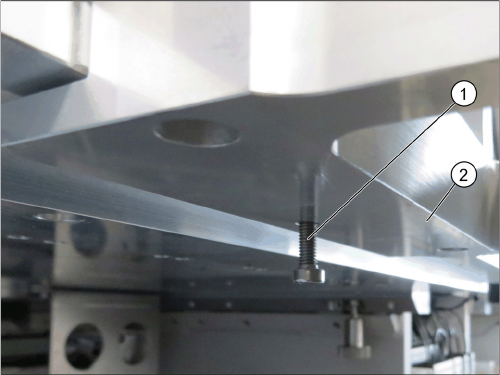

► Lock the adapter (2) using the locking screw (1).
