9 MACHINE CONTROL
9.4 CAN BUS
TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019 123

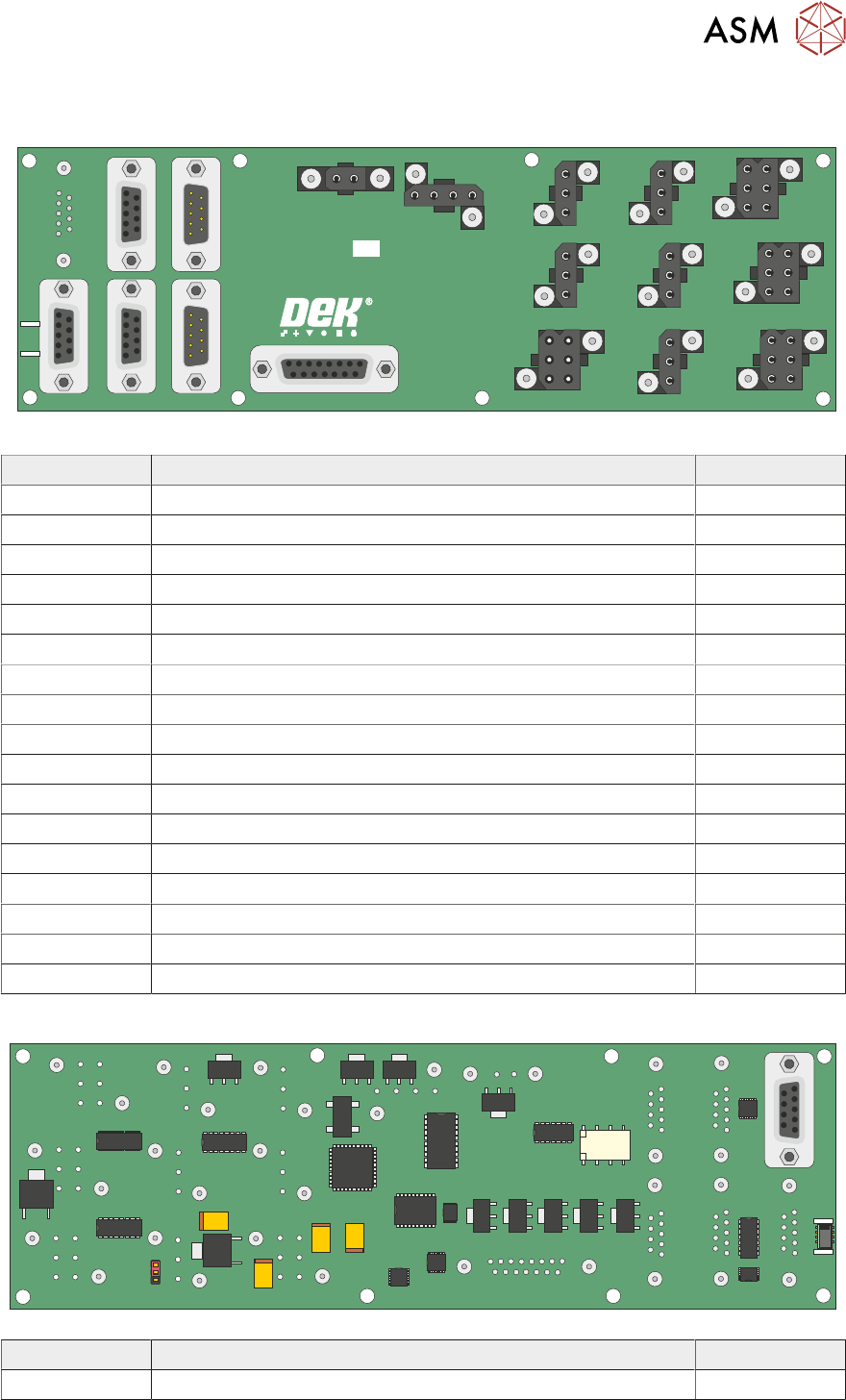

9.4.4 I/O Node 3 (Print Carriage I/O)
NODE 3 PRINT CARRIAGE
181471 ISSUE
N3SK12 N3SK7N3SK9
N3SK17
N3SK8
N3SK6 N3SK1 N3SK14
N3SK5 N3SK4
N3SK11 N3SK10N3PL2
N3PL1N3PL3N3SK15 N3SK13
Connector Description I/O
N3PL1 Power Input
N3PL2 CAN Signal In Input
N3PL3 CAN Signal Out Output
N3SK1 Spare Output Output
N3SK4 Paste Height Laser - Paste Roll Low Input/Output
N3SK5 Screen Position Input
N3SK6 Spare Output Output
N3SK7 Screen Cylinder Extended & Retracted Sensors Input
N3SK8 Stencil Actuator Output
N3SK9 Spare Input Input
N3SK10 Spare Input Input
N3SK11 Paste Level Input
N3SK12 Spare Input Input
N3SK13 Spare Input/Output Input/Output
N3SK14 Spare Input Input
N3SK15 Temperature/Humidity (External Option) Input
N3SK17 Spare Input Input
N3SK16
3
Connector Description I/O
N3SK16 Squeegee Mechanism Input
9 MACHINE CONTROL
9.4 CAN BUS
124 TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019

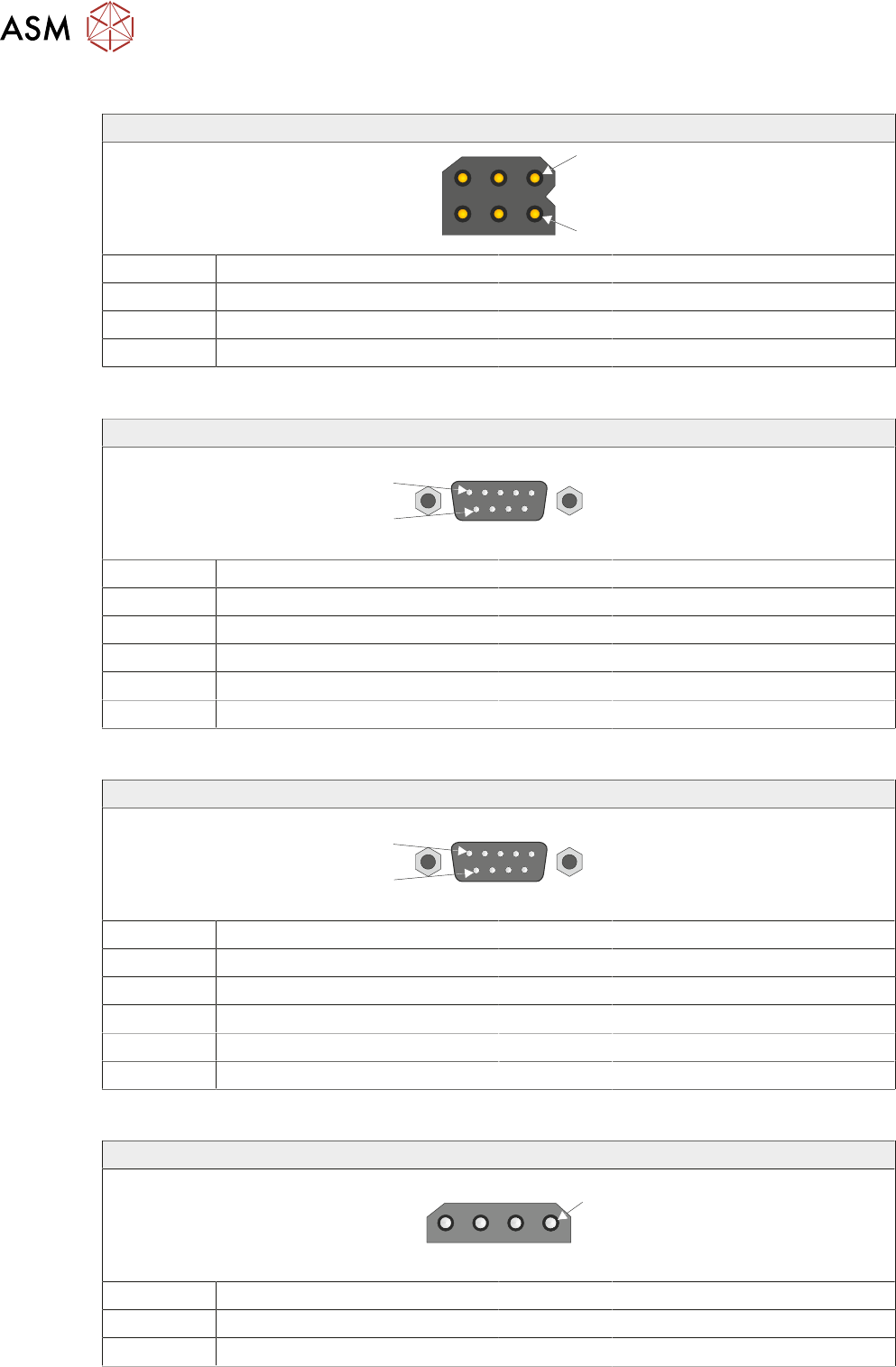

9.4.4.1 N3PL1
6 Way Trident Connector (with pins)
4
1
Pin No Signal Pin No Signal
1 24V US 4 0V
2 0V 5 12V
3 24V SW 6 0V
9.4.4.2 N3PL2
9 Way D Type Plug
1
6
Pin No Signal Pin No Signal
1 N/C 6 N/C
2 CAN_L 7 CAN_H
3 CAN_GND 8 N/C
4 N/C 9 N/C
5 N/C
9.4.4.3 N3PL3
9 Way D Type Plug
1
6
Pin No Signal Pin No Signal
1 N/C 6 N/C
2 CAN_L 7 CAN_H
3 CAN_GND 8 N/C
4 N/C 9 N/C
5 N/C
9.4.4.4 N3SK1
4 Way Trident Socket
1
Pin No Signal Pin No Signal
1 Spare Output 3 Spare Output
2 0V 4 0V
9 MACHINE CONTROL
9.4 CAN BUS
TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019 125
9.4.4.5 N3SK4
6 Way Trident Socket
4
1
Pin No Signal Pin No Signal
1 Paste Height Laser (12V) 4 Paste Height Laser (24V)
2 Paste Roll Low 5 N/C
3 0V 6 0V
9.4.4.6 N3SK5
3 Way Trident Socket
1
Pin No Signal Pin No Signal
1 +12V 3 0V
2 Screen Position
9.4.4.7 N3SK6
2 Way Trident Socket
1
Pin No Signal Pin No Signal
1 Spare Output 2 0V
9.4.4.8 N3SK7
6 Way Trident Socket
4
1
Pin No Signal Pin No Signal
1 +12V 4 +12V
2 Screen Cylinder Extended 5 Screen Cylinder Retracted
3 0V 6 0V
