15 BOARD STOP
15.6 ADJUSTMENTS AND SETTINGS
TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019 221

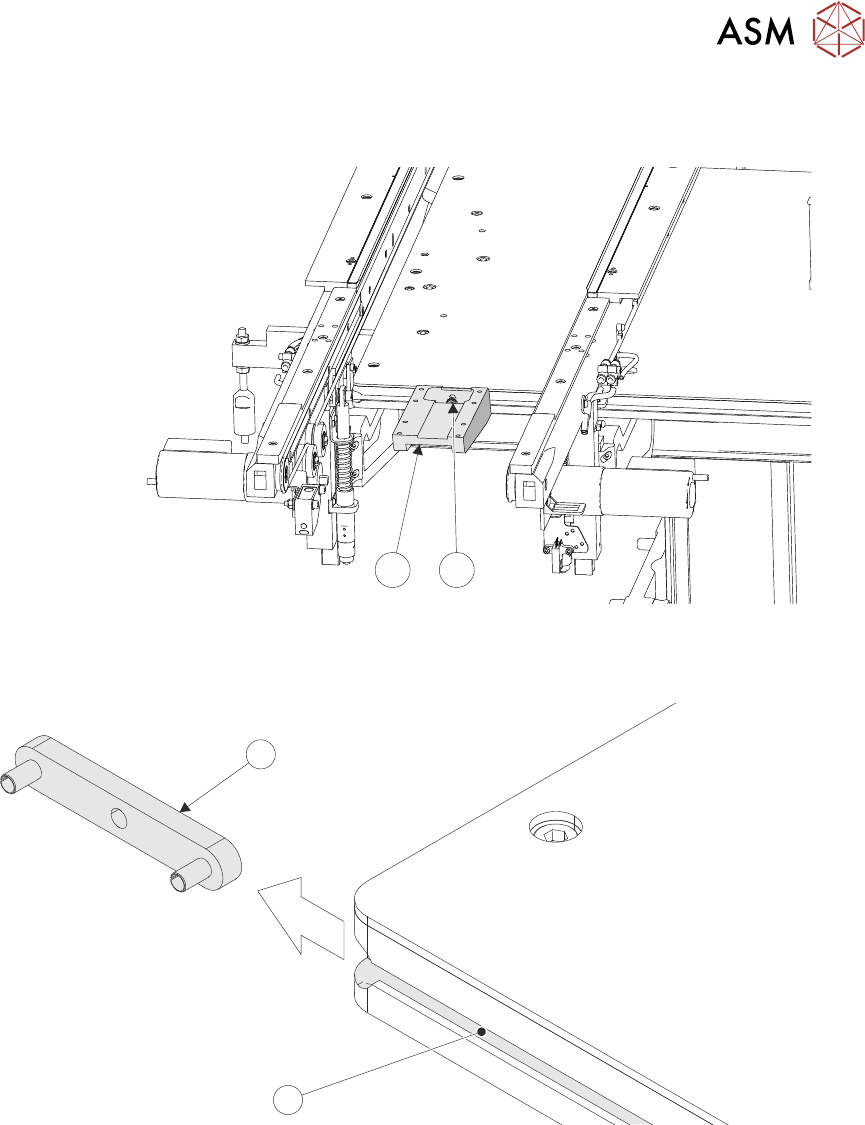

► Loosen the base clamp securing screw (4) sufficiently, using a 4mm Allen key, to remove the
base clamp (1) from the machine.
1
4
► Remove the base clamp locating nut (5) from the attachment slot (6) on the right hand side of
the rising table.
6
5
15 BOARD STOP
15.6 ADJUSTMENTS AND SETTINGS
222 TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019

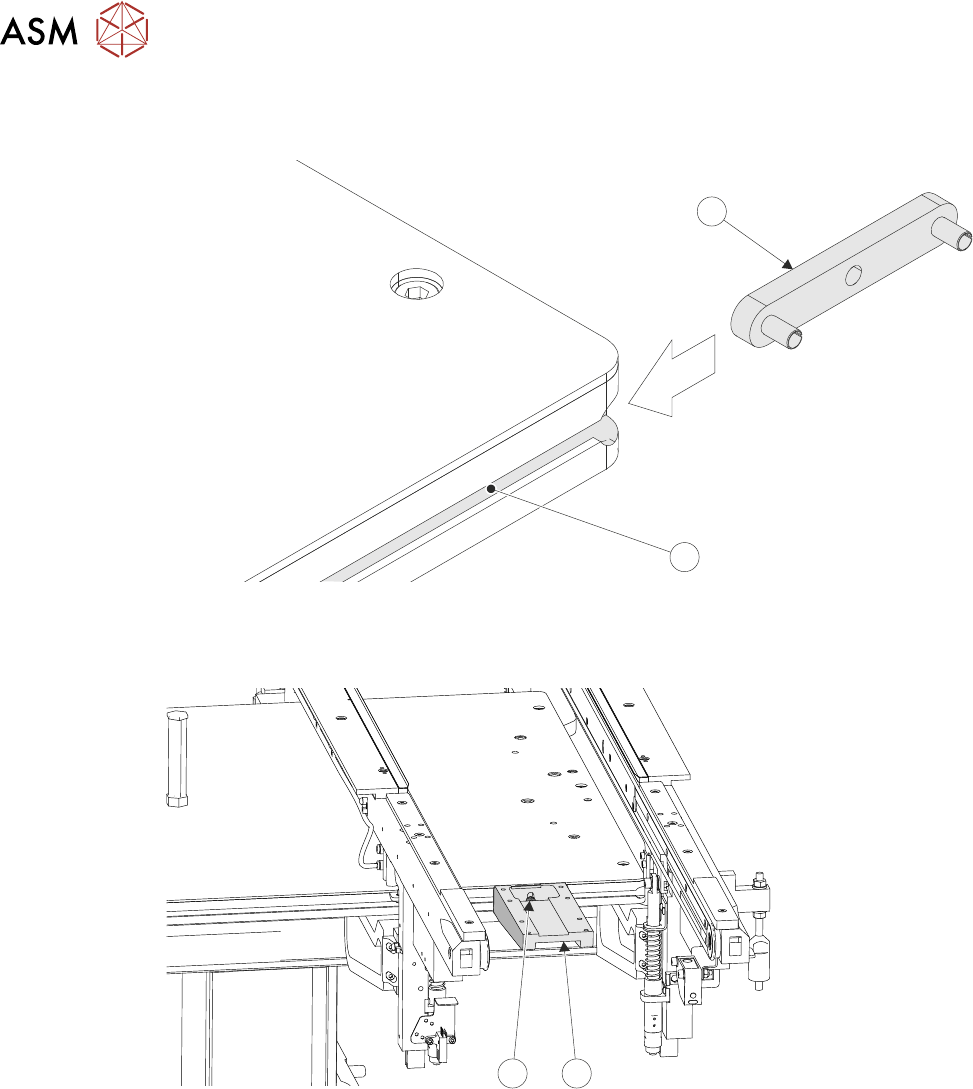

► Fit the base clamp locating nut (5) into the attachment slot (6) on the left hand side of the
rising table.
6
5
► Attach the base clamp (1) to the locating nut (5), in the correct position in the Y axis for the
product, using a 4mm Allen key and M5 securing screw and washer (4).
4
1
► Mark the centre point, in the X axis, on the front of the product board.
► Place the product board on the rails with the board centre point at the Camera Reference Po-
sition (white dot on front rail).
► Before fitting the remote board stop assembly (3) to the base clamp (1), ensure that the board
stop is configured for left hand side operation, carry out 15.6.2.1 "LHS Configuration" [}199]
section of this chapter.
15 BOARD STOP
15.6 ADJUSTMENTS AND SETTINGS
TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019 223

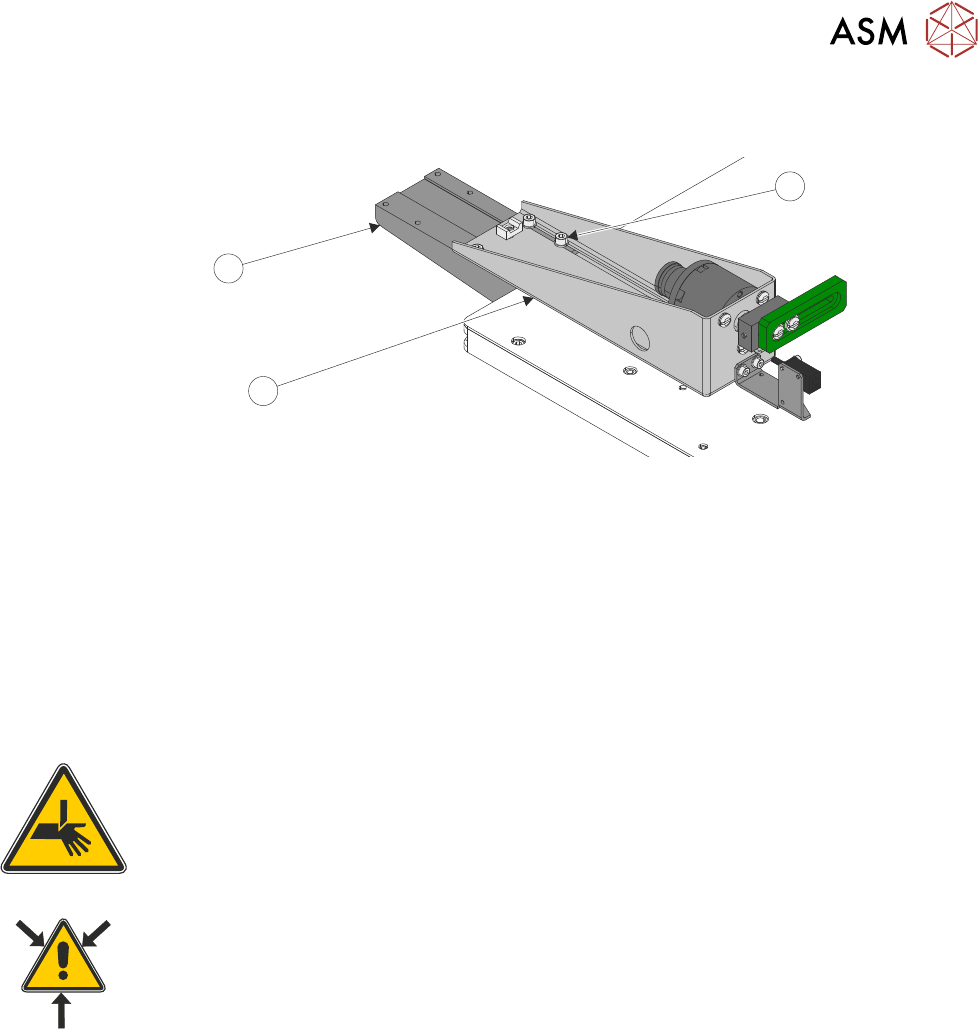

► Lay the remote board stop assembly (3) onto the base clamp (1) so that the board stop is
clear of the board.
3
1
2
► Using the appropriate slots, loosely secure the remote board stop assembly (3) to the base
clamp (1), using the four M5 cap head screws (2).
► Connect plug 8PL05 to socket 8SK05L.
► Connect the pipe marked Remote/B/Stop L1 to the in-line connector on the pipe marked 1 on
the remote board stop.
► Connect the pipe marked Remote/B/Stop L2 to the in-line connector on the pipe marked 2 on
the remote board stop.
► Carry out 15.6.3 "Setting the Remote Board Stop" [}203].
15.6.8 Remote Board Stop - Same Side Configuration
WARNING
BOARD CLAMPS. EXTREME CARE MUST BE EXERCISED WHEN WORKING IN
THE TOOLING AREA OF THE MACHINE TO AVOID INJURY. THE FOILS ON THE
FRONT AND REAR BOARD CLAMPS ARE VERY SHARP.
WARNING
COMPRESSED AIR. COMPRESSED AIR SHOULD NEVER IMPINGE UPON THE
BODY. PORTS, PIPES, ETC MUST NEVER BE BLOCKED BY HAND. BEFORE
CONNECTING OR DISCONNECTING ANY PNEUMATIC COMPONENTS, ENSURE
THE COMPRESSED AIR SUPPLY HAS BEEN DISSIPATED AND DISCONNECTED
FROM THE MACHINE.
This procedure details the changes required to alter the remote board stop position when switching
between products with different board widths.
15.6.8.1 Preparation
► Select Open Cover Commands.
► Select Carriage To Rear.
► Select Unload Screen.
► Open the front printhead cover.
► Remove the screen from the machine.
► Remove the appropriate safety cover.
► Loosen the securing screw (2) from the underside of the base clamp (1), using a 4mm Allen
key.
