6 POWER SUPPLY M37 6.3 M37 POWER SUPPLY ENCLOSURE TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019 77 6.3.4.15 M37SK31 to M37SK35 AC Mains Socket 10 Amp 1 3 2 Pin No Signal Pin No Signal 1 Live 3 Earth 2 Neutral
6 POWER SUPPLY M37
6.3 M37 POWER SUPPLY ENCLOSURE
76 TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019
6.3.4.12 M37PL26
9 Way D Type Plug
1
6
Pin No Signal Pin No Signal
1 N/C 6 Cover Interlock
2 Jog Left 7 E Stop Loop Supply
3 Jog Right 8 0V
4 N/C 9 N/C
5 Power On Monitor
6.3.4.13 M37SK27
15 Way D Type Socket
9
1
Pin No Signal Pin No Signal
1 System Button 9 Right Jog Button
2 System Button 10 Right Jog Button
3 System Lamp 11 Right Jog Button
4 System Lamp 12 Right Jog Button
5 Left Jog Button 13 RSVD (Cat 4)
6 Left Jog Button 14 RSVD (Cat 4)
7 Left Jog Button 15 N/C
8 Left Jog Button
6.3.4.14 M37SK30
USB Type B Socket
1
4
Pin No Signal Pin No Signal
1 USB Supply 3 USB Data +ve
2 USB Data -ve 4 USB Ground
6 POWER SUPPLY M37
6.3 M37 POWER SUPPLY ENCLOSURE
TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019 77

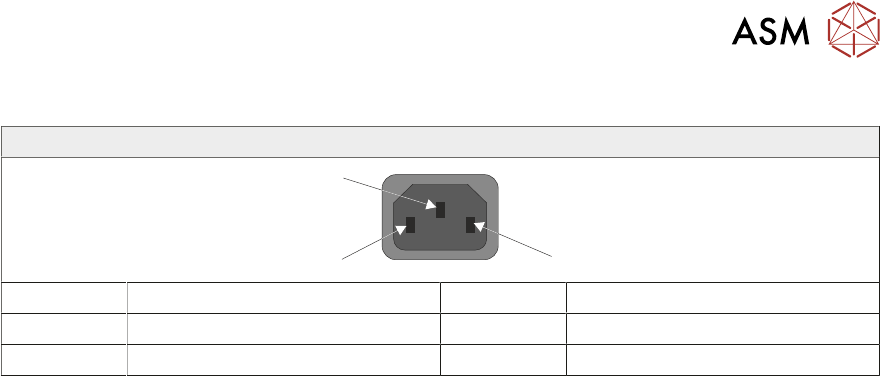

6.3.4.15 M37SK31 to M37SK35
AC Mains Socket 10 Amp
1
3
2
Pin No Signal Pin No Signal
1 Live 3 Earth
2 Neutral
