9 MACHINE CONTROL 9.4 CAN BUS TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019 129 9.4.4.19 Link (LK1) The link LK1 (3) on the component side of I/O node board 3 must have a jumper (2) set across Pins 2 and 3. N3S K 16 …
9 MACHINE CONTROL
9.4 CAN BUS
128 TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019
9.4.4.17 N3SK16
9 Way D Type Socket
1
6
Pin No Signal Pin No Signal
1 0V 6 N/C
2 N/C 7 Bridge O/P +
3 N/C 8 Bridge O/P -
4 N/C 9 N/C
5 +4.1V
9.4.4.18 N3SK17
9 Way D Type Socket
1
6
Pin No Signal Pin No Signal
1 +12V 6 0V
2 0V 7 Spare Input
3 Paste Level 8 0V
4 +12V 9 +12V
5 Spare Input
9 MACHINE CONTROL
9.4 CAN BUS
TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019 129

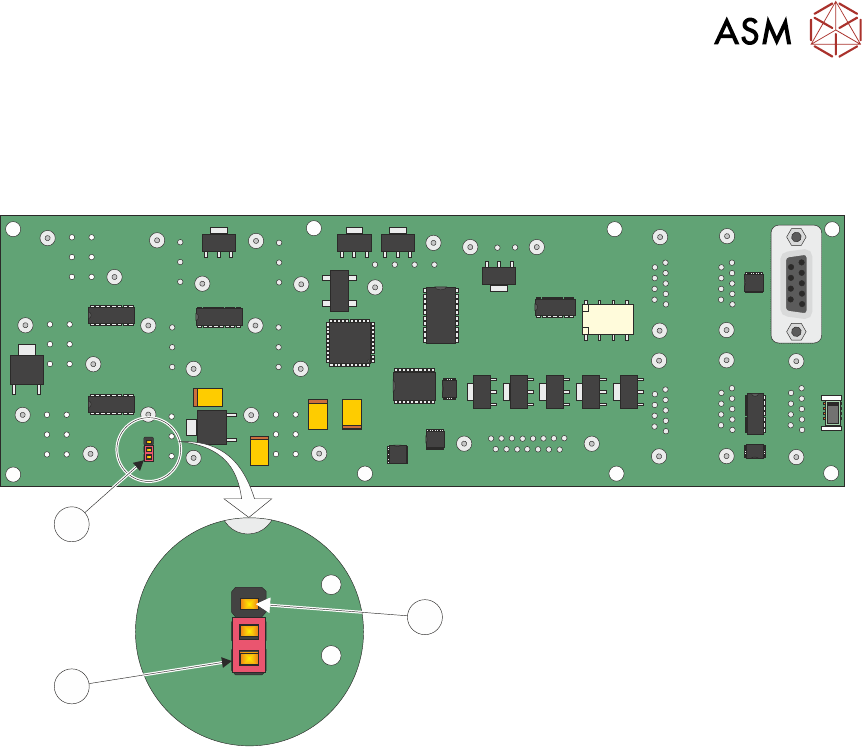

9.4.4.19 Link (LK1)
The link LK1 (3) on the component side of I/O node board 3 must have a jumper (2) set across
Pins 2 and 3.
N3SK16
3
2
1
9 MACHINE CONTROL
9.4 CAN BUS
130 TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019

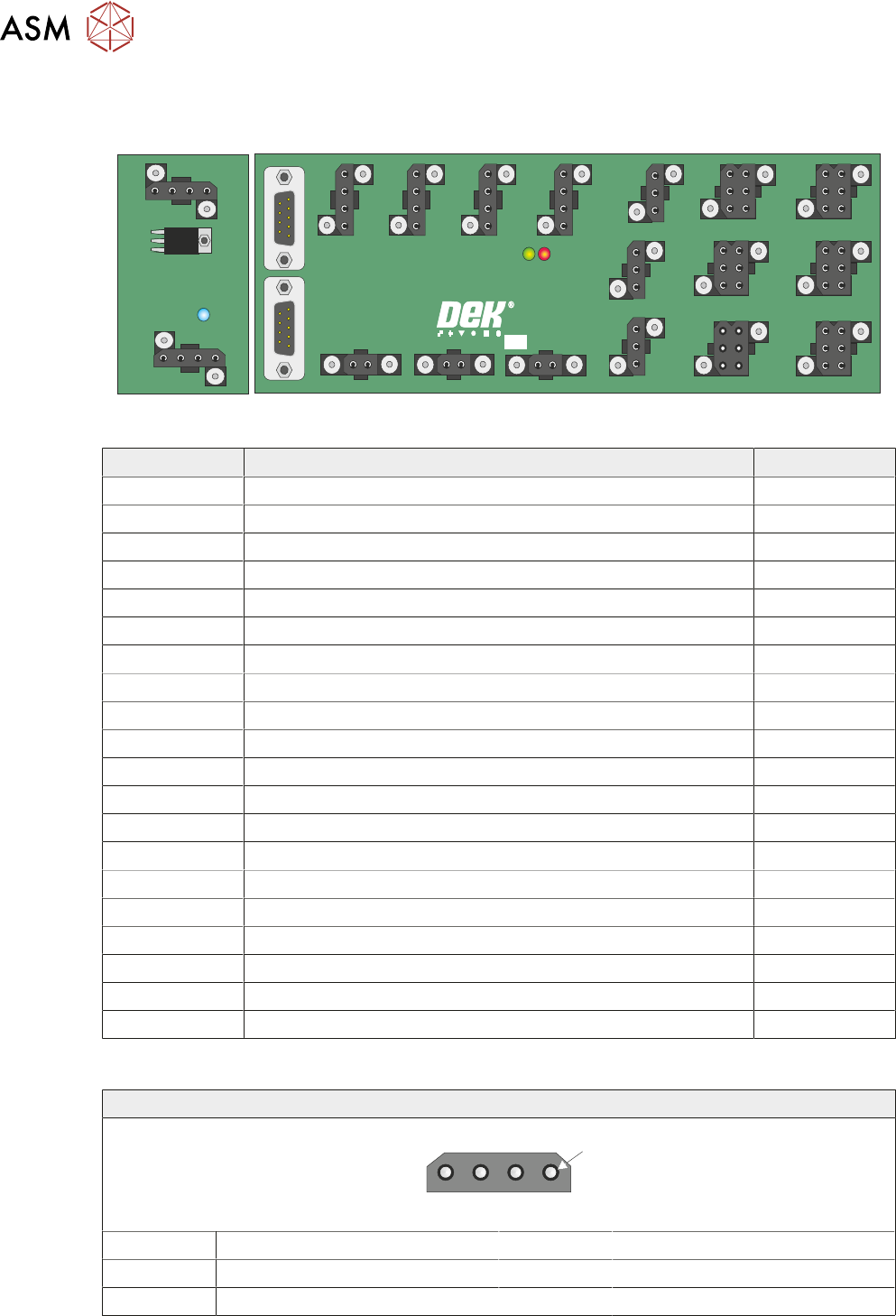

9.4.5 I/O Node 4 (Screen Cleaner I/O)
DEK CYCLONE BRAKE
N4PL3
N4PL1
N4PL2
N4SK2
N4SK3
N4SK12N4SK14N4SK15
N4SK11
N4SK5
N4SK6
N4SK9
N4SK13 N4SK8 N4SK10
N4SK7 N4SK1 N4SK4
STENCIL CLEANER NODE 4
181479 ISSUE
PL2
PL1
FET
Connector Description I/O
PL1 Fabric Feed Brake In (Brake FET Gate Control) Input
PL2 Fabric Feed Brake Out Output
N4PL1 Power Input
N4PL2 CAN Signal In Input
N4PL3 CAN Signal Out Output
N4SK1 Fabric Low/Fabric Usage - Solvent Low Sensor Input
N4SK2 Cleaner Home Clamps Output
N4SK3 Solvent Pinch Valve - Fabric Feed Motor/Solvent Pump Output
N4SK4 Cleaner Home Input
N4SK5 Spare Output Output
N4SK6 Cleaner Vacuum Power Output
N4SK7 Cleaner Vacuum Sense Input
N4SK8 Levelness Screen Sensor - Levelness Cylinder Extended Input
N4SK9 Spare Output Output
N4SK10 Board Present - Product Sensor Input
N4SK11 Oscillating Motor Output
N4SK12 Cleaner Dropped Sensor Input
N4SK13 Spare Input Input
N4SK14 Spare Input Input
N4SK15 Cleaner Camera Clamps Output
9.4.5.1 PL1
4 Way Trident Socket
1
Pin No Signal Pin No Signal
1 24V US 3 Fabric Feed Brake
2 0V 4 0V
