7 MACHINE PC (STANDARD)
7.3 PC ENCLOSURE
TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019 81
7.3 PC ENCLOSURE
7.3.1 Motherboard System
This card provides the master control of all machine functions, it houses the Central Processing
Unit (CPU) which is an Intel® Celeron® processor G1820 2.7GHz.
The main features of this card are:
●
DVI Output ( using VGA Adaptor)
●
HDMI Output - Not Used
●
6 USB Ports
●
Ethernet 10/100Base-T output via an RJ45 connector to LAN1 Host Comms
●
LAN2 Host Comms - Not Connected
●
SATA HDD fixed disk controllers
●
2 PCI Bus Interface
●
RS232 Interface (COM1) - Not Connected
●
RS232 Interface (COM2) - Not Connected
●
CMOS RAM with Lithium battery backup (Not Shown)
●
6 Pin Mini Keyboard Connector - Not Used
●
4 DDR2 DIMM Sockets (RAM) (Not Shown)
●
Line Out Connector - Not Used
●
Line In Connector - Not Used
●
Mic In - Not Used
7.3.2 BIOS Settings
The BIOS settings are password protected to prevent any settings being changed.
It is highly unlikely that the BIOS settings could be responsible for PC issues however, if the set-
tings are strongly suspected, contact the CSG Helpdesk.
7 MACHINE PC (STANDARD)
7.4 PCI INTERFACE CARD
82 TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019

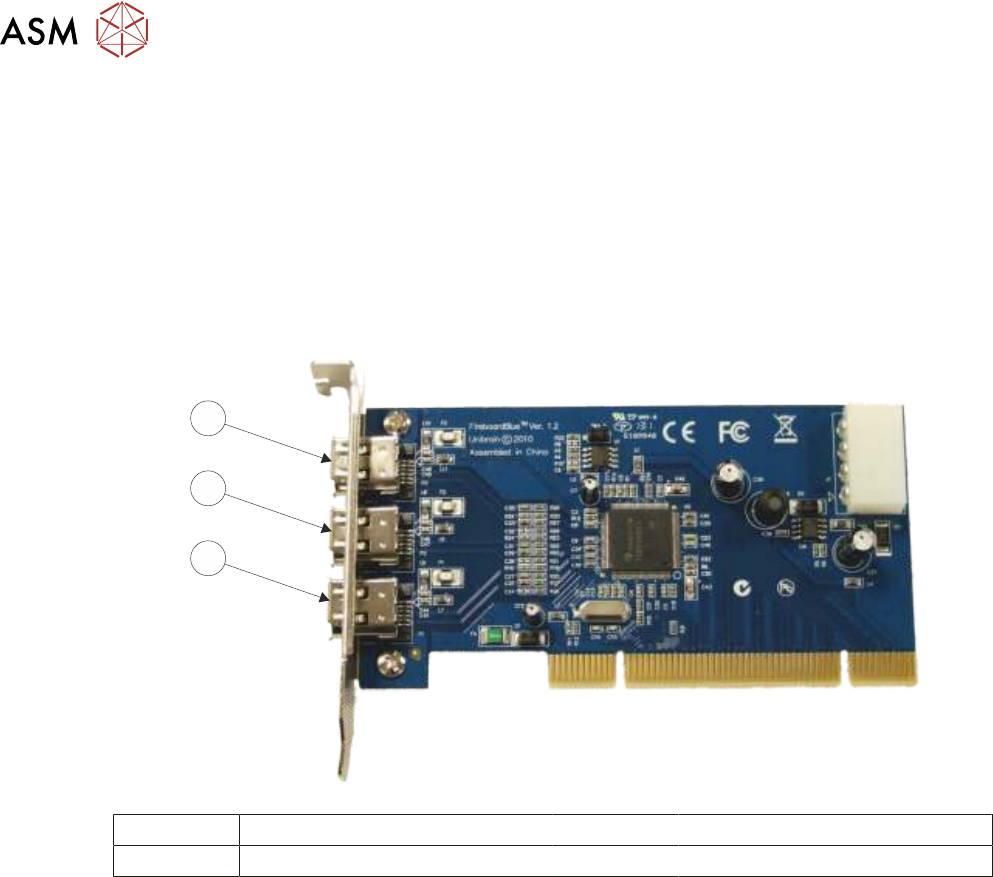

7.4 PCI INTERFACE CARD
The Unibrain Fireboard-BlueT™ 400 host adaptor is a PCI interface board that enables the PC with
IEEE-1394 functions. The features include:
●
IEEE - 1394 Compliance
●
Up to 400 Megabits per second
●
3 External Connectors
●
Open Architecture API (OHCI Compliant)
●
Compatibility Assurance
1
2
3
1 Port 1 3 Port 3
2 Port 2
7 MACHINE PC (STANDARD)
7.5 FRONT PANEL CONNECTIONS
TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019 83
7.5 FRONT PANEL CONNECTIONS
0
1
2
15
16
17
18 19
3
4
5
6
7
89
10
11
12
13
14
Item Type Connector Description
1 Jack Socket (Blue) 3SK49 Line In
2 1394a PCI Interface Card - Port 1 3SK54 Not Used
3 1394a PCI Interface Card - Port 2 3SK55 Digital Camera
4 1394a PCI Interface Card - Port 3 3SK53 Not Used
5 Jack Socket (Green) 3SK47 Line Out - Not Used
6 Jack Socket (Pink) 3SK48 Mic In - Not Used
7 USB 2.0 3SK59 USB5 - Not Used
8 USB 2.0 3SK35 USB4 - Dongle
9 USB 3.0 3SK57 USB1 = USB Hub (optional)
USB1 - Keyboard/Mouse
10 USB 3.0 3SK34 USB2 - Not Used
11 HDMI 3SK63 HDMI - Monitor (optional)
12 9 Way D Type Plug 3PL03a COM 1 RS232 (Stinger - if fitted)
13 USB 2.0 3SK37 USB6 - M37 PSU
14 USB 2.0 3SK36 USB3 - NextMove ES
15 PS2 3SK04 6 Pin Mini Keyboard - Not Used
16 9 Way D Type Plug 3PL03b COM 2 RS232 - Not Used
17 DVI 3SK05 DVI-I - Monitor
(SVGA Adaptor supplied with PC)
18 RJ45 3SK02a LAN 1 Host Comms
19 RJ45 3SK02b LAN 2 Host Comms - Not Used
