4 COVERS
4.1 PRINTER COVERS
TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019 45

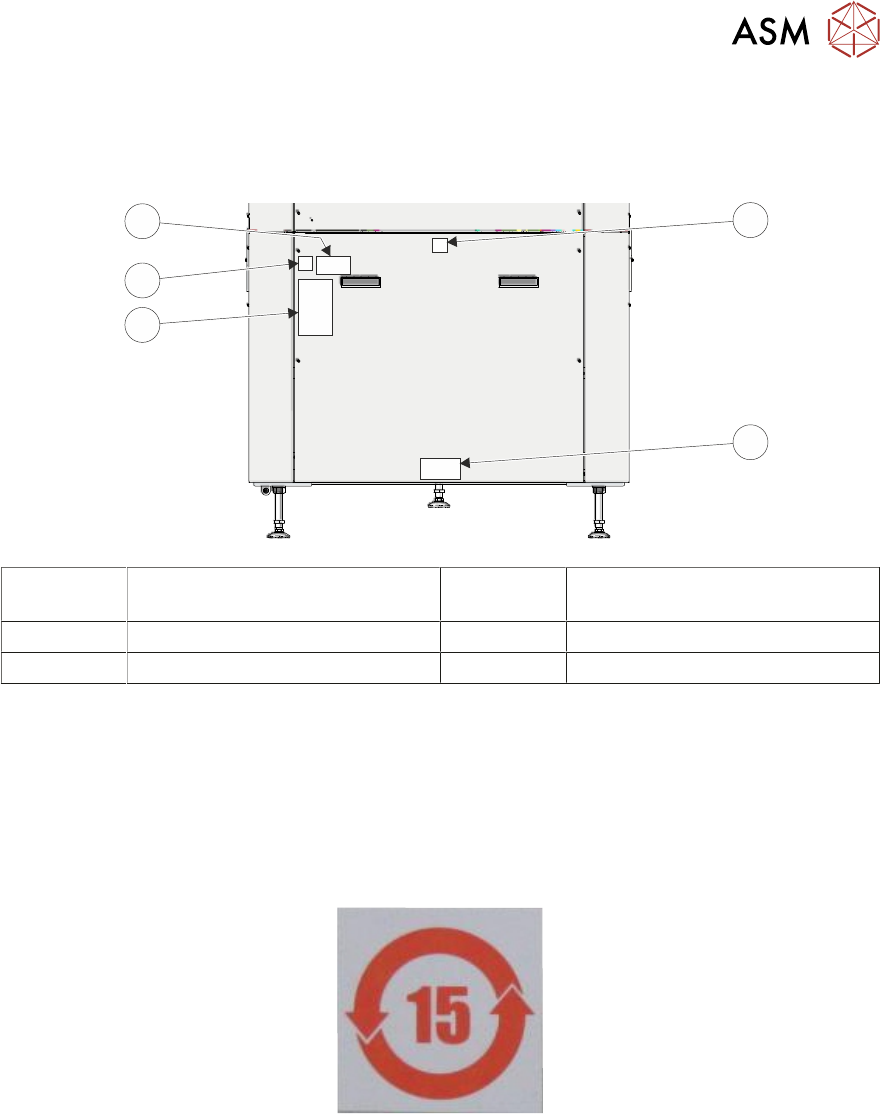

4.1.2 Rear Panel Labels
The rear cover has five labels (one is a general safety label and not detailed here). The labels are
used to inform users of printer safety, delivery status and environmental condition.
1
2
3
4
5
1 General Safety Label 4 Environmental-Substance Re-
lease Label
2 Fifth Leg Label 5 Next Service Due Label
3 Machine Conformity Label
4.1.2.1 Fifth Leg
This label warns the user to retract the fifth leg after the printer has been levelled.
4.1.2.2 Environmental-Substance Release
This label complies with RoHS (China) legislation. It indicates that hazardous substances, present
in the printer, are not released for at least an industry agreed time period. The number (15) within
the symbol indicates the number of years before the substance may be released.
In the E By DEK printer, the items listed in the RoHS certificates SJ/T 11363-2006 supplied with
the printer, contain lead.
4 COVERS
4.1 PRINTER COVERS
46 TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019
4.1.2.3 Machine Conformity
This label indicates the technical bodies that have given quality assurance approval. The label also
gives the following information.
●
ASM Contact Address
●
Machine Type
●
Machine Serial Number
●
Model Designation
●
Year of Manufacture
The following technical information is used to specify the electrical and pneumatic supplies to the
printer.
●
Voltage Setting
●
Full Load Current Rating
●
Operational Frequency
●
Number of Electrical Phases Required
●
Minimum and Maximum Compressed Air Pressure (in Bar)
●
Earth Equipment Warning
MACHINEMODEL/MASCHINENMODELL
SERIALNo./SERIENNR
SERIES/SERIE
NOMINALVOLTAGE/SPANNUNG:
FULLLOADCURRENT/NENNSTROM:
FREQUENCY/FREQUENZ:
NUMBEROFPHASES/PHASEN:
PRESSURE/DRUNK:
YEAROFMANUFACTURE/JAHRDER
HERSTELLUNG:
DATEOFREFURBISHING
DATUMDERUBERHOLUNG:
MadeinMalaysia
V
A
Hz
50/60
1
5-8
BAR
ASMAssemblySystemsWeymouthLtd.
535YishunIndustrialParkA
ASMTech-ParkBuilding2
Singapore768775
Shortcircuitcurrentrating2KArmssymmetrical,240Vmaximum.
Kurzschlussstrom2KArmssymmetrisch,max.240V.
ASM
Assembly Systems
4 COVERS
4.1 PRINTER COVERS
TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019 47
4.1.2.4 Next Service Due
This label is filled in by the engineer at installation to show when the next service is due. On sub-
sequent service visits the engineer replaces the label.
