6 POWER SUPPLY M37 6.3 M37 POWER SUPPLY ENCLOSURE 72 TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019 6.3.4 M37 Rear Panel CB1 CB2 C B3 CB4 CB5 CB6 CB7 CB 8 CB9 C B10 CB11 CB12 C B13 CB14 CB15 CB16 CB17 CB18 CB 19 CB20 …
6 POWER SUPPLY M37
6.3 M37 POWER SUPPLY ENCLOSURE
TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019 71
CB32
CB33
CB34
10A
Type C
10A
Type C
16A
Type C
CCT Breaker Current Rating CCT Breaker Function
CB32 10A +42V or +48V Servo DC Supply
CB33 10A Mains Supply PC and Monitor
CB34 16A Mains Supply Internal Vac Pump
6 POWER SUPPLY M37
6.3 M37 POWER SUPPLY ENCLOSURE
72 TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019

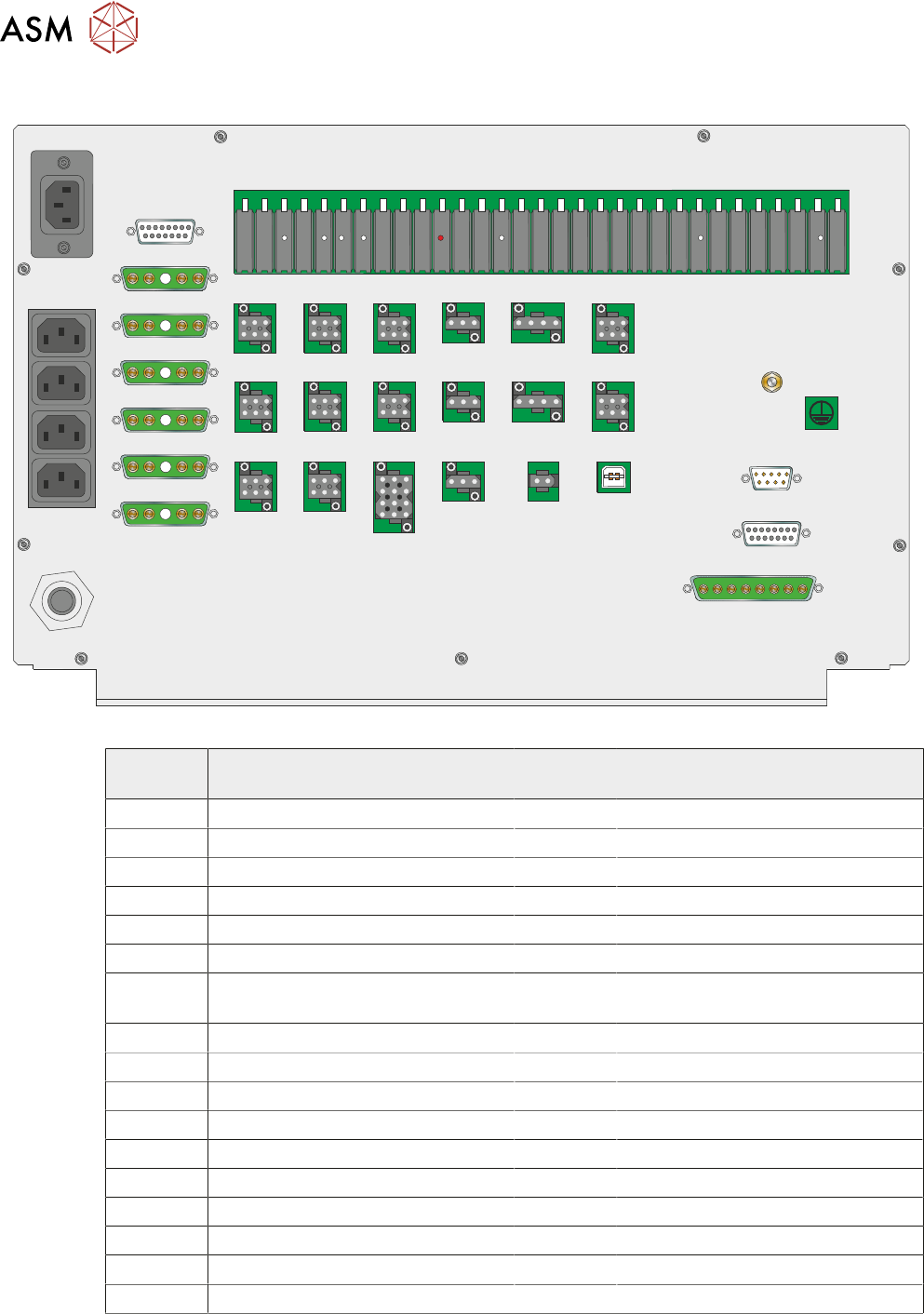

6.3.4 M37 Rear Panel
CB1 CB2 C B3 CB4 CB5 CB6 CB7 CB 8 CB9 C B10 CB11 CB12 CB13 CB14 CB15 CB16 CB17 CB18 CB 19 CB20 CB21 CB 22 CB23 CB24 CB25 CB26 CB27 CB28 CB29 CB30 CB31
VAC PUMP
M37SK02
M37SK35
M37SK16
M37SK17
M37SK18
M37SK19
M37SK20
M37SK21
MAINS OUT
M37SK04
M37SK05
M37SK06
M37SK07
M37SK08
M37SK09
M37SK10
M37SK11
M37SK15
M37SK12
M37SK13
M37SK14
M37SK22
M37SK23
M37SK01
M37SK24
M37SK25
M37SK30
M37PL26
M37SK27
M37SK03
M37SK31
M37SK32
M37SK33
M37SK34
MAINS IN
Con-
nector
Description Con-
nector
Description
M37SK01 +5.5V (Spare) M37SK18 Camera X Servo Motor Power
M37SK02 Low Current DC M37SK19 Camera Y Servo Motor Power
M37SK03 High Current DC M37SK20 Not Used
M37SK04 Machine I/O Node (Node 2) M37SK21 Not Used
M37SK05 Print Carriage I/O Node (Node 3) M37SK22 Front Cover Interlock
M37SK06 Screen Cleaner I/O Node (Node 4) M37SK23 Interlock Blanking Plug
M37SK07 Not Used M37SK24 External E Stop/E Stop Blanking
Plug
M37SK08 Not Used M37SK25 Left and Right E Stop Buttons
M37SK09 Not Used M37PL26 Safety I/O
M37SK10 Grid-Lok Tooling M37SK27 MMI
M37SK11 Internal Lighting M37SK30 USB Port
M37SK12 +12V Spare M37SK31 PC Supply
M37SK13 Remote Barcode Reader M37SK32 Monitor Supply
M37SK14 2D Handheld Barcode Reader M37SK33 Spare
M37SK15 Machine Fans M37SK34 Spare
M37SK16 Rising Table Servo Motor Power M37SK35 Internal Vac Pump Supply
M37SK17 Print Carriage Servo Motor Power
6 POWER SUPPLY M37
6.3 M37 POWER SUPPLY ENCLOSURE
TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019 73
6.3.4.1 M37SK01
2 Way Trident Socket
1
Pin No Signal Pin No Signal
1 +5.5V (Spare) 2 0V
6.3.4.2 M37SK02
15 Way D Type Socket
9
1
Pin No Signal Pin No Signal
1 -12V (NextMove ES) 9 +24V SW (NextMove I/F, MIU)
2 -12V (NextMove ES) 10 +24V SW (NextMove I/F, MIU)
3 +5.5V (NextMove ES) 11 0V Return
4 +5.5V (NextMove ES) 12 0V Return
5 +24V US (NextMove I/F, MIU,
Camera Lighting)
13 N/C
6 +24V US (NextMove I/F, MIU,
Camera Lighting)
14 N/C
7 0V Return 15 N/C
8 0V Return
6.3.4.3 M37SK03
8 Way Power D Type Socket
1
Pin No Signal Pin No Signal
1 +12V (NextMove ES, Sensors) 5 +24V US (EuroFlex, Stepper Lo-
gic, Fans)
2 0V Return 6 0V Return
3 +24V SW (Belt Motors) 7 +24V SW (Steppers)
4 0V Return 8 0V Return
