4 COVERS 4.1 PRINTER COVERS 48 TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019
4 COVERS
4.1 PRINTER COVERS
TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019 47

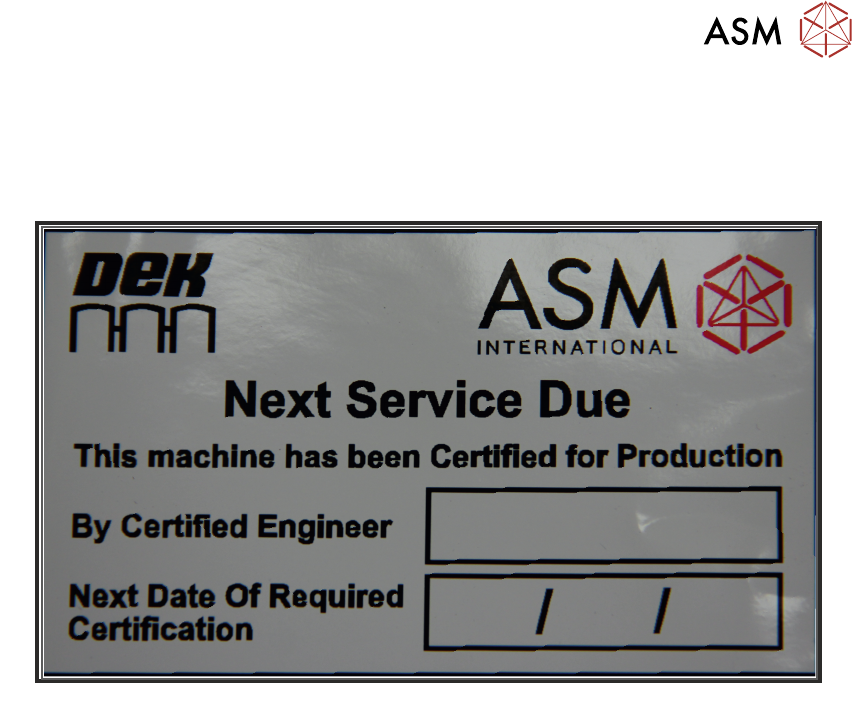

4.1.2.4 Next Service Due
This label is filled in by the engineer at installation to show when the next service is due. On sub-
sequent service visits the engineer replaces the label.
4 COVERS
4.1 PRINTER COVERS
48 TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019
5 MACHINE OVERVIEW
5.1 MODULE OVERVIEWS
TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019 49
5
MACHINE OVERVIEW
5.1 MODULE OVERVIEWS
This chapter describes the function and the purpose of each of the printer modules, their location
within the printer and the relationship and interaction between modules, if applicable.
For detailed information regarding each module refer to the relevant module chapter in this manual.
5.1.1 Man Machine Interface (MMI) Module
The MMI module enables communication and interaction between the user and the machine.
5
8
7
5
6
4
3
2
1
1 Tricoloured Beacon 5 Control Button
2 Control Button 6 Mains Isolator Switch
3 Monitor 7 Emergency Stop (E Stop)
4 Keyboard/Trackball Mouse 8 Control Button
