6 POWER SUPPLY M37 6.3 M37 POWER SUPPLY ENCLOSURE 70 TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019 6.3.3 Circuit Breakers CB1 CB2 CB3 CB4 CB5 CB 6 C B7 CB 8 C B9 CB10 CB 11 CB12 C B13 CB14 CB15 C B16 CB17 CB 18 CB19 …
6 POWER SUPPLY M37
6.3 M37 POWER SUPPLY ENCLOSURE
TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019 69
► On the taskbar, select Start, Programs, DEK Power Monitor. The following window is dis-
played:
NOTE
Ensure that the Circuit Breaker radio button is checked in Backplane Type.
Clicking on the channel ID button, i.e. (CH01) 24V, opens a further information window, an exam-
ple of which is shown below:
6 POWER SUPPLY M37
6.3 M37 POWER SUPPLY ENCLOSURE
70 TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019

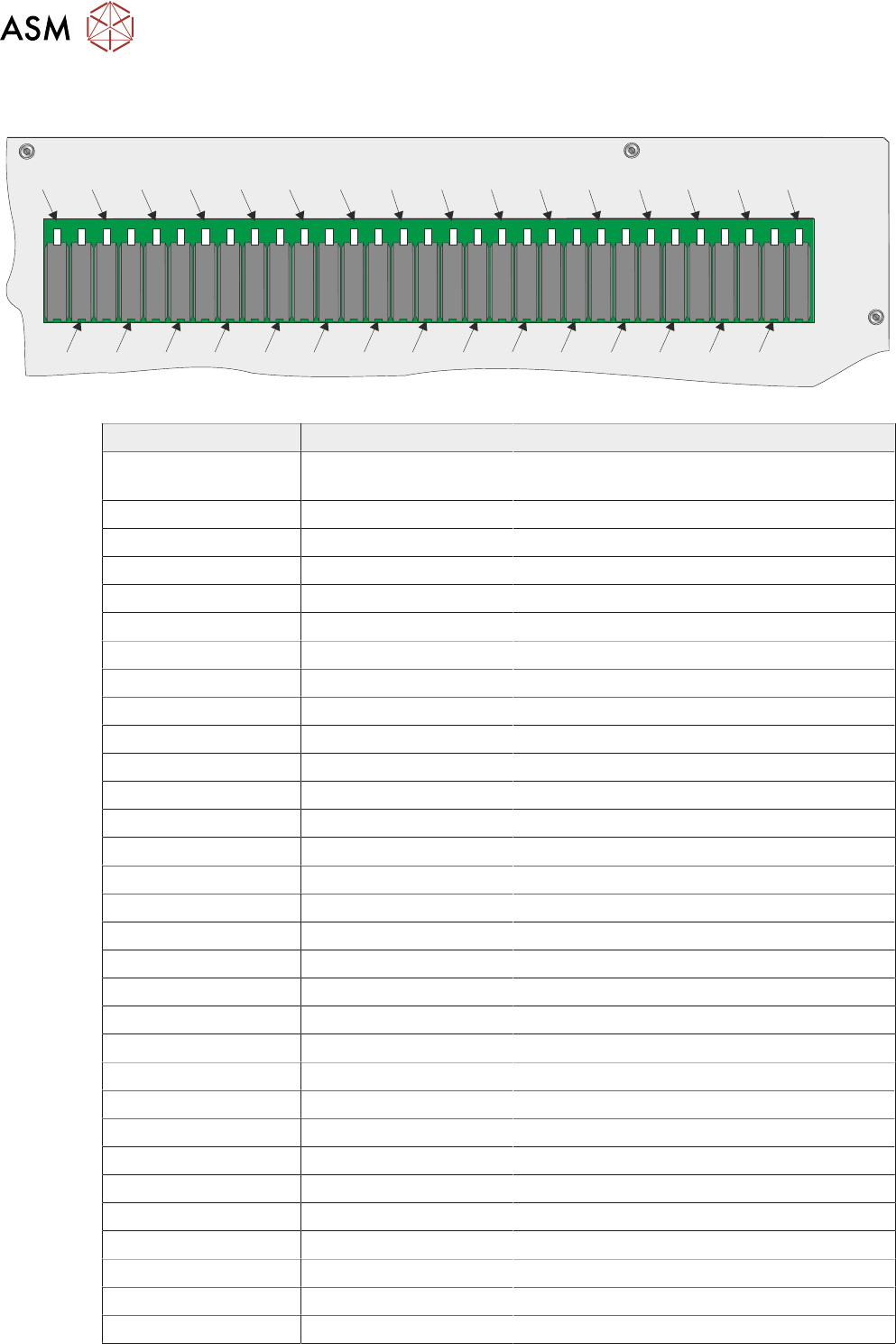

6.3.3 Circuit Breakers
CB1 CB2 CB3 CB4 CB5 CB6 CB7 CB8 CB9 CB10 CB11 CB12 CB13 CB14 CB15 CB16 CB17 CB18 CB19 CB20 CB21 C B22 CB23 CB24 CB25 CB26 CB27 C B28 CB29 CB30 CB31
CB1 CB3 CB5 CB7 CB9 CB11 CB13 CB15 CB17 CB19 CB21 CB23 CB25 CB27 CB29 CB31
CB2 CB4 CB6 CB8 CB10 CB12 CB14 CB16 CB18 CB20 CB22 CB24 CB26 CB28 CB30
CCT Breaker Current Rating CCT Breaker Function
CB1 3.15A +24V US Fans, E Stop Relay, 2 Handed
Safety Relay
CB2 3.15A +5.5V USB Hub (Spare)
CB3 1.5A -12V NextMove ES
CB4 3.15A +5.5V NextMove ES
CB5 1.5A +24V US NextMove I/F, MIU, Camera Lighting
CB6 1.5A +24V US NextMove I/F, MIU, System Lamp
CB7 1.5A +12V
CB8 3.15A +24V SW Belt Motors
CB9 3.15A +24V US EuroFlex, Stepper Logic, Fans
CB10 6.3A +24V SW Steppers
CB11 3.15A +24V US Main Machine I/O Node (Node 2)
CB12 3.15A +24V SW Main Machine I/O Node (Node 2)
CB13 1.5A +12V I/O Nodes (Nodes 2-4)
CB14 3.15A +24V US Print Carriage I/O Node (Node 3)
CB15 3.15A +24 SW Print Carriage I/O Node (Node 4)
CB16 3.15A +24 US Screen Cleaner I/O Node (Node 4)
CB17 3.15A +24 SW Screen Cleaner I/O Node (Node 4)
CB18 3.15A +24V US (Spare)
CB19 3.15A +24V SW
CB20 3.15A +24V US (Spare)
CB21 3.15A +24V SW (Spare)
CB22 1.5A +12V (Spare)
CB23 3.15A +24V US (Spare)
CB24 3.15A +24V SW (Spare)
CB25 3.15A +24V US Grid-Lok
CB26 3.15A +24V SW Grid-Lok
CB27 3.15A +24V US Internal Lighting
CB28 3.15A +24V SW Spare I/O Node
CB29 3.15A +12V Spare
CB30 1.5A +12V Barcode Readers
CB31 3.15A +24V US Servo Logic
6 POWER SUPPLY M37
6.3 M37 POWER SUPPLY ENCLOSURE
TECHNICAL REFERENCE MANUAL Vol 1 E By DEK 04/2019 71

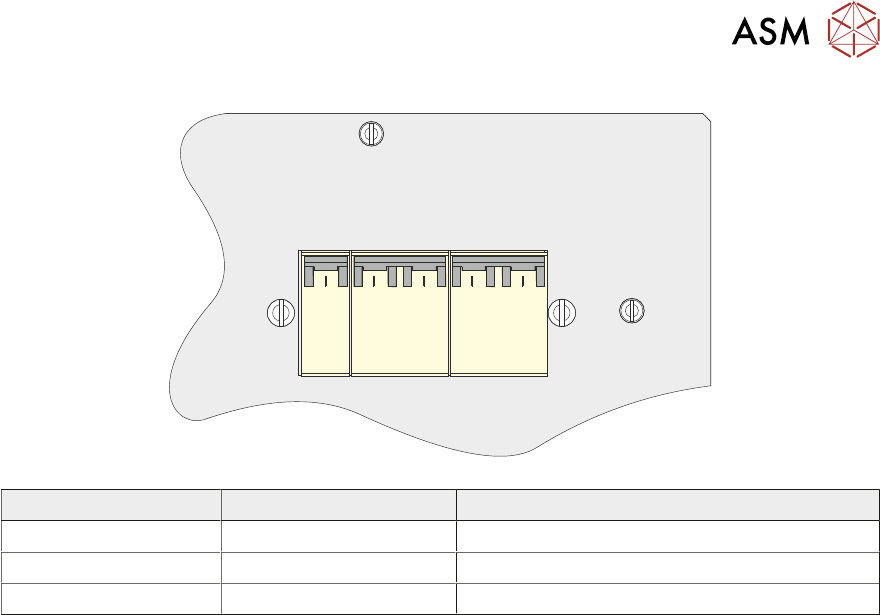

CB32
CB33
CB34
10A
Type C
10A
Type C
16A
Type C
CCT Breaker Current Rating CCT Breaker Function
CB32 10A +42V or +48V Servo DC Supply
CB33 10A Mains Supply PC and Monitor
CB34 16A Mains Supply Internal Vac Pump
