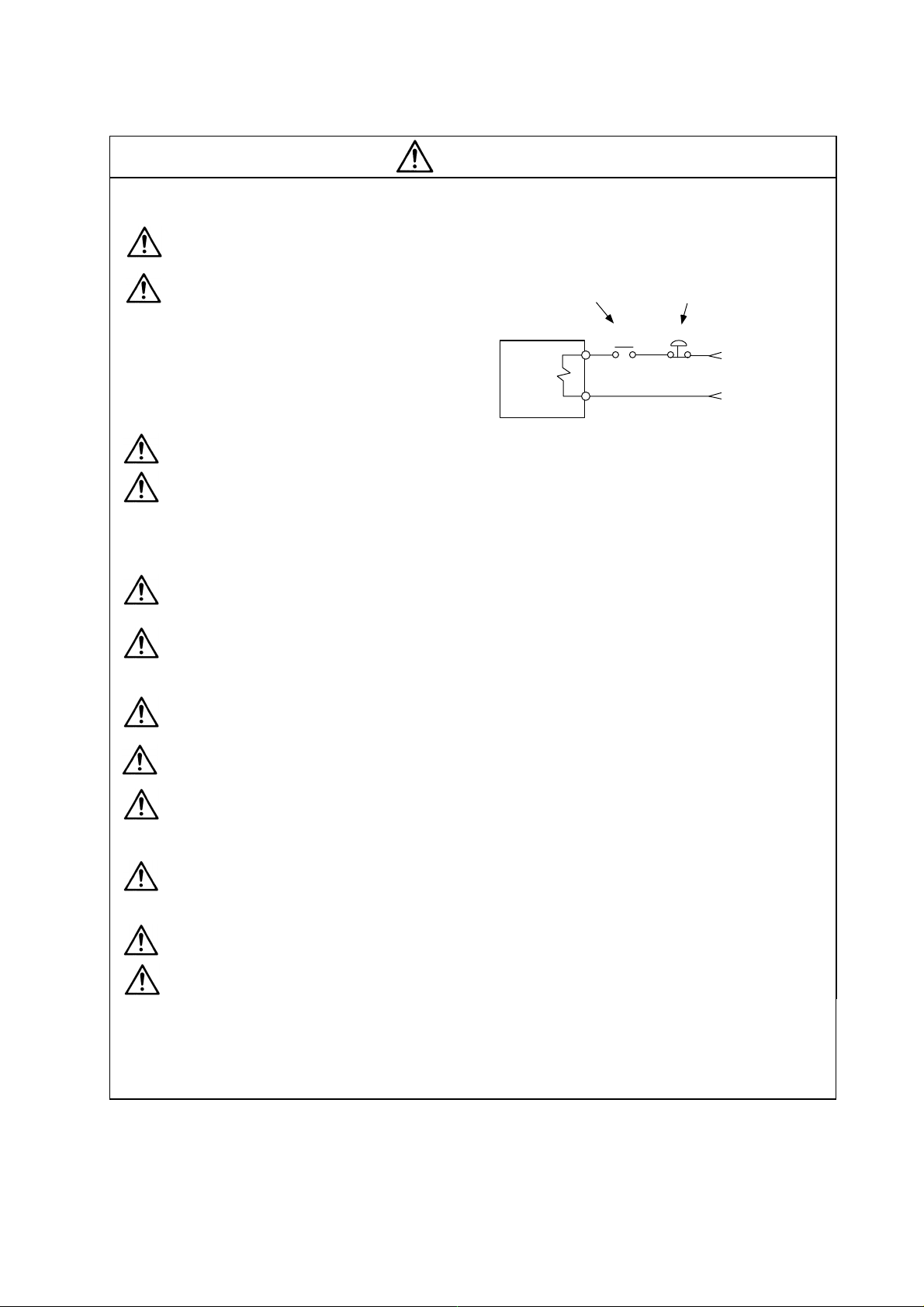

CAUTION
(5) Troubleshooting
If a hazardous situation is predicted during power failure or product trouble, use a servomotor
with magnetic brakes or install an external brake mechanism.
Use a double circuit configuration
that allows the operation circuit for
the magnetic brakes to be operated
even by the external emergency
stop signal.
MBR
24VDC
EMG
Magnetic
brake
Servomotor
Shut off with the servomotor
brake control output.
Shut off with NC brake
control PLC output.
Always turn the input power OFF when an alarm occurs.
Never go near the machine after restorin g the power after a power failure, as the machine
could start suddenly. (Desi gn the machine so that personal safety can be ensured even if the
machine starts suddenly.)
(6) Maintenance, inspection and part replacement
Always carry out maintenance and in spection after backing up the servo drive unit's prog rams
or parameters.
The capacity of the electrolytic capacitor will drop over time. To prevent secondary disasters
due to failures, replacing this part every five years when used under a normal environment is
recommended. Contact the Service Center or Service Station for replacement.
Do not perform a megger test (insulatio n resistance measurement) during inspection s.
If the battery low warning is issued, save the machining programs, tool data and parameters
with an input/output unit, and then replace the battery.
Do not short circuit, charge, overheat, incinerate or d isassemble the battery.
(7) Disposal
Treat this unit as general industrial waste . Note that MDS Series unit with a heat dissipating
fin protruding from the back of the unit contains substitute Freon. Do not dispose of this type
of unit as general industrial waste. Always return to the Service Center or Service Station.
Do not disassemble the servo drive unit or servomoto r parts.
Dispose of the battery according to local laws.
(8) General precautions
The drawings given in this Specifications and Maintenance Instruction Manual show the covers and
safety partitions, etc., removed to provide a clearer explanation. Always return the covers or partitions to
their respective places before starting operation, and always follow the instructions given in this manual.
CONTENTS
1. Installation
1-1 Installation of servomotor..................................................................................................... 1-2
1-1-1 Environmental conditions .............................................................................................. 1-2
1-1-2 Quakeproof level............................................................................................................ 1-2
1-1-3 Cautions for mounting load (prevention of impact on shaft) ......................................... 1-3
1-1-4 Installation direction ....................................................................................................... 1-3
1-1-5 Shaft characteristics ...................................................................................................... 1-4
1-1-6 Oil/water standards........................................................................................................ 1-5
1-1-7 Cable stress ................................................................................................................... 1-7
1-2 Installation of spindle motor ................................................................................................. 1-8
1-2-1 Environmental conditions .............................................................................................. 1-8
1-2-2 Shaft characteristics ...................................................................................................... 1-9
1-3 Installation of the control unit ............................................................................................. 1-10
1-3-1 Environmental conditions ............................................................................................ 1-10
1-3-2 Installation direction and clearance............................................................................. 1-11
1-3-3 Prevention of entering of foreign matter...................................................................... 1-11
1-3-4 Panel installation hole work drawings (Panel cut drawings)....................................... 1-12
1-3-5 Heating value ............................................................................................................... 1-13
1-3-6 Heat radiation countermeasures ................................................................................. 1-14
1-4 Installing the spindle detector ............................................................................................ 1-16
1-4-1 Magnetic sensor .......................................................................................................... 1-16
1-4-2 Spindle end detector.................................................................................................... 1-18
1-4-3 Spindle end PLG.......................................................................................................... 1-19
1-5 Noise measures ................................................................................................................. 1-22
2. Wiring and Connection
2-1 Part system connection diagram ......................................................................................... 2-3
2-2 Main circuit terminal block/control circuit connector............................................................ 2-4
2-2-1 Names and applications of main circuit terminal block signals and control circuit
connectors ..................................................................................................................... 2-4
2-2-2 Connector pin assignment............................................................................................. 2-5
2-3 NC and drive unit connection ......................................................................................................... 2-8
2-4 Motor and detector connection ..................................................................................................... 2-11
2-4-1 Connecting the servomotor ......................................................................................... 2-11
2-4-2 Connecting the full-closed loop system....................................................................... 2-18
2-4-3 Connecting the synchronous control system .............................................................. 2-22
2-4-4 Connection of the spindle motor.................................................................................. 2-28
2-5 Connection of power supply .............................................................................................. 2-33
2-5-1 Power supply input connection ...................................................................................... 2-34
2-5-2 Connecting the grounding cable.................................................................................. 2-37
2-5-3 Main circuit control ......................................................................................................... 2-38
2-6 Wiring of the motor brake .................................................................................................. 2-39
2-6-1 Wiring of the motor magnetic brake ............................................................................ 2-39
2-6-2 Dynamic brake unit wiring ........................................................................................... 2-41
2-7 Peripheral control wiring....................................................................................................... 2-42
2-7-1 Input/output circuit wiring ............................................................................................... 2-42
2-7-2 Spindle coil changeover .............................................................................................. 2-43
2-7-3 Wiring of an external emergency stop......................................................................... 2-46
3. Setup
3-1 Initial setup ........................................................................................................................... 3-2
3-1-1 Setting the rotary switch ................................................................................................3-2
3-1-2 Transition of LED display after power is turned ON...................................................... 3-3
3-1-3 Servo standard specifications and high-gain specifications ......................................... 3-4
3-2 Setting the initial parameters for the servo drive unit (High-gain specifications)................ 3-5
3-2-1 Setting the standard parameters ................................................................................... 3-5
3-2-2 List of standard parameters for each servomotor ....................................................... 3-11
3-2-3 Servo parameter list..................................................................................................... 3-23
3-3 Setting the initial parameters for the servo drive unit (Standard specifications)............... 3-39
3-3-1 Setting the standard parameters ................................................................................. 3-39
3-3-2 List of standard parameters for each servomotor ....................................................... 3-44
3-3-3 Servo parameter list..................................................................................................... 3-51
3-4 Restrictions on servo control ............................................................................................. 3-63
3-4-1 Restrictions of electronic gear setting value................................................................ 3-63
3-4-2 Restrictions on absolute position control..................................................................... 3-64
3-5 Setting the initial parameters for the spindle drive unit ..................................................... 3-65
3-5-1 Spindle specification parameters ................................................................................ 3-65
3-5-2 List of spindle parameters ........................................................................................... 3-70
3-6 Initial adjustment of the spindle PLG............................................................................... 3-104
3-6-1 Adjusting the PLG installation.................................................................................... 3-104
3-6-2 Z phase automatic adjustment .................................................................................. 3-110
3-6-3 Motor end PLG automatic adjustment....................................................................... 3-111
3-6-4 Spindle end PLG automatic adjustment.................................................................... 3-112
4. Servo Adjustment
4-1 D/A output specifications for servo drive unit ...................................................................... 4-2
4-1-1 D/A output specifications ............................................................................................... 4-2
4-1-2 Output data settings....................................................................................................... 4-3
4-1-3 Setting the output magnification .................................................................................... 4-3
4-2 Gain adjustment................................................................................................................... 4-4
4-2-1 Current loop gain ........................................................................................................... 4-4
4-2-2 Speed loop gain............................................................................................................. 4-4
4-2-3 Position loop gain .......................................................................................................... 4-6
4-3 Characteristics improvement ............................................................................................... 4-9
4-3-1 Optimal adjustment of cycle time .................................................................................. 4-9
4-3-2 Vibration suppression measures ................................................................................. 4-11
4-3-3 Improving the cutting surface precision....................................................................... 4-15
4-3-4 Improvement of characteristics during acceleration/deceleration .............................. 4-19
4-3-5 Improvement of protrusion at quadrant changeover................................................... 4-22
4-3-6 Improvement of overshooting...................................................................................... 4-29
4-3-7 Improvement of the interpolation control path............................................................. 4-31
4-4 Adjustment during full closed loop control......................................................................... 4-33
4-4-1 Outline.......................................................................................................................... 4-33
4-4-2 Speed loop delay compensation ................................................................................. 4-34
4-4-3 Dual feedback control (Optional function) ................................................................... 4-35
4-5 Settings for emergency stop.............................................................................................. 4-37
4-5-1 Deceleration control..................................................................................................... 4-37
4-5-2 Vertical axis drop prevention control ........................................................................... 4-39
4-6 Protective functions............................................................................................................ 4-43
4-6-1 Overload detection....................................................................................................... 4-43
4-6-2 Excessive error detection ............................................................................................ 4-43
4-6-3 Collision detection........................................................................................................ 4-44
