6. Troubleshooting 6 - 28 Alarm No. 53 Excessive error 2 The difference between the motor's actual position at servo OFF and the theoretical position exceeded the setting value. Investigation det ails In vestigation…

6. Troubleshooting

6 - 27

Alarm No.

Overload 2

With the servo, a current command exceeding 95% of the unit's maximum current continued for one

second or more. With the spindle, a load exceeding the continuous rating continued for 30 minutes or

more.

Investigation details Investigation results Remedies SV SP

The alarm occurred after ready ON

before operation starts.

Investigate item 2. 1 Did the alarm occur immediately after

READY ON?

The alarm occurred after normal

operation.

Investigate item 5.

{

The voltage is not supplied. Correctly supply the PN voltage. 2 Check that the PN voltage is supplied

to the drive unit.

Is the CHARGE lamp ON?

Approx. 300V is correctly supplied. Investigate item 3.

{

The connections are incorrect. Connect correctly. 3 Check the motor power cable (U, V,

W phases).

The power cable is not connected.

Is the cable connected to the motor

for another axis?

The connections are correct. Investigate item 4.

{

The connections are incorrect. Connect correctly. 4 Check the detector cable connection.

Is the cable connected to the motor

for another axis?

The connections are correct. Investigate item 5.

{

The machine has collided. Check the machining program and

soft limit settings.

5 Check whether the machine has

collided.

The machine has not collided. Investigate item 6.

{

The current is saturated during

acceleration/deceleration.

Increase the acceleration/

deceleration time constant.

6 Check whether the current value on

the NC Servo Monitor screen is

saturated during

acceleration/deceleration.

The current value during

acceleration/deceleration is

appropriate.

Investigate item 7.

{

The FB signal is abnormal. Replace the detector.

(With the absolute position system,

the zero point must be established.)

7 Check the detector FB.

The FB signal is normal. Replace the drive unit.

{

The load is large. Lower the load. 8 Check the load meter value.

The load is not large. Investigate item 9.

{

There is a problem. Adjust the PLG output waveform. 9 Check the PLG output waveform.

Normal Replace the drive unit.

{

Alarm No.

Excessive error 1

The difference between the motor's actual position at servo ON and the theoretical position exceeded

the setting value.

Investigation details Investigation results Remedies SV SP

The excessive error detection width is

too small.

Servo standard value:

SV023 =

RAPID

PGN1

÷ 2

For the spindle, a value larger than

the droop amount:

Droop amount =

Spindle rotation speed

No. of pulses

position loop gain

Set appropriate values. 1 Check the excessive error detection

width.

SV023 (Servo)

SP102 (Orientation control)

SP154, SP155 (C-axis control)

SP177/bitD, SP186 (Spindle

synchronous control)

SP193/bitD, SP218 (Synchronous

tap)

Appropriate values are set. Investigate item 2.

{ {

The polarity is reversed. Correctly set the parameters. 2 Check the position detector polarity.

SV017/bit4 (Servo)

SP097/bit5 (Orientation control)

SP129/bit5 (C-axis control)

SP177/bit5 (Spindle synchronous

control)

SP193/bit5 (Synchronous tap

control)

Normal. Investigate item 3.

{ {

3 Check the alarm No. "51" items.

{ {

6. Troubleshooting

6 - 28

Alarm No.

Excessive error 2

The difference between the motor's actual position at servo OFF and the theoretical position exceeded

the setting value.

Investigation details Investigation results Remedies SV SP

NC parameter (M60S Series) #1064

svof = 0

Investigate item 2. 1 Check the follow-up function while

the NC is in the servo OFF state.

NC parameter (M60S Series) #1064

svof = 1

Investigate item 3.

{

The axis moved. Adjust the brakes, etc., so that the

axis does not move.

2 Check whether the axis has moved

during servo OFF, and check the

motor brake operation.

The axis has not moved. Investigate item 3.

{

The excessive error detection width is

too small.

SV026 =

RAPID

PGN1

÷ 2

Set an appropriate value.

3 Check the excessive error detection

width.

SV026 (Servo)

An appropriate value is set. Check for problems on the NC side,

such as the position FB follow-up

control.

{

Alarm No.

Excessive error 3

The motor current was not detected when the excessive error 1 alarm occurred.

Investigation details Investigation results Remedies SV SP

The voltage is not supplied. Correctly supply the PN voltage. 1 Check that the PN voltage is supplied

to the drive unit.

• Is the CHARGE lamp ON?

Approx. 300V is correctly supplied. Investigate item 2.

{

The connections are incorrect. Connect correctly. 2 Check the motor power cable (U, V,

W phases).

• The power cable is not connected.

• Is the cable connected to the motor

for another axis?

The connections are correct. Replace the drive unit.

{

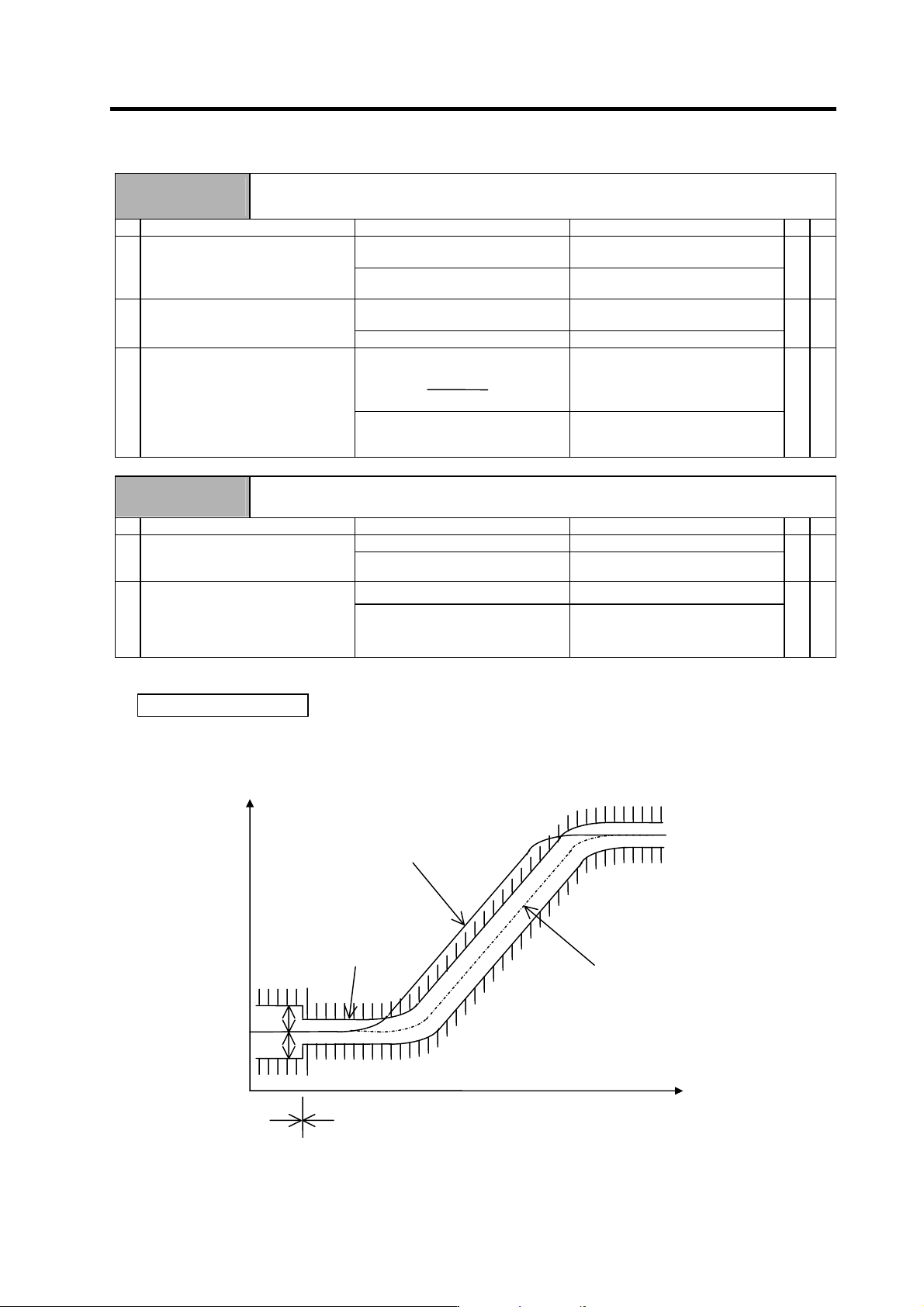

Supplement (servo)

Depending on the ideal machine position in respect to the command position, the actual machine

position could enter the actual shaded section shown below, which is separated more than the

distance set in OD1.

Ideal machine position

Servo OFF

Command position

Servo ON

Time

OD1

OD2

Position

6. Troubleshooting

6 - 29

Alarm No.

Collision detection 1 G0

When the collision detection function is valid, the disturbance torque exceeded the collision detection

value during rapid traverse (G0).

Investigation details Investigation results Remedies SV SP

The machine has collided. Check the machining program and

soft limit settings.

1 Check whether the machine has

collided.

The machine has not collided. Increase the detection level (SV060).

(The detection level should have an

allowance and be set as approx.

1.5-times the maximum disturbance

torque.)

{

Alarm No.

Collision detection 1 G1

When the collision detection function is valid, the disturbance torque exceeded the collision detection

level during cutting feed (G1).

Investigation details Investigation results Remedies SV SP

The machine has collided. Check the machining program and

soft limit settings.

1 Check whether the machine has

collided.

The machine has not collided. Increase the detection level (SV035.

clG1).

(Set the detection level larger than

the maximum cutting load.)

{

Alarm No.

Collision detection 2

When the collision detection function is valid, the command torque reached the motor's maximum

torque.

Investigation details Investigation results Remedies SV SP

The machine has collided. Check the machining program and

soft limit settings.

1 Check whether the machine has

collided.

The machine has not collided. Investigate item 2.

{

The current is saturated during

acceleration/deceleration.

Investigate item 3. 2 Check whether the current value on

the NC Servo Monitor screen is

saturated during

acceleration/deceleration.

The current value during

acceleration/deceleration is

appropriate.

Investigate the cause of the load

fluctuation.

{

The constant can be changed. Increase the acceleration/

deceleration time constant.

3 Can the acceleration/deceleration

time constant be changed?

The constant cannot be changed. Set to ignore collision detection

method 2.

{

Alarm No.

Orientation feedback error

After orientation was completed, the command and feedback error exceeded the parameter setting.

Investigation details Investigation results Remedies SV SP

The cable is not correctly shielded. Shield the cable. 1 Check the PLG cable shield.

The cable is correctly shielded. Investigate item 2.

{

The cable is incorrectly connected or

broken.

Replace the cable. 2 Check the PLG cable connection.

Normal Investigate item 3.

{

There is a problem. Adjust the PLG output waveform. 3 Check the PLG output waveform.

Normal Replace the drive unit

{
