Appendix 3. EMC Installation Guidelines A3 - 11 40A item (250V Series) (500V Series) [Unit: mm] Dimension Model A B C HF3005A-TM HF3010A-TM HF3015A-TM HF3020A-TM 180 170 130 HF3030A-TM HF3040A-TM 260 155 140 HF3050A-TM 1…
Appendix 3. EMC Installation Guidelines
A3 - 10
Appendix 3-6-3 Power line filter
(1) Power line filter for 200V
HF3000A-TM Series for 200V
Features
• 3-phase 3-wire type (250V series, 500V series)
• Compliant with noise standards German Official Notice Vfg243, EU Standards EN55011 (Class B)
• Effective for use with IGBT inverter and MOS-FET inverter.
• Easy mounting with terminal block structure, and outstanding reliability.
Application
• Products which must clear noise standards German Official Notice Vfg243 and EU Standards
EN55011 (Class B).
• For input of power converter using advanced high-speed power device such as IGBT MOS-FET.
Specifications (250V series)
Part name
HF3005A
-TM
HF3010A
-TM
HF3015A
-TM
HF3020A
-TM
HF3030A
-TM
HF3040A
-TM
HF3050A
-TM
HF3060A
-TM
HF3080A
-TM
HF3100A
-TM
HF3150A
-TM
Rated voltage
250VAC
Rated current
5A 10A 15A 20A 30A 40A 50A 60A 80A 100A 150A
Leakage current
1.5mA MAX 250VAC 60Hz
<Example of measuring voltage at noise terminal> ... Measured with IGBT inverter
German Official Notice Vfg243 measurement data EU Standards EN55011 (Class B) measurement data
Appendix 3. EMC Installation Guidelines
A3 - 11
40A item
(250V Series) (500V Series)
[Unit: mm]
Dimension
Model
A B C
HF3005A-TM
HF3010A-TM
HF3015A-TM
HF3020A-TM
180 170 130
HF3030A-TM
HF3040A-TM
260 155 140
HF3050A-TM 170
HF3060A-TM
290 190
230
HF3080A-TM
HF3100A-TM
405 220
HF3150A-TM 570 230
210
<Typical characteristics>
<Circuit diagram>
<Outline dimensions>
Appendix 3. EMC Installation Guidelines
A3 - 12

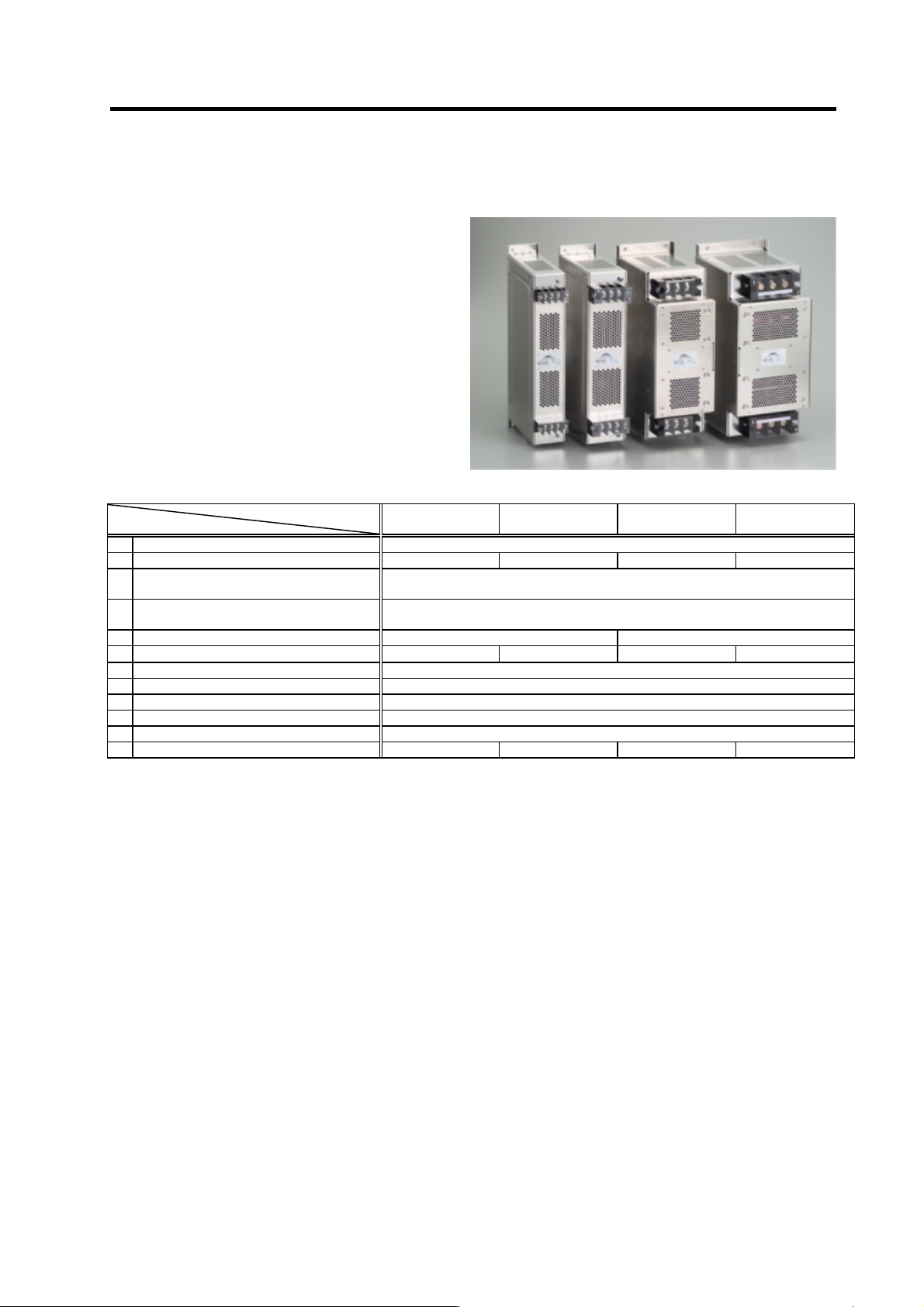

MX13 Series 3-phase high attenuation noise filter for 200V
Features
• Perfect for mounting inside control panel:
New shape with uniform height and depth
dimensions
• Easy mounting and maintenance work:
Terminals are centrally located on the
front
• Complaint with NC servo and AC servo
noise:
High attenuation of 40dB at 150KHz
• Safety Standards:
UL1283, CSA22.2 No.8, EN133200
• Patent and design registration pending
Specifications
Type
Item
MX13030 MX13050 MX13100 MX13150
1 Rated voltage (AC)
3-phase 250VAC (50/60Hz)
2 Rated current (AC)
30A 50A 100A 150A
3
Test voltage (AC for one minute across
terminal and case)
2500VAC (100mA) at 25°C, 70% RH
4
Insulation resistance (500VDC across
terminal and case)
100MΩ min. at 25°C, 70% RH
5 Leakage current (250V, 60Hz)
3.5 mA max. 8 mA max.
6 DC resistance
30 mΩ max. 11 mΩ max. 5.5 mΩ max. 3.5 mΩ max.
7 Temperature rise
30°C max
8 Working ambient temperature
–25°C to +85°C
9 Working ambient humidity
30% to 95% RH (non condensing)
10 Storage ambient temperature
–40°C to +85°C
11 Storage ambient humidity
10% to 95% RH (non condensing)
12 Weight (typ)
2.8kg 3.9kg 11.5kg 16kg
(Note) This is the value at Ta≤50°C.
Refer to the following output derating for Ta>50°C.
Contact: Densei-lambda Co., Ltd. Telephone: 03-3447-4411 (+81-3-3447-4411)
Fax: 03-3447-7784 (+81-3-3447-7784)
http://www.densei-lambda.com
