Appendix 3. EMC Installation Guidelines
A3 - 9
Appendix 3-6-2 Ferrite core
A ferrite core is integrated and mounted on the plastic case.
Quick installation is possible without cutting the interface cable or power cable.
This ferrite core is effective against common mode noise, allowing measures against noise to be taken
without affecting the signal quality.
A
B
φC
φD
A
B
D
E
φC
A
B
φ
C
φ
D
φ
C
φ
D
E
A
B

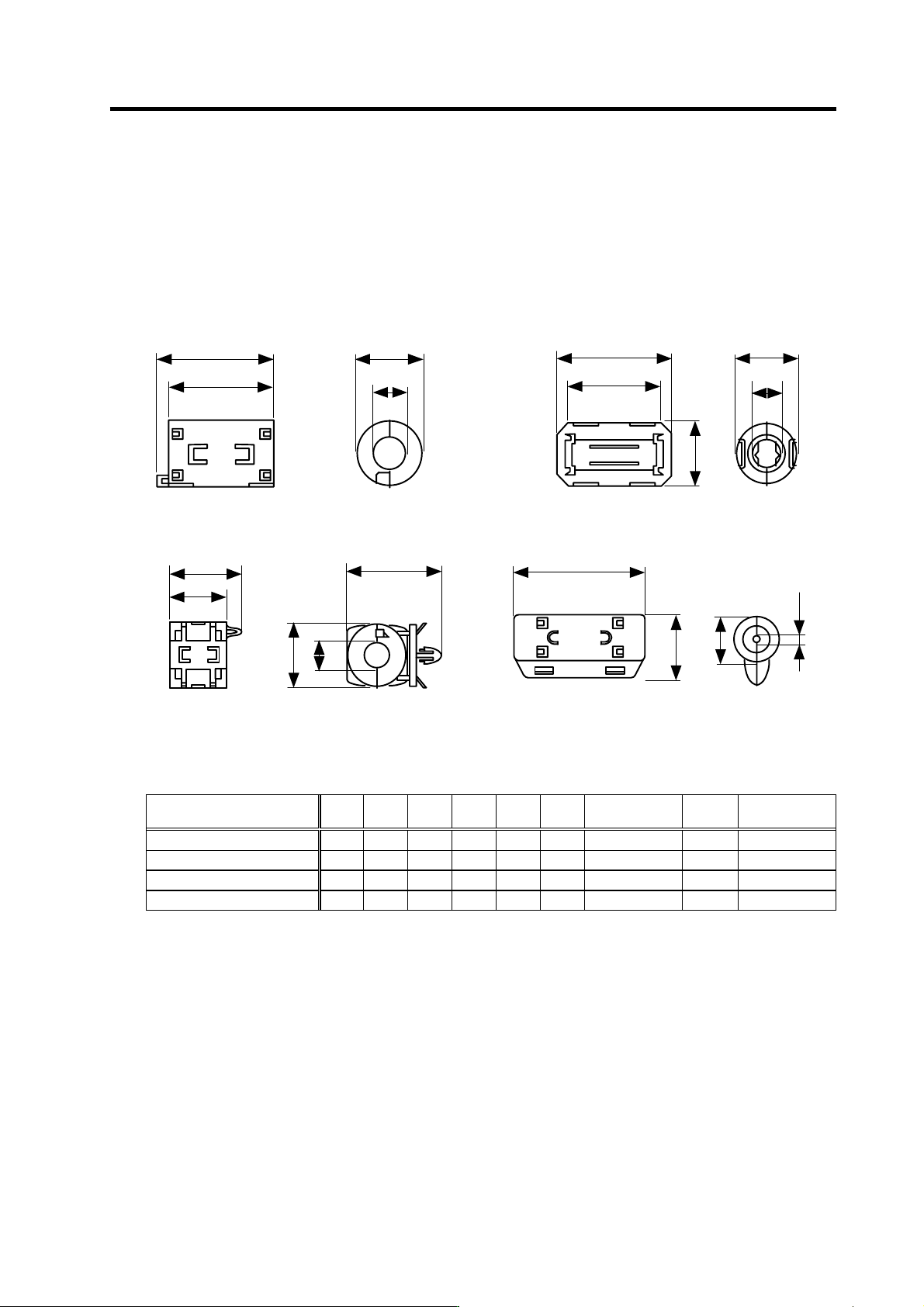

Recommended ferrite core
TDK ZCAT Series
Shape and dimensions
ZCAT type
ZCAT-B type ZCAT-C type
ZCAT-A type
Fig.2 Fig.1
Fig.3 Fig.4
[Unit: mm]
Part name Fig. A B C D E
Applicable
cable outline
Weight
Recommended
ferrite core
ZCAT3035-1330 (-BK)*
1
1 39 34 13 30 --- 13 max. 63 ○
ZCAT2035-0930-M (-BK) 2 35 29 13 23.5 22 10 to 13 29
ZCAT2017-0930-M (-BK) 3 21 17 9 20 28.5 9 max. 12
ZCAT2749-0430-M (-BK) 4 49 27 4.5 19.5 --- 4.5 max. 26
*1 A fixing band is enclosed when shipped.
ZCAT-B type: Cabinet fixed type, installation hole ø4.8 to 4.9mm, plate thickness 0.5 to 2mm
ZCAT-C type: Structured so that it cannot be opened easily by hand once closed.
Appendix 3. EMC Installation Guidelines
A3 - 10
Appendix 3-6-3 Power line filter
(1) Power line filter for 200V
HF3000A-TM Series for 200V
Features
• 3-phase 3-wire type (250V series, 500V series)
• Compliant with noise standards German Official Notice Vfg243, EU Standards EN55011 (Class B)
• Effective for use with IGBT inverter and MOS-FET inverter.
• Easy mounting with terminal block structure, and outstanding reliability.
Application
• Products which must clear noise standards German Official Notice Vfg243 and EU Standards
EN55011 (Class B).
• For input of power converter using advanced high-speed power device such as IGBT MOS-FET.
Specifications (250V series)
Part name
HF3005A
-TM
HF3010A
-TM
HF3015A
-TM
HF3020A
-TM
HF3030A
-TM
HF3040A
-TM
HF3050A
-TM
HF3060A
-TM
HF3080A
-TM
HF3100A
-TM
HF3150A
-TM
Rated voltage
250VAC
Rated current
5A 10A 15A 20A 30A 40A 50A 60A 80A 100A 150A
Leakage current
1.5mA MAX 250VAC 60Hz

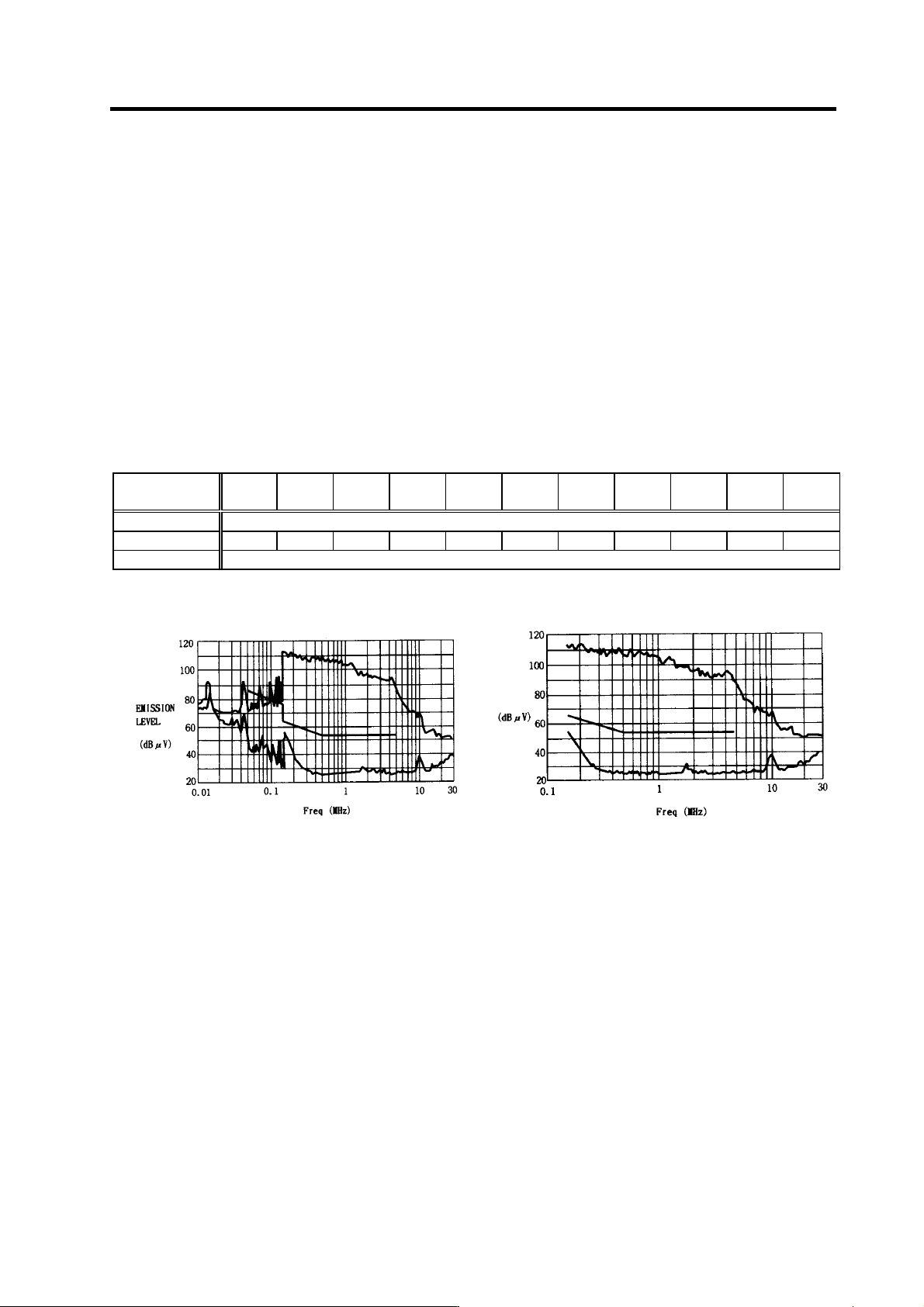

<Example of measuring voltage at noise terminal> ... Measured with IGBT inverter
German Official Notice Vfg243 measurement data EU Standards EN55011 (Class B) measurement data
Appendix 3. EMC Installation Guidelines
A3 - 11
40A item
(250V Series) (500V Series)
[Unit: mm]
Dimension
Model
A B C
HF3005A-TM
HF3010A-TM
HF3015A-TM
HF3020A-TM
180 170 130
HF3030A-TM
HF3040A-TM
260 155 140
HF3050A-TM 170
HF3060A-TM
290 190
230
HF3080A-TM
HF3100A-TM
405 220
HF3150A-TM 570 230
210

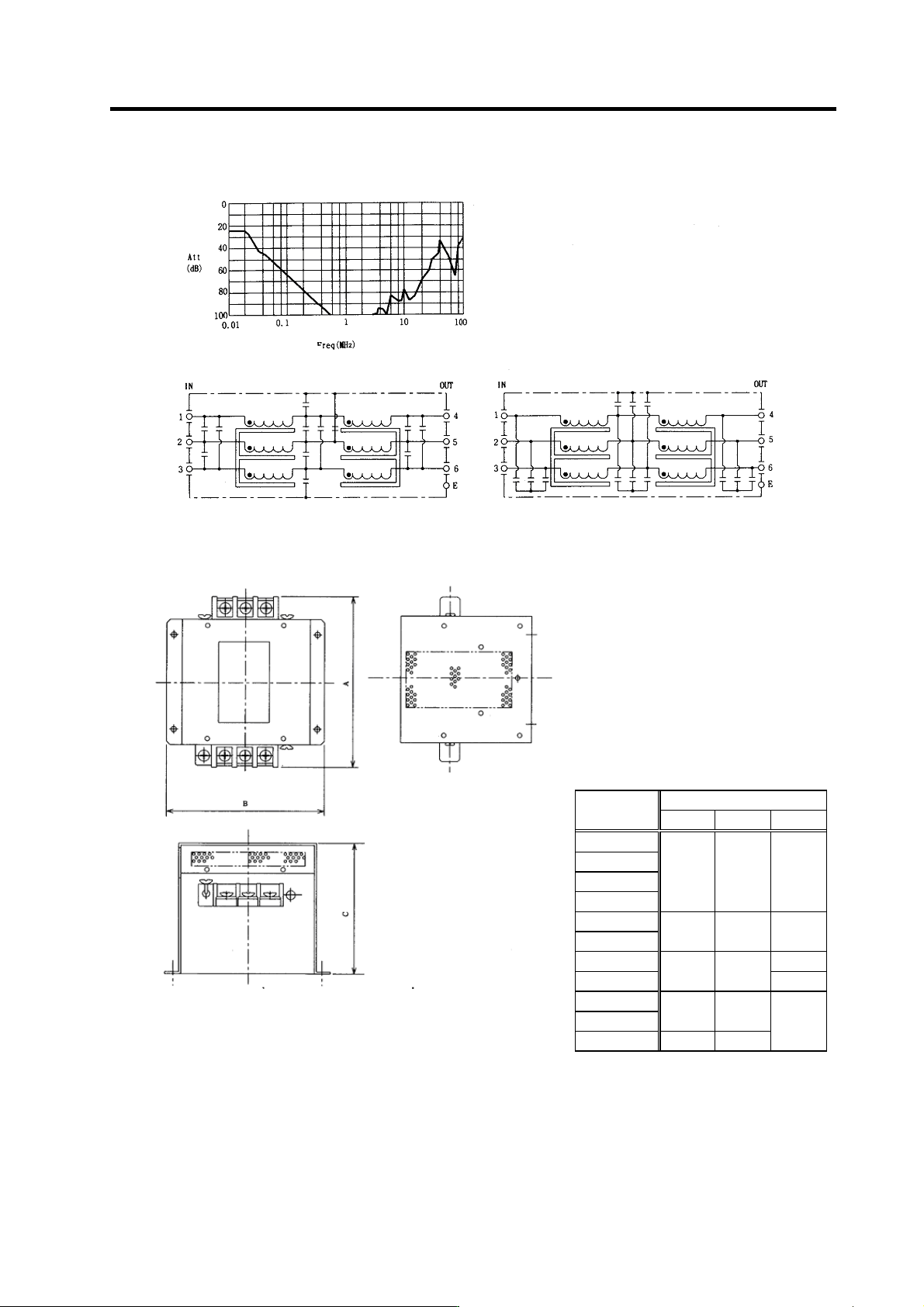

<Typical characteristics>
<Circuit diagram>
<Outline dimensions>
