FK-9F98-05 CP- 643E Training Text for Service Engineers Edition 5.0 Chapter 1. Initial Set-up [ 1 / 2 ] Fuji Machine Mfg. Co., Ltd. Okazaki SMT Equipment Quality Assurance Dept. Technical Support Div. Section No.2 1- 1 C…
FK-9F98-05 CP-643E Training Text for Service Engineers
Edition 5.0 Contents- List of Current Pages
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
Technical Support Div. Section No.2
VIII
Notes:
FK-9F98-05 CP-643E Training Text for Service Engineers
Edition 5.0 Chapter 1. Initial Set-up [1/2]
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
Technical Support Div. Section No.2
1-1
Chapter 1 Initial Set-up
1.1 Machine Leveling
Equipment: 0.02mm/1m track level
1. Level the machine by placing leveling blocks at the positions illustrated below.
2. Use bolts A, B, E, and F, for initial leveling.
3. Confirm leveling in the X and Y directions once all the bolts have been securely
tightened.
4. Once the initial leveling is completed, lock the remaining bolts shown in the
diagram below.
1.2 Machine Utilities
Refer to the CP-6 series Mechanical Reference Manual for information regarding the utility
connections needed for this machine.
• Power
• Air
For stability reasons, it is
better to keep the leveling
bolts as short as possible.

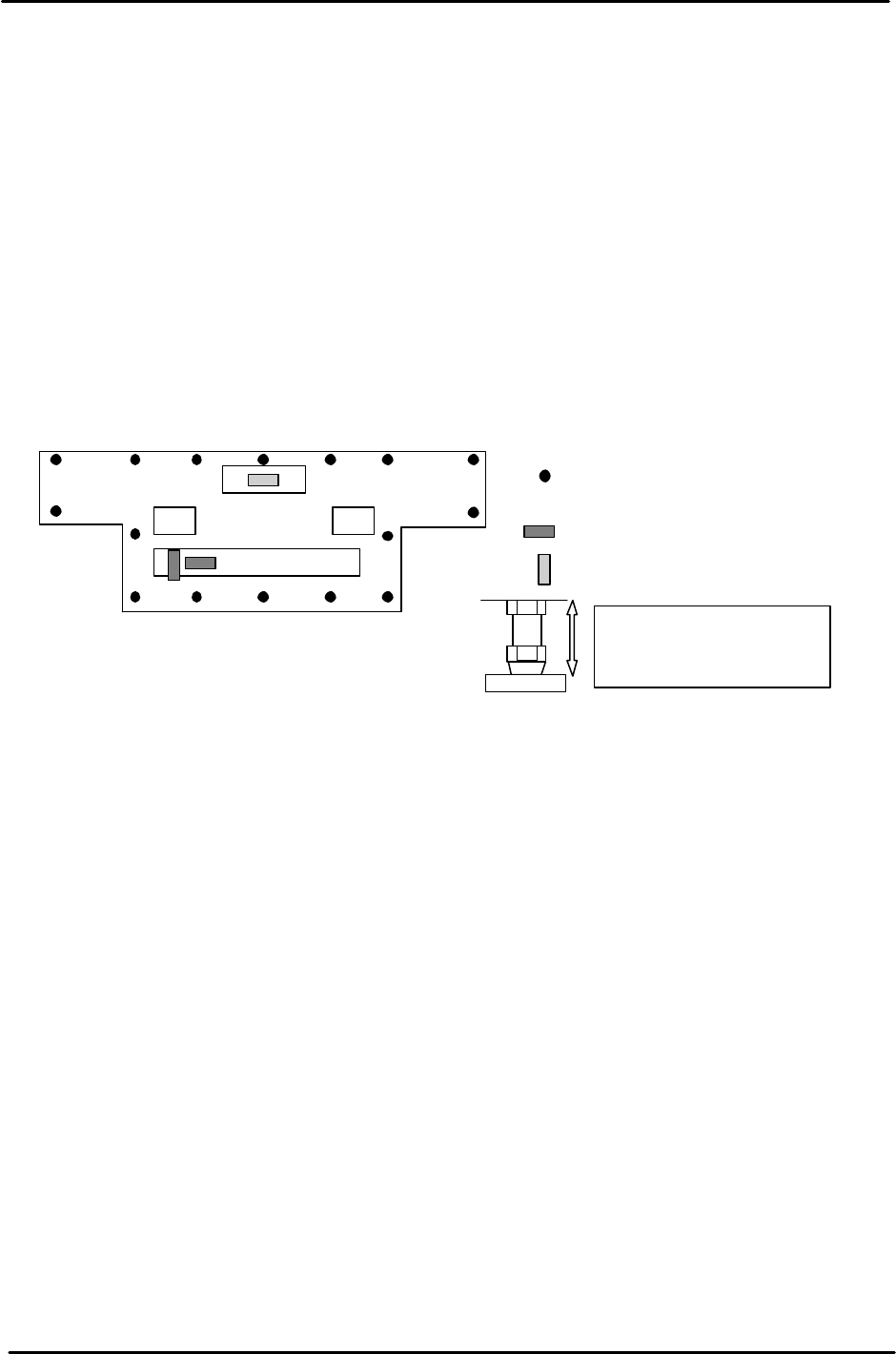

Leveling positions.
= Spirit Level (tolerance 0.04/1000mm)
= Spirit Level (tolerance 0.08/1000mm)
A B
I
H
G
C
D
E
CP-643E
J
K
L M
N
P
O
F
Figure 1
FK-9F98-05 CP-643E Training Text for Service Engineers
Edition 5.0 Chapter 1. Initial Set-up [2/2]
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
Technical Support Div. Section No.2
1-2
Notes:
