FK-9F98-05 CP-643E Training Text for Service Engineers Edition 5.0 Chapter 2. Cam Box Adjustment [ 4 /6] Fuji Machine Mfg. Co., Ltd. Okazaki SMT Equipment Quality Assurance Dept. Technical Support Div. Section No.2 2- 4 …
FK-9F98-05 CP-643E Training Text for Service Engineers
Edition 5.0 Chapter 2. Cam Box Adjustment [3/6]
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
Technical Support Div. Section No.2
2-3
3. Set a dial indicator on the FRQ cam lever (Station 12). Make sure that when the cam lever is at
the low point, the cam axis is between 107 and 267 degrees.
4. After checking the above, ensure the A-axis scale matches the B-axis reference scale.
Notes:
1. In all cases above, the maximum difference between the stopping and starting points
should be within +/- 1 degrees.
Example: If the nozzle index stops at 122 degrees it should begin moving at 254 +/-
1degree.
2. The exact timing of movement varies a little from machine to machine. (but still within
tolerance). The main point is to ensure that the stopping and stating points are
balanced.
2.6 Helical Gear Backlash Check
1. Check the backlash of the large helical gear using a dial indicator with shafts A, F, K, and P at
station 11. (180 degrees)
2. The backlash between the two helical gears should be within 0.030 to 0.080mm.
3. The backlash may be adjusted by moving the theta index unit to the right or left.
107
267
269
105
No movement
range
(Within 2 degrees on each side)
Stopping point
Starting point
Figure 5
Theta Index Unit
Figure 6
FK-9F98-05 CP-643E Training Text for Service Engineers
Edition 5.0 Chapter 2. Cam Box Adjustment [4/6]
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
Technical Support Div. Section No.2
2-4

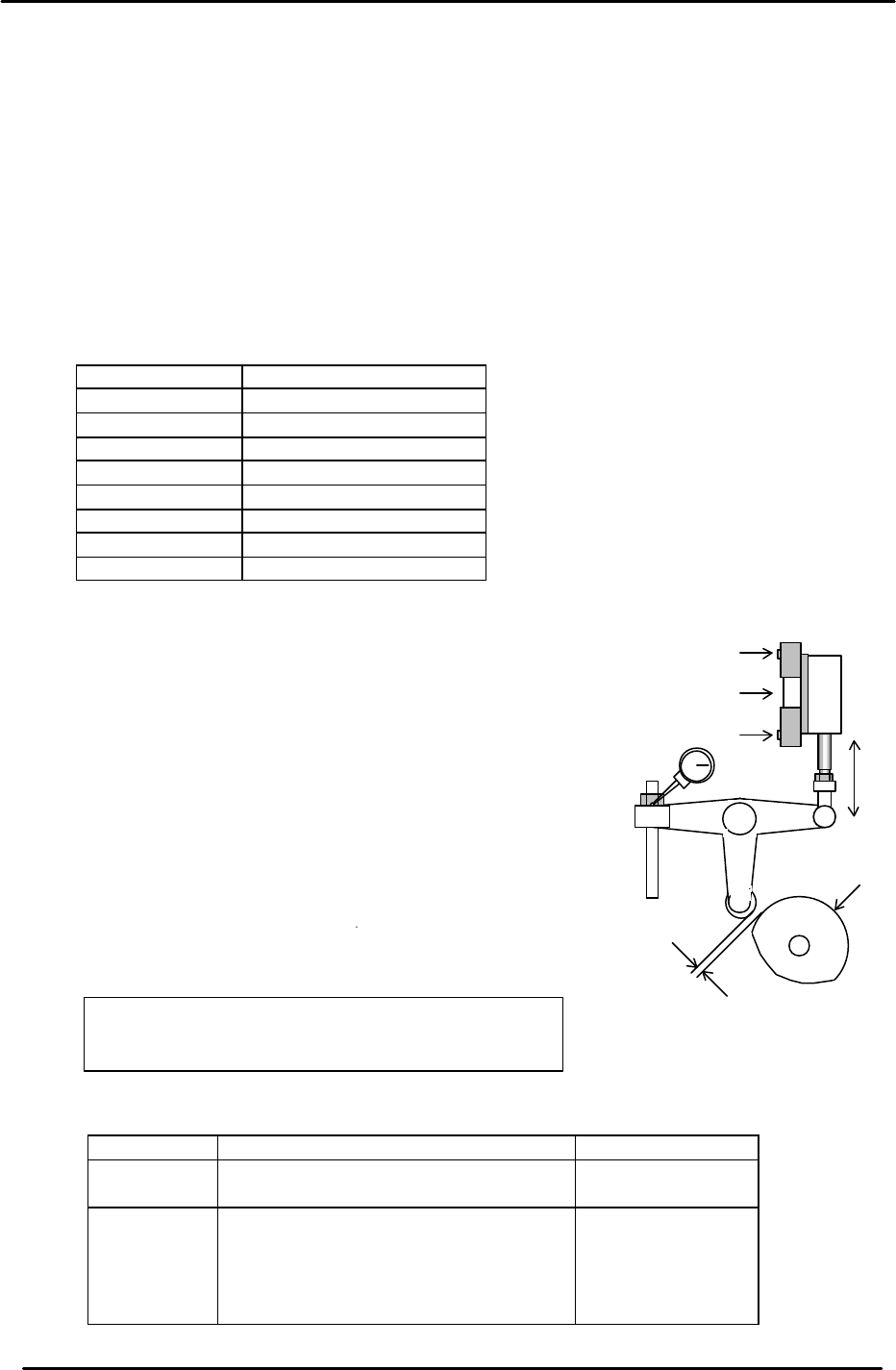

2.7 3st PQ and 13st PRQ Cylinder Rod Adjustment
1. Release the air and make sure that the cam follower is in contact with both sides of the barrel
cam when the angle is at 257 degrees. If not, adjust the stroke of the cylinder rod end.
2. Set the air regulator in the cam box to 0.4MPa. Tighten the lock nut and mark with a white
marker.
3. Check each cylinder sensor. The sensor must turn ON when the cam angle is between 210 to
212 degrees. (Ensure that the cam follower moves to the right when both PQ and PRQ rotate
90 degrees, and moves to the left when rotated 270 degrees.)
<I/O à Standard à (IN or OUT)>
OUT - Y024 PQ ROT, 90 DEG
OUT - Y025 PQ ROT, 270 DEG
IN - X045 PQ ROT, 90 DEG
IN - X044 PQ ROT, 270 DEG
OUT - Y02E PRQ ROT, 90 DEG
OUT - Y02F PRQ ROT, 270 DEG
IN - X051 PRQ ROT, 90 DEG
IN - X050 PRQ ROT, 270 DEG
2.8 Cam Lever Stopper Adjustment
1. Adjust the Cam lever stopper at stations 1, 3, 10, 11, 13
and 18.
2. Turn each station’s solenoid valve ON at zero degrees.
(The cam will be in contact with the cam roller when the
solenoid valve is ON, and apart when the valve is OFF.)
3. Set a dial gauge on the cam lever to measure the
clearance at each valve location.
4. When the solenoid valve is OFF, adjust the air cylinder
stroke so that the dial indicator reads within the ranges
shown below.
<I/O à Standard I/O à OUT>
Station I/O port Appropriate Value
1 ST
11 ST
OUT - Y020 PICKUP SOL ON
OUT - Y028 PLACE SOL ON
0.05 to 0.07mm
3 ST
10 ST
13 ST
18 ST
1ST feeding
OUT - Y022 PQ ROT SOL ON
OUT - Y030 FQ SOL ON
OUT - Y02C PRQ ROT SOL ON
OUT - Y02A NOZ SOL ON
OUT - Y026 TAPE FEED SOL ON
0.10 to 0.15mm
The solenoid valve must be OFF
,
except when
making adjustments. [Top= ON] [Bottom = Off]
ON
OFF
Solenoid Valve
Clearance
CAM
Figure 7
FK-9F98-05 CP-643E Training Text for Service Engineers
Edition 5.0 Chapter 2. Cam Box Adjustment [5/6]
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
Technical Support Div. Section No.2
2-5

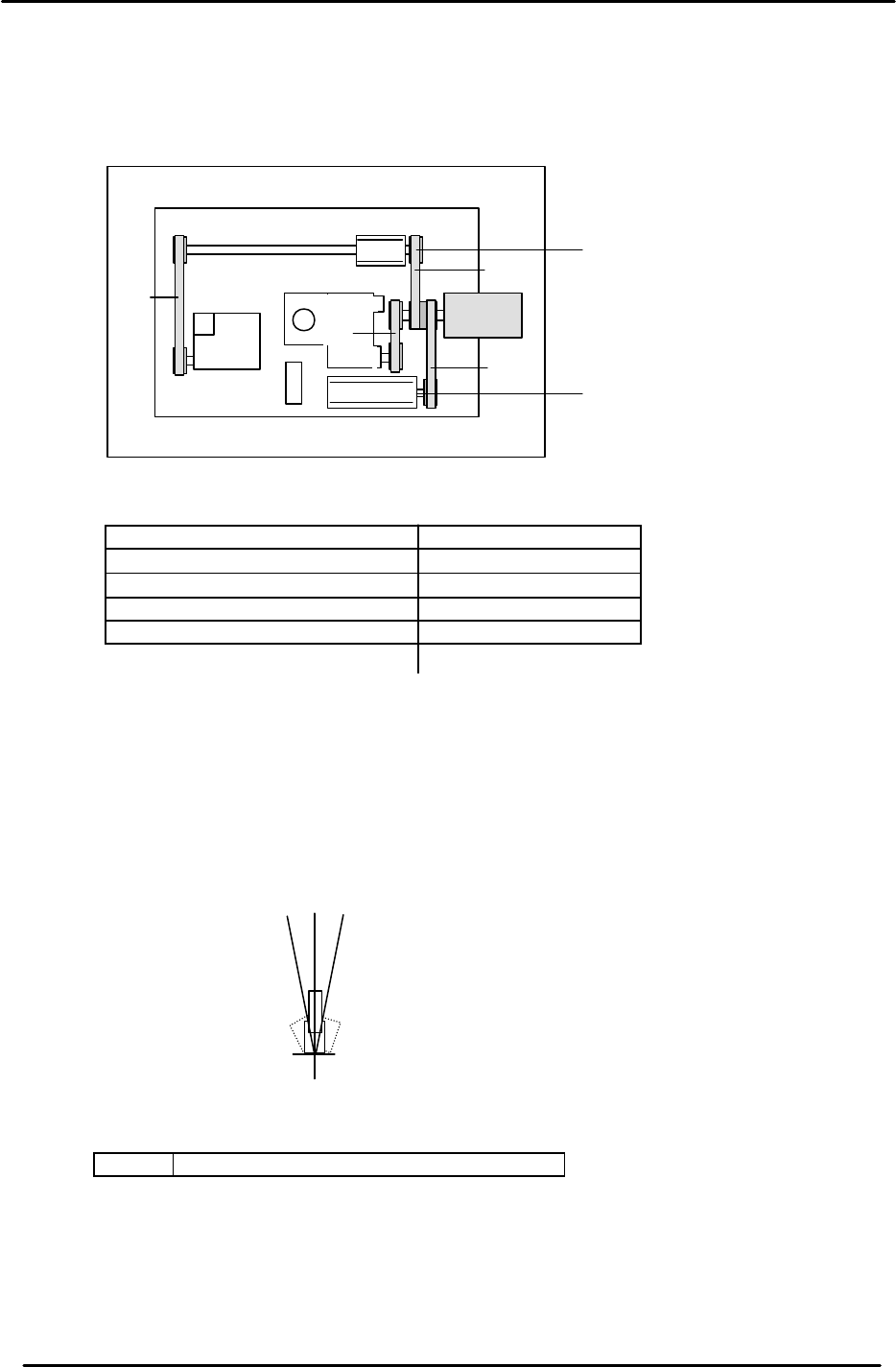

2.9 Cam-axis Timing Belt Tension Adjustment
Timing Belt Tensions in Cam box
Axis Appropriate value (Hz)
¬ = Cam Axis A to Cam Motor 112.0 ± 5
- = Cam Axis B to Cam Motor 83.5 ± 5
® = Nozzle Index to Cam Motor 198.0 ± 5
¯ = Cam Axis B to Theta Index 72.0 ± 5
2.10 Cam Axis Origin Flag Adjustment
1. Set the cam angle to zero.
2. The center of the dog must align with the center of the sensor at cam 0. (0±1 degree)
Note: If the flag is centered, the sensor should turn OFF at 5 degrees on either side of 0.
<I/O à Servo I/O 1 à IN>
SX006 CAM ZERO POS (Cam Origin Position)
3. Confirm that the debugging dog next to the zero set sensor is tightened.
“A “ Cam
“B“ Cam
¬
-
®
¯
Figure 8
0
- 5
+ 5
