FK-9F98-05 CP- 643E Training Text for Service Engineers Edition 5.0 Chapter 5. Loader and Conveyor Adjustment [ 15 / 28 ] Fuji Machine Mfg. Co., Ltd. Okazaki SMT Equipment Quality Assurance Dept. Technical Support Div. S…

FK-9F98-05 CP-643E Training Text for Service Engineers

Edition 5.0 Chapter 5. Loader and Conveyor Adjustment [14/28]

Fuji Machine Mfg. Co., Ltd. Okazaki

SMT Equipment Quality Assurance Dept.

Technical Support Div. Section No.2

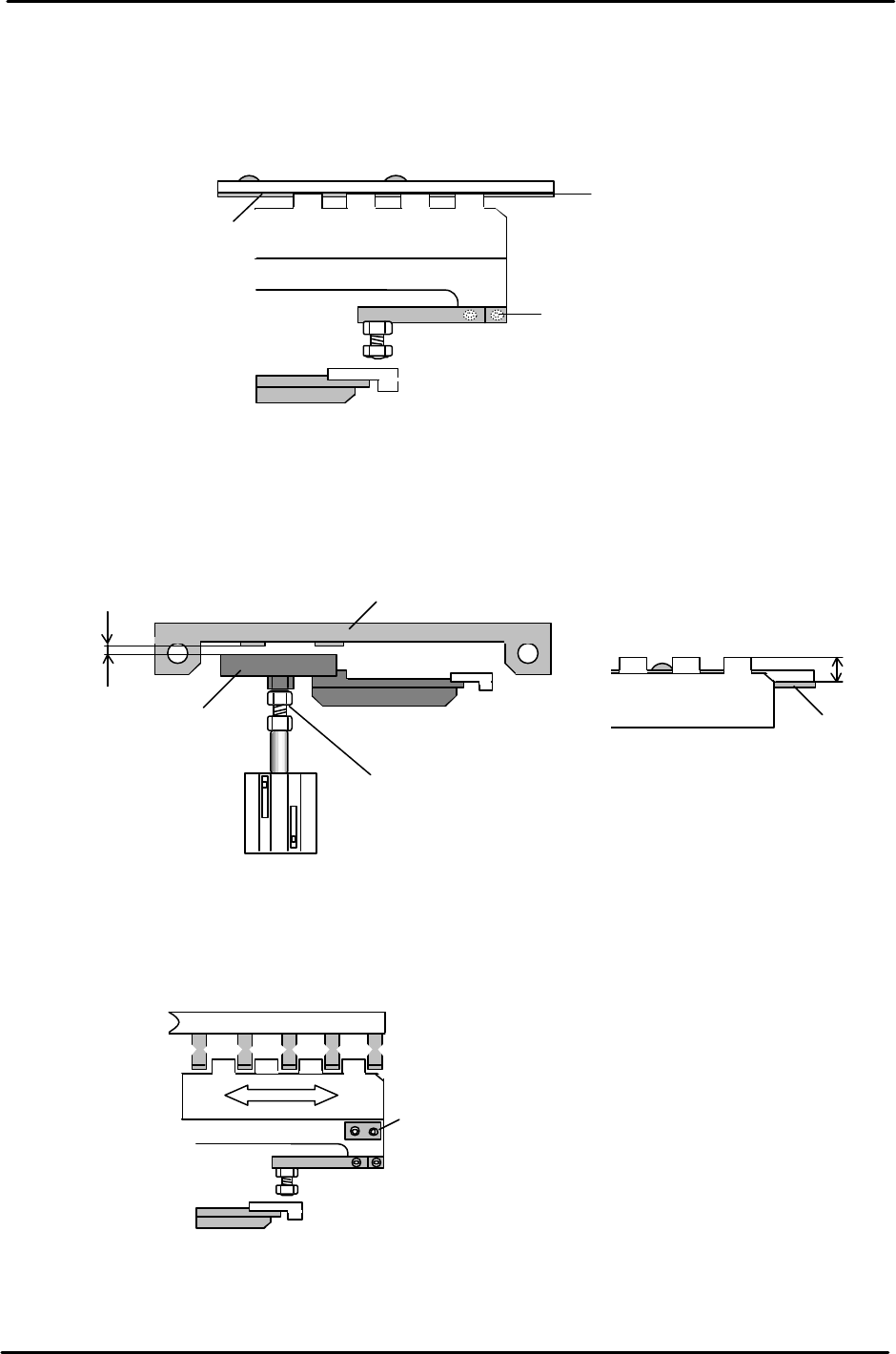

5.16 IN and OUT Conveyor PCB Lifter

1. Lower the PCB lifter for the IN/OUT conveyor and adjust the lifter plate (after

loosening the mounting screws) to align with the center of the conveyor belt.

2. Adjust the clearance between the PCB detection sensor bracket and the plate shown below

between 0.5 to 1.0mm, by adjusting the cylinder rod end.

3. Move the IN and OUT carriers to the backward end position. Loosen the lifter plate mounting

screws and adjust so the clearance between the carrier claws and lifter plate is uniform.

Mounting

Screws located

at both ends of the lifter plate.

(accessible with the lifter down)

Figure 24

Conveyor belt

Lifter Plate

Mounting Screws

Figure 22

Conveyor Belt

11mm

Plate

Sensor bracket

0.5 to 1.0mm

Cylinder rod end

Figure 23

FK-9F98-05 CP-643E Training Text for Service Engineers

Edition 5.0 Chapter 5. Loader and Conveyor Adjustment [15/28]

Fuji Machine Mfg. Co., Ltd. Okazaki

SMT Equipment Quality Assurance Dept.

Technical Support Div. Section No.2

4. To set the lifter height, place a board on the In conveyor, open the carrier claws, raise the lifter,

close the carrier claws and lower the lifter. (The Pcb is now held by the carrier)

5. Raise the lifter when the carrier claw clamps the board.

6. Set a dial gauge on the board as illustrated (two gauges are recommended) Since the dial gauge

cannot normally read 1.2mm, use a 1mm feeler gauge when setting up the dial gauge before

raising the lifter. (Set 1 end first, then the other)

7. When the lifter is raised, the dial gauge should read 0.2 +/-0.1mm. If out of tolerance, adjust the

four bolts as indicated.

8. After adjustment, the lifter should raise the PCB off the carrier claws by 1.2mm.

9. For the lifter cylinder sensors, turn both the up and down end sensors ON first. Set the sensors

at a position 0.5mm further in towards the ON position.

10. Check sensor reaction in I/O

LX01E In-Lifter Upper limit Check LX03E Out-Lifter Upper Limit Check

LX01F In-Lifter Lower Limit Check LX03F Out-Lifter Lower Limit Check

Upper end adjustment bolt (x 4)

Figure 26

1.20mm

<Lifter

Down

0 (using 1mm feeler gauge)

0.2 +/- 0.1 (when lifter is raised)

Figure 25

FK-9F98-05 CP-643E Training Text for Service Engineers

Edition 5.0 Chapter 5. Loader and Conveyor Adjustment [16/28]

Fuji Machine Mfg. Co., Ltd. Okazaki

SMT Equipment Quality Assurance Dept.

Technical Support Div. Section No.2

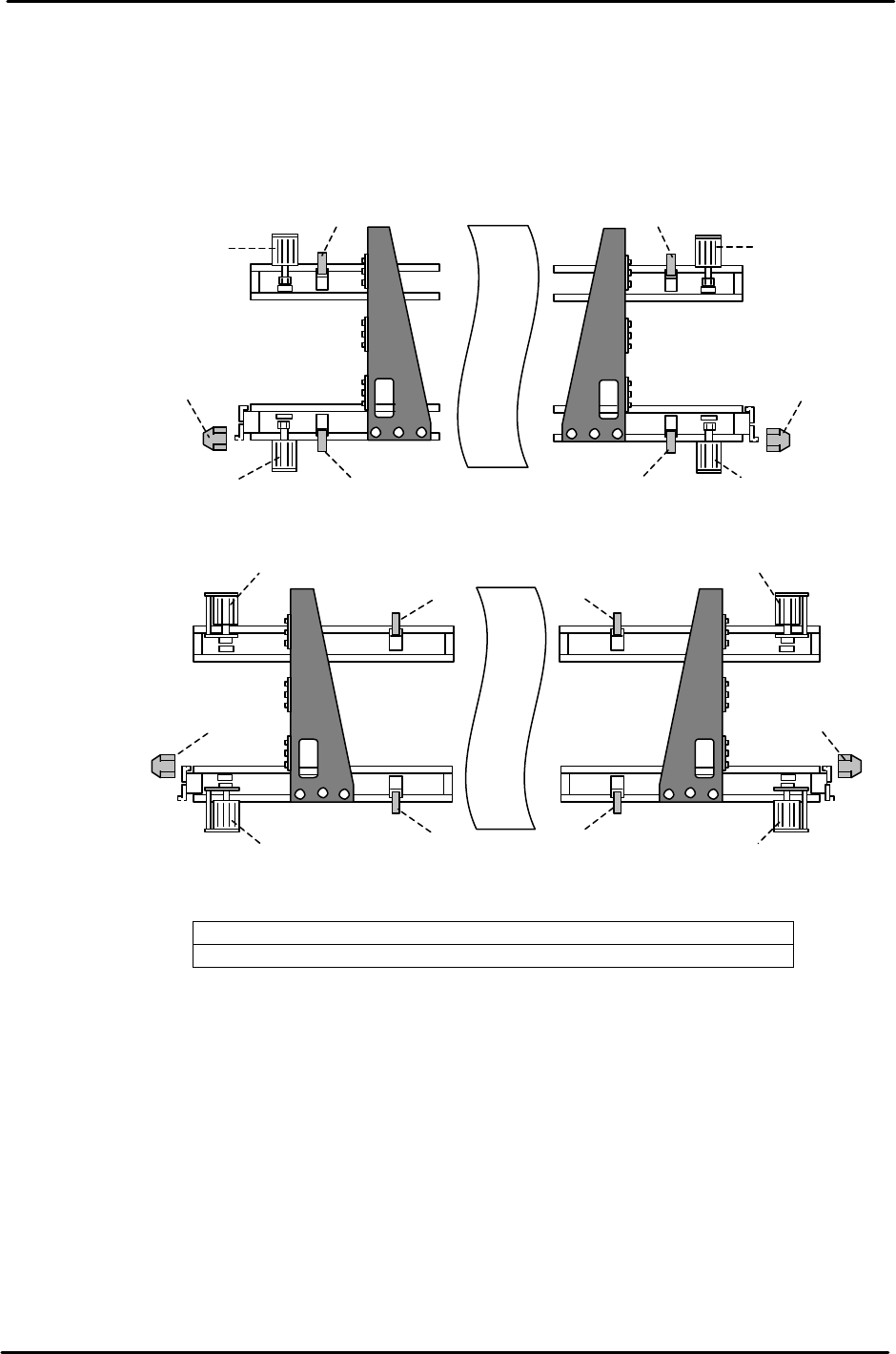

5.17 Loader System Sensor Positions

1. Refer to Fig. 27 for sensor locations along the loader system.

1. Carrier retract end sensor 3.Carrier claw close- end sensor

2. Carrier claw open-end sensor 4. Carrier advance end sensor

2 3

Figure 27
