Samsung Component Placer CP-45F(V)/FS Reference Manual
ii
About Safety
For correct and safe operation of this machine, regulations and instructions related to
safety mentioned in this manual should be always observed.
The basic points to be observed while in operating this machine are as follows:
Repair and maintenance of this machine not contained in this manual shall be
performed by the authorized company service personnel. No repair and
maintenance should be done by customers on his or her own. Unexpected
accidents may occur.
Do not insert a part of a human body (hand, head, etc.) within the range of
motion of the driving part during the operation of this machine. That can lead to
personal injury.
Hand should be placed on the operation panel or near the EMG switch
(emergency stop switch) of the teaching box while teaching or operating the
machine so that the machine can be stopped on short notice in case of an
emergency.
Do not use the machine where inflammable gas is present or contamination is
severe.
Cautions to be exercised for the safety are described as follows in this manual.
Danger
If the instructions following this symbol are not
followed, serous accidents could occur, or death or
serious injury of the operator could happen. Be sure
to follow the instructions.
Warning
If the instructions following this symbol are not
followed, serous accidents could occur, or serious
injury of the operator could happen. Be sure to follow
the instructions.
Caution
If the instructions following this symbol are not
followed, damage of machine hardware, software,
and data could occur or the operator could be
injured. Be sure to follow the instructions.
Preface
iiiiii
Safety Precaution
Following labels described in each section are attached on specific position of this
machine. Follow the instructions on each label for operating this machine safely. If a label
has come off or has damaged, put a new one on a proper position referring to the
following figures. For ordering a new label or offering any comment, questions, please
contact to the business department or the C/S Company (STS) designated by Samsung
Techwin Co., Ltd..
Front View of the Machine
The following labels are attached on the front part of this machine.

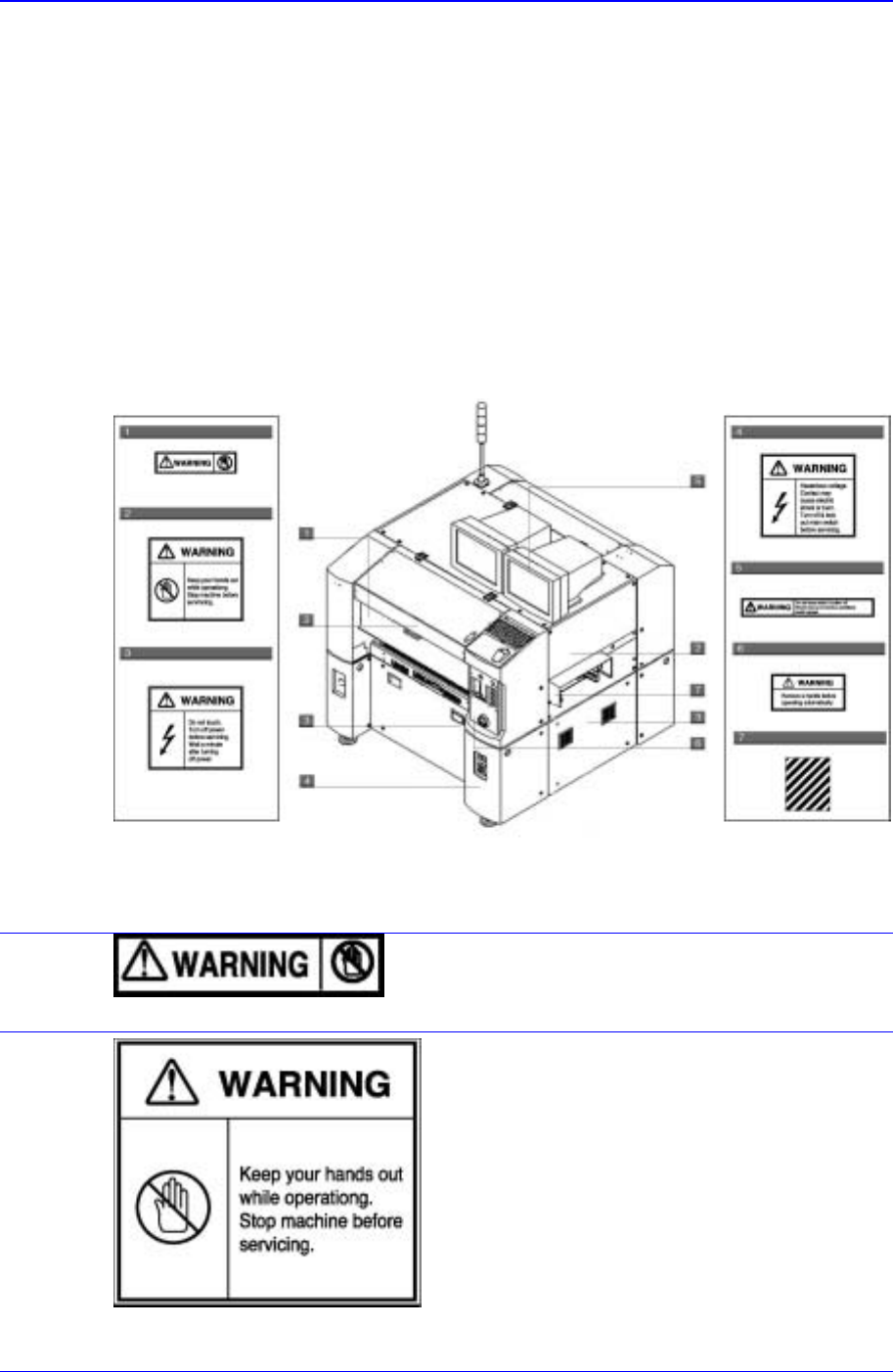

Figure 0-1. Safety labels attached on the front part of the machine
Do not put a hand in during operation.
Part where this label is attached contains
moving parts, it is very dangerous if the user
disassembles any part or open the cover when
the moving part is maneuvering.
Stop the machine before servicing.
Stop the machine before repair or maintenance
or error troubleshooting.
Do not dismantle the head area. It could cause
a serious damage to the head area.
Samsung Component Placer CP-45F(V)/FS Reference Manual
iv
If the cover is removed from the area
where this label is attached, it could
result in an electric shock.
When it is necessary to remove the
cover for repair or maintenance,
disconnect power, wait a little while, and
remove the cover.
A
s high voltage flows inside the cover
and in the area near the connector, take
precautions against electric shock. Be
sure to disconnect the main power
source and install a lock before
maintenance or repair.
Do not remove the safety device. It could
cause personal injuries or serious
problems.
Remove the handler before automatic
operation.
Caution: Safety Colors and Contrast Colors
Combination of Safety yellow and black may be
used to indicate temporary or permanent risk
locations. – locations where there is moving
part(Conveyor).
