Pr eventive Maintenance 1-17  Check the lubricants on the ball screw . Insufficient lubricants on the rails could cause unusual noise during operation of the m a chine. Solution  Clean the ball screw of any contaminati…

Samsung Component Placer CP-45F(V)/FS Reference Manual

1-16

 Clean the rail of any contamination or dust, and apply grease if necessary.

 Apply grease through the grease nipple.

1.2.2.3. X-axis Ball Screw

Inspection

 Check the ball screw for discoloration or dust.

 Check the lubricants on the ball screw. Insufficient lubricants on the rails could cause

unusual noise during operation of the machine.

Solution

Clean the ball screw of any contamination or dust, and apply grease if necessary.

1.2.2.4. Y-axis Ball Screw

Inspection

 Check the ball screw for discoloration or dust.

Grease

Preventive Maintenance

1-17

 Check the lubricants on the ball screw. Insufficient lubricants on the rails could cause

unusual noise during operation of the machine.

Solution

 Clean the ball screw of any contamination or dust, and apply grease if necessary.

 Apply grease through the grease nipple.

Figure 1-9. Y axis ball screw grease nipple

1.2.2.5. X,Y Axis Coupling

Inspection

 Check to see if the fastening strength of the coupling is normal.

Solution

 Tighten the fastening bolt of the coupling.

1.2.3. Conveyor System

1.2.3.1. PCB Conveyor Belt

Inspection

 Check the tension of the belt to see if it is too tight or too loose.

 Check the belt for abnormal wear.

 Check the driving motor pulley for abnormal wear.

 Check the support idler for abnormal wear.

 Check the belt to see if it has shifted in position or is coming off.

Figure 1-10. PCB Conveyor Belt

Solution

 Use the support idler for the motor to adjust the tension of the belt if it seems too tight

or too loose.

 Contact the service center to acquire replacement for the belt if an abnormal wear has

Support Idler

Y-axis ball screw grease nipple

X Frame

Samsung Component Placer CP-45F(V)/FS Reference Manual

1-18

been found.

1.2.3.2. Lead Screw for Adjusting Conveyor Width

Inspection

 Look for components, dust or discoloration of the lead screw.

 Insufficient lubricant on the lead screw can cause difficulty in adjusting the width of

the conveyor. Check the lubricant condition.

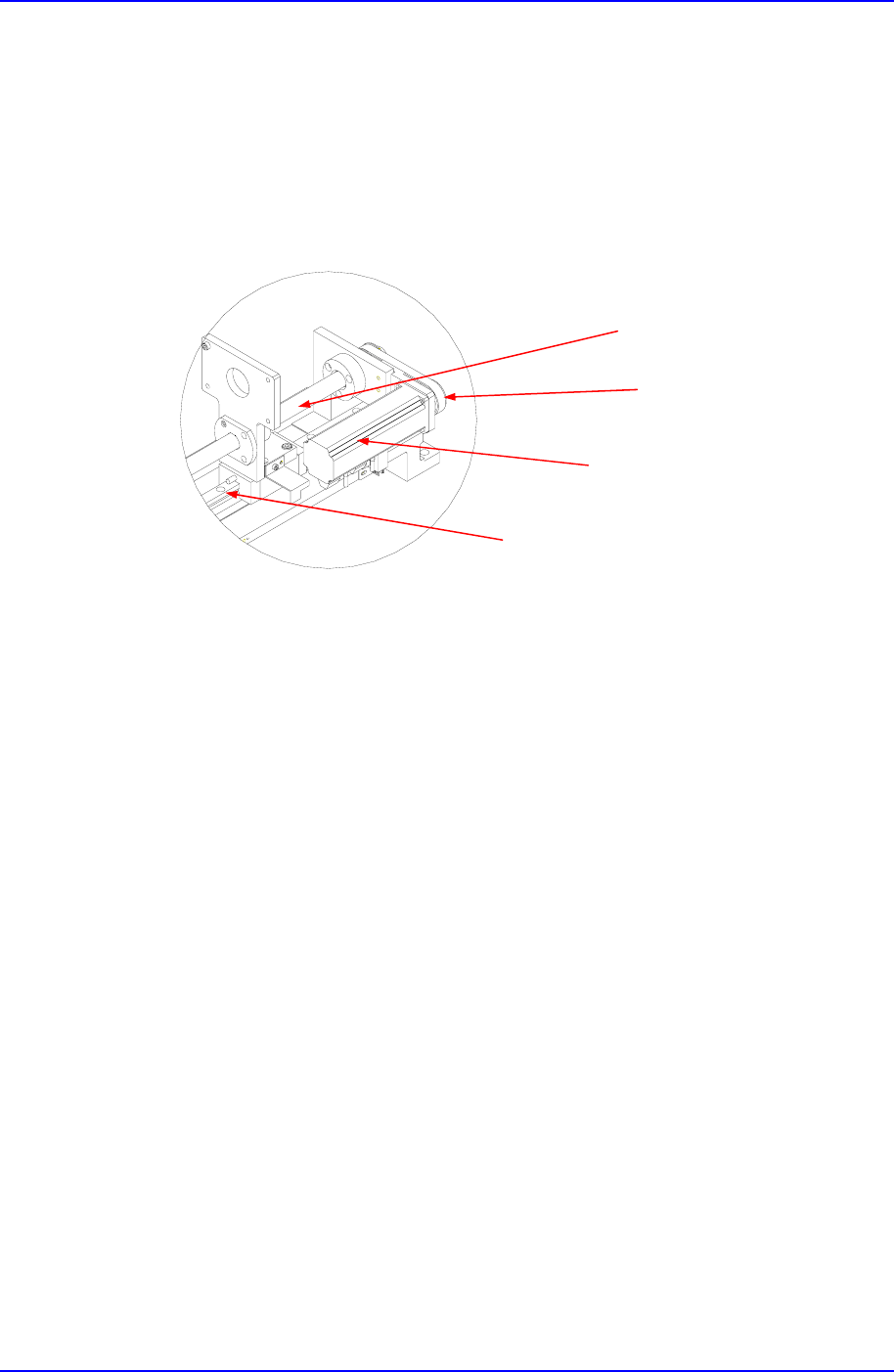

Figure 1-11. Lead Screw for Adjusting Conveyor Width

Solution

 Eliminate the dust and contamination and apply grease to the lead screw if necessary.

1.2.3.3. L/M Guide Rail for Adjusting Conveyor Width

Inspection

 Look for components, dust or discoloration of the rails.

 Insufficient lubricant on the rails can cause difficulty in adjusting the width of the

conveyor. Check the lubricant condition.

Solution

 Eliminate the dust and contamination from the rails and apply grease to the lead

screw if necessary.

 Apply grease through the grease nipple.

1.2.3.4. Belt and Pulley for Adjusting Conveyor Width On Automatic Operation

Inspection

 Check the tension of the belt to see if it is too tight or too loose.

 Check the belt for abnormal wear.

 Check the pulley for abnormal wear.

Solution

 If the tension of the belt is adjusted with the screw for belt tension adjustment, the

motor might be affected. When you need to adjust the tension, please contact our C/S

center immediately for A/S.

Lead Screw

Belt & Pulley

L/M Guide Rail

Srevo Motor
