Samsung Component Placer CP-45F(V)/FS Reference Manual

1-12

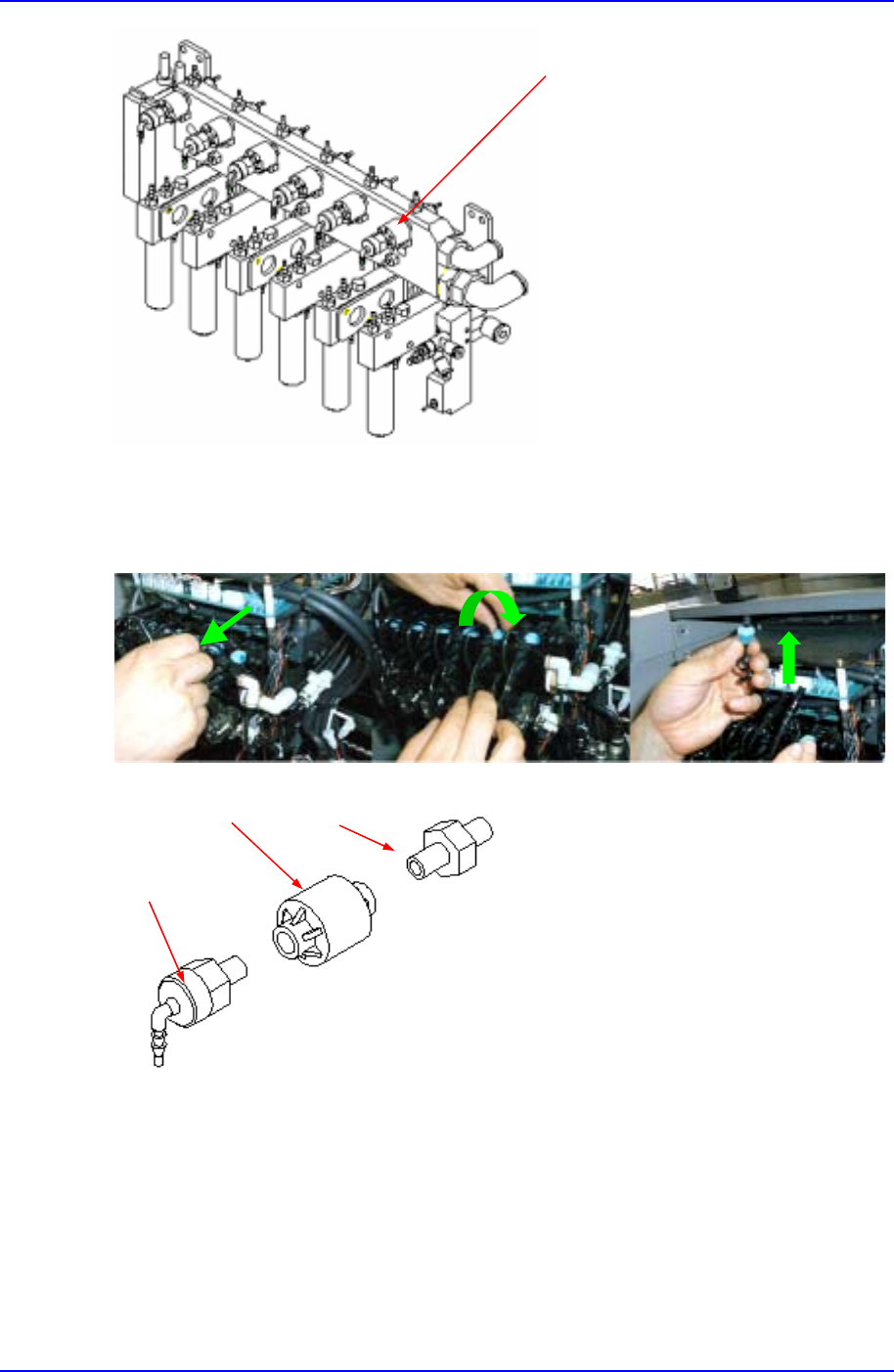

Figure 1-3. Vacuum Filter Inspection

Solution

When the filter is contaminated, remove the filter as in the picture, replace it with a new

one, and clean up inside the spindle to remove contamination in it.

Figure 1-4. Replacing the filter

1.2.1.6. Spindle

Inspection

Contamination (such as solder paste, etc.) in the spindle can cause pickup problems. The

inside of the spindle must be cleaned in case of contamination.

Solution

 Remove the rotary joint.

Vacuum Filter

Filter

Fitting

Nipple

Preventive Maintenance

1-13

 Place a soft cloth beneath the spindle and pour a small amount of alcohol from the top

of the spindle.

 Using an air gun, completely blow out any residue or alcohol that may be inside the

spindle.

Figure 1-5. Remove the contamination in the spline shaft

1.2.1.7. Air Section

Inspection

 Check to see if there is any abnormal air leak from the air distributor or the fitting

joint area of the solenoid valve.

Check to see if there is any air leak from the blow chamber attached to the solenoid

valve.

Figure 1-6. Vacuum Generator

Solution

 If there is air leak from the fitting joint area, tighten it firmly enough but not enough

to break it. If the fitting is damaged, please contact our C/S center for A/S.

 When the blow chamber is not tightened enough, air leak can occur. Tighten it so that

Caution

Make sure the alcohol does not spill out from the spindle

when pouring the alcohol into the spindle and make sure to

block the bottom of the spindle with a piece of cloth.

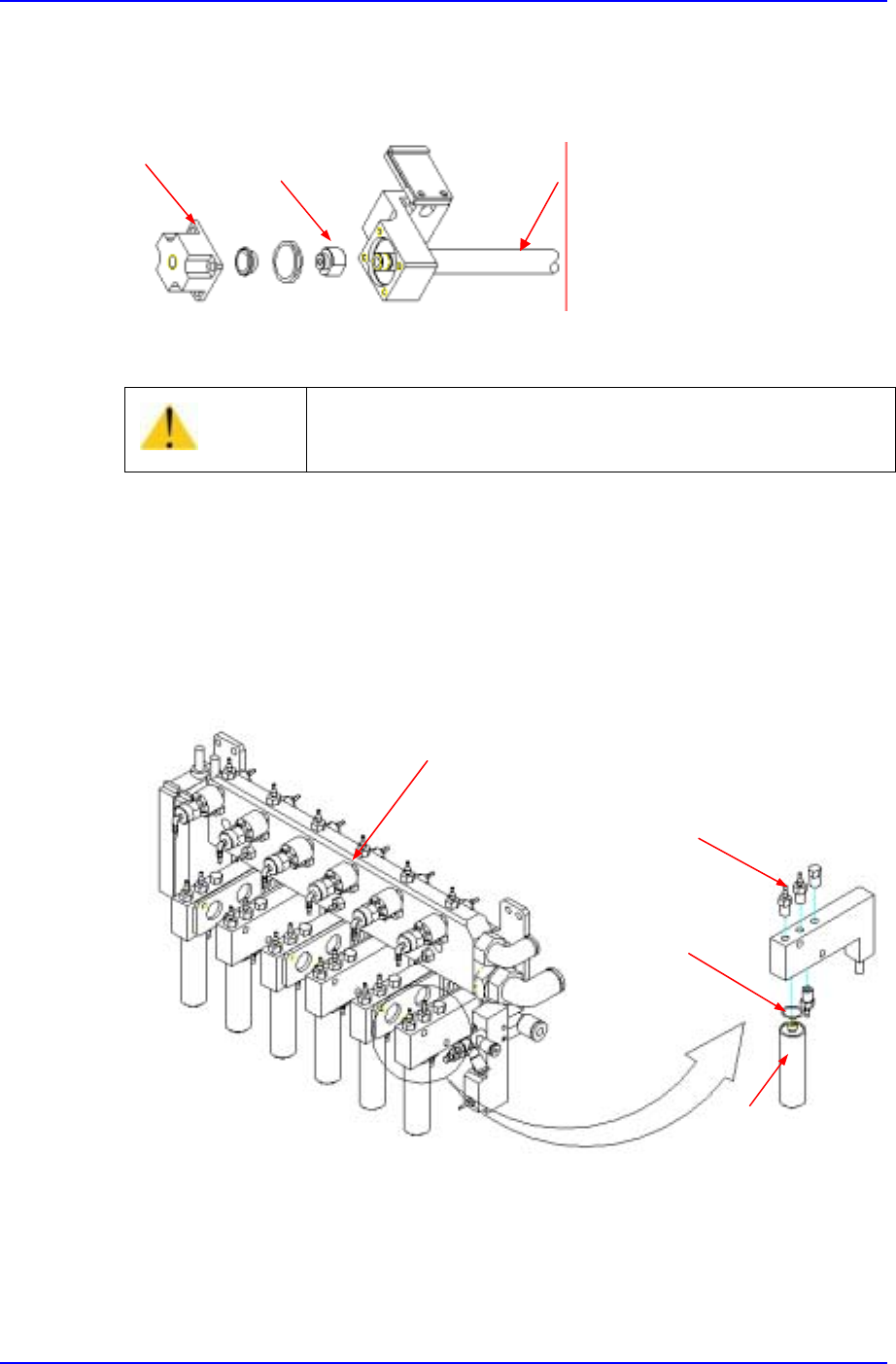

O-ring

Air Distributor

Joint

lin

Blow Chamber

Fitting

Housing

Samsung Component Placer CP-45F(V)/FS Reference Manual

1-14

tight fastening can be maintained. At this time, take precautions so that the O-ring for

packing located inside the blow chamber doesn't get dislocated.

1.2.2. X-Y Frame Section

1.2.2.1. X-axis L/M Guide Rail

Inspection

 Check the rail for discoloration or dust.

 Check the lubricants on the rails. Insufficient lubricants on the rails could cause

unusual noise during operation of the machine.

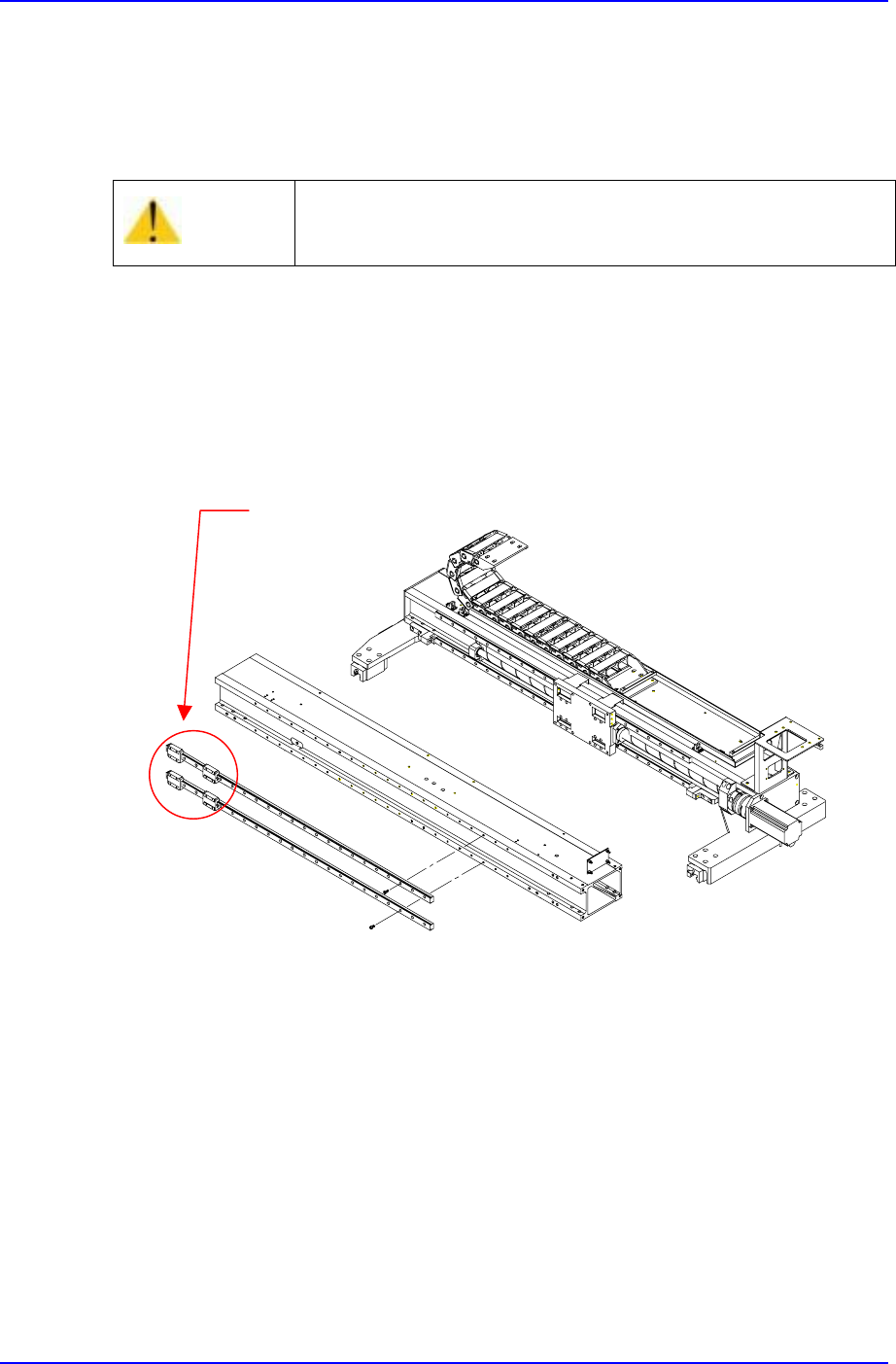

X-axis L/M Guide Rail & Bloc

Figure 1-7. X-axis L/M Guide Rail & Block

Solution

Caution

It may shorten the average life span of a machine if grease

not specified by our company is applied on the machine. Use

the grease specified by our company.
