Samsung Component Placer CP-45F(V)/FS Refer ence Manual 1-16  Clean the rail of any contamination or dust, and apply grease if necessary .  Apply grease through the grease nipple. 1.2.2.3. X-axis Ball Screw Inspection …

Preventive Maintenance

1-15

Clean any contamination or dust on the rail, and apply grease if necessary.

1.2.2.2. Y-axis L/M Guide Rail

Inspection

 Check the rail for discoloration or dust.

 Check the lubricants on the rails. Insufficient lubricants on the rails could cause

unusual noise during operation of the machine.

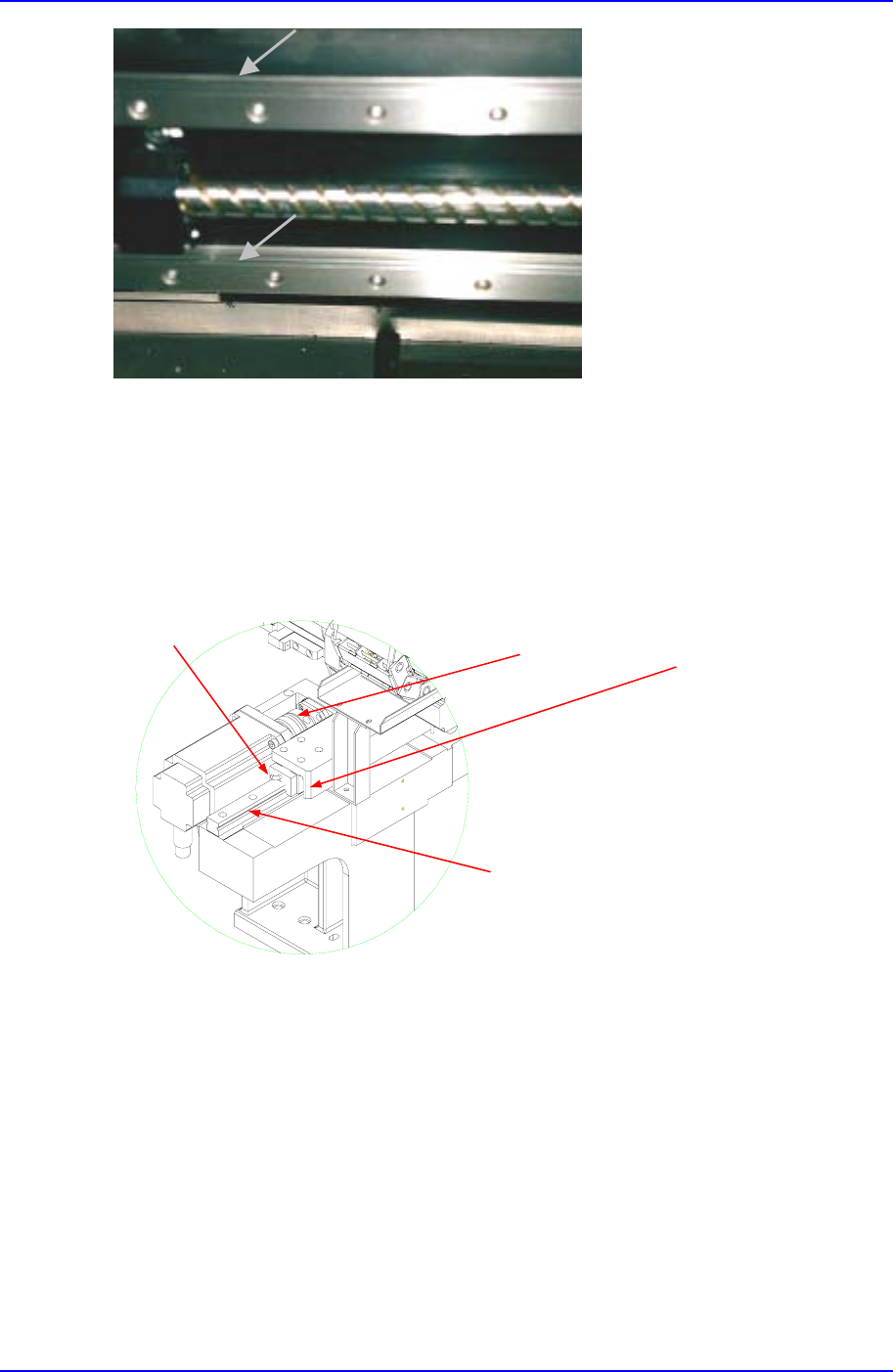

Figure 1-8. Y-axis L/M Guide

Solution

L/M Guide Block

L/M Guide Rail

Coupling

Grease

Samsung Component Placer CP-45F(V)/FS Reference Manual

1-16

 Clean the rail of any contamination or dust, and apply grease if necessary.

 Apply grease through the grease nipple.

1.2.2.3. X-axis Ball Screw

Inspection

 Check the ball screw for discoloration or dust.

 Check the lubricants on the ball screw. Insufficient lubricants on the rails could cause

unusual noise during operation of the machine.

Solution

Clean the ball screw of any contamination or dust, and apply grease if necessary.

1.2.2.4. Y-axis Ball Screw

Inspection

 Check the ball screw for discoloration or dust.

Grease

Preventive Maintenance

1-17

 Check the lubricants on the ball screw. Insufficient lubricants on the rails could cause

unusual noise during operation of the machine.

Solution

 Clean the ball screw of any contamination or dust, and apply grease if necessary.

 Apply grease through the grease nipple.

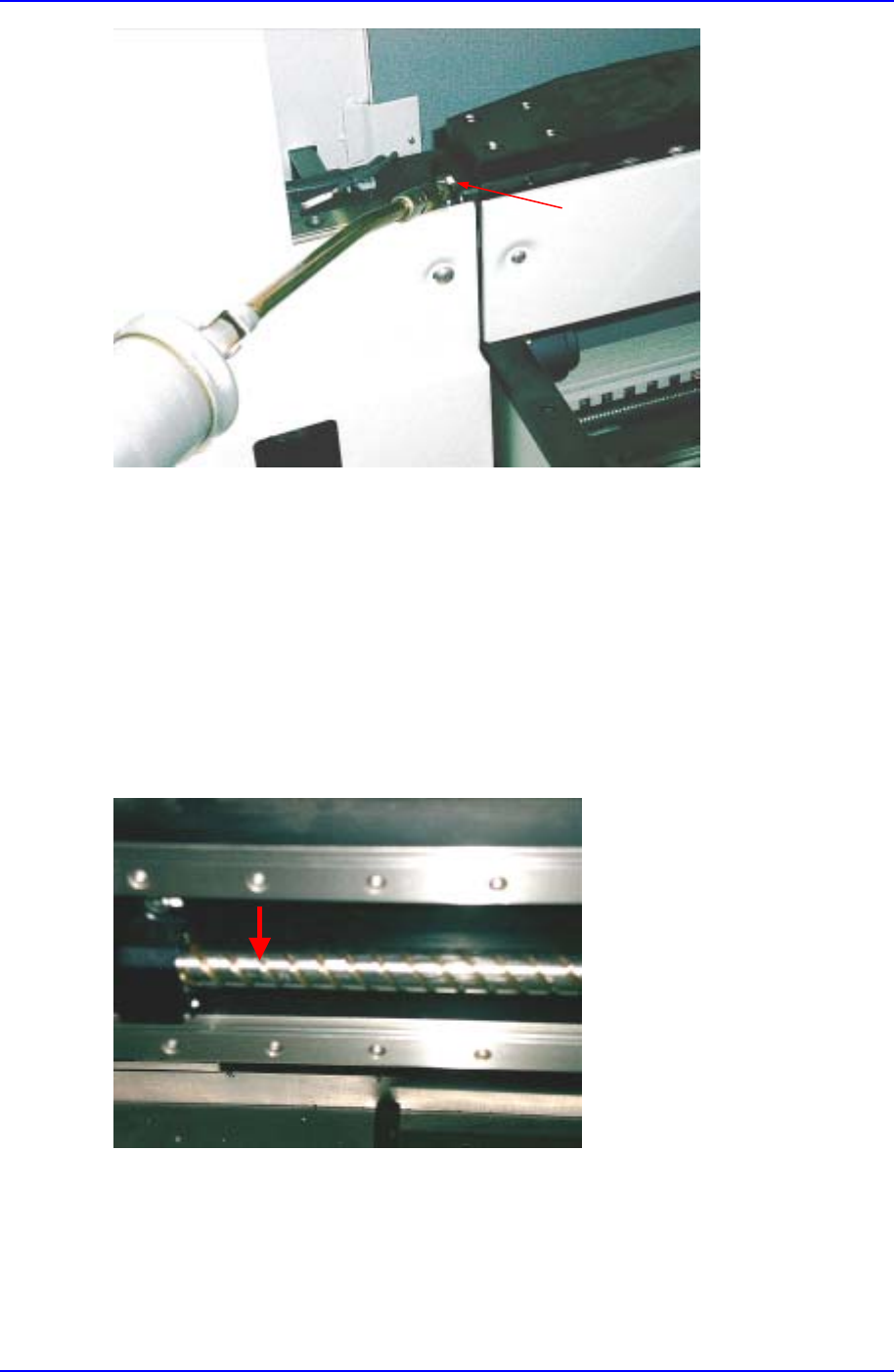

Figure 1-9. Y axis ball screw grease nipple

1.2.2.5. X,Y Axis Coupling

Inspection

 Check to see if the fastening strength of the coupling is normal.

Solution

 Tighten the fastening bolt of the coupling.

1.2.3. Conveyor System

1.2.3.1. PCB Conveyor Belt

Inspection

 Check the tension of the belt to see if it is too tight or too loose.

 Check the belt for abnormal wear.

 Check the driving motor pulley for abnormal wear.

 Check the support idler for abnormal wear.

 Check the belt to see if it has shifted in position or is coming off.

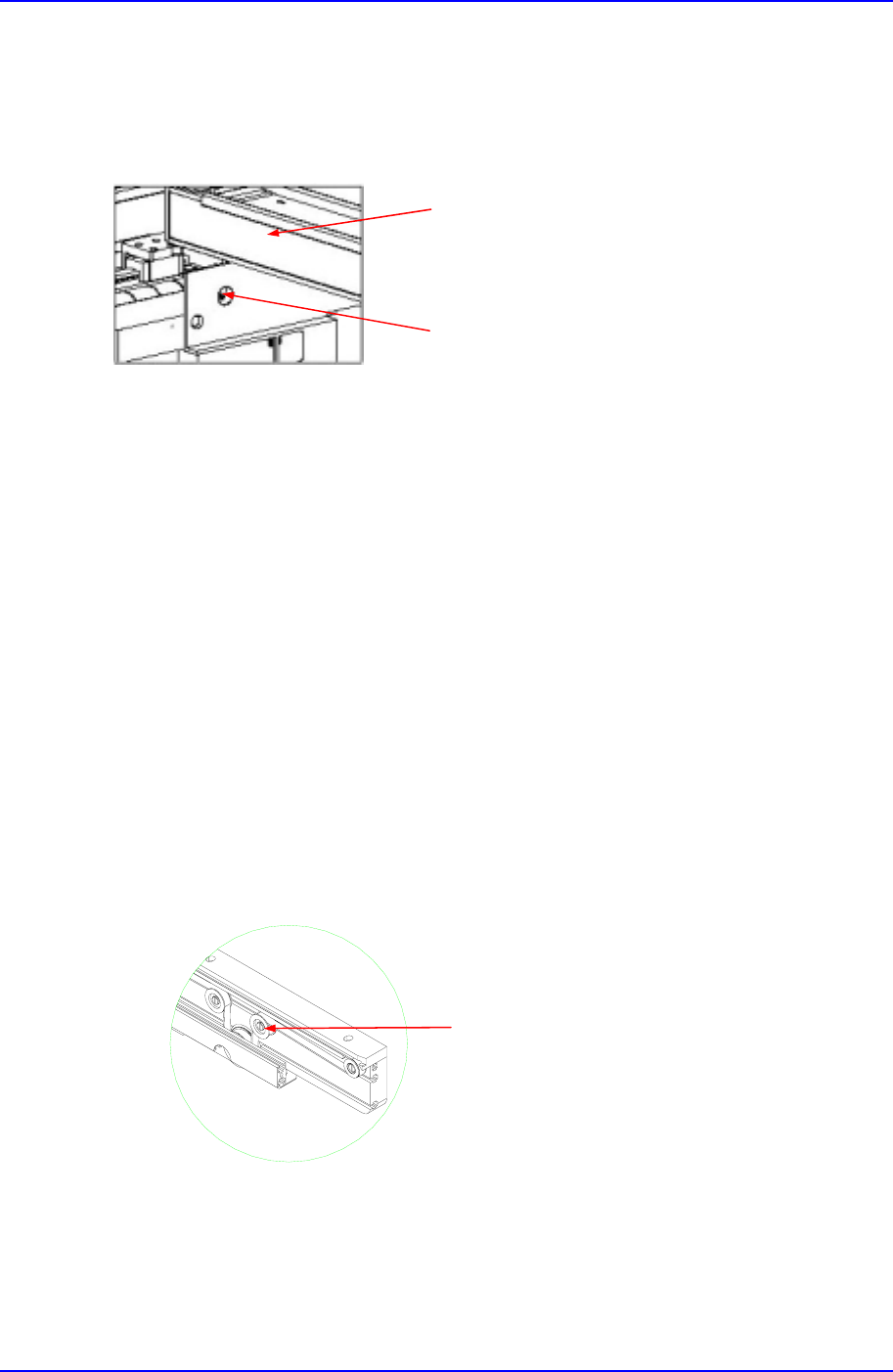

Figure 1-10. PCB Conveyor Belt

Solution

 Use the support idler for the motor to adjust the tension of the belt if it seems too tight

or too loose.

 Contact the service center to acquire replacement for the belt if an abnormal wear has

Support Idler

Y-axis ball screw grease nipple

X Frame
