Samsung Component Placer CP-45F(V)/FS Reference Manual
3-4
In case of the PC cannot detect the HDD
Check to see if the HDD is set as 'MASTER'.
JP4 □ □
JP3 □ □
JP2 □ □
JP1 □━□
Figure 3-4. HDD Jumper Setting
HDD detection
à First turn the power on, and then change to CMOS Setup mode by pressing
the <F2> or <Delete> key.
à Select the Standard CMOS Setup Menu from the main menu, and then
change the HDD type to 'AUTO' by using <Å>, <Æ>, <È>, <Ç> keys at
the Primary Master.
à Change to the main menu by pressing <Esc> key, and then enter into the
'IDE HDD auto detection'.
à Select the 'LBA' from the list.
à Change to the main menu by pressing <Esc> key, and then select the 'SAVE
& EXIT Setup' to store current setting.
à The PC may detect the HDD after automatic re-booting.
Booting using the FDD
Follow the below procedures in case of the 'IDE HDD auto detection' is not
available.
à Select the 'BIOS Features Setup' from the CMOS Setup main menu, and
then set the boot sequence as 'Boot Sequence: A, C' by using the <Pg Up>,
<Pg Dn> keys.
à Change to the main menu by pressing <Esc> key, and then select the 'SAVE
& EXIT Setup' to store current setting.
à Insert the Windows 98 startup disk into the FDD and then reboot.
Hardware Troubleshooting
3-5
à Check the HDD status by using ' SCANDISK C:' command at the DOS
command line.
à If the HDD has been damaged, contact to service center.

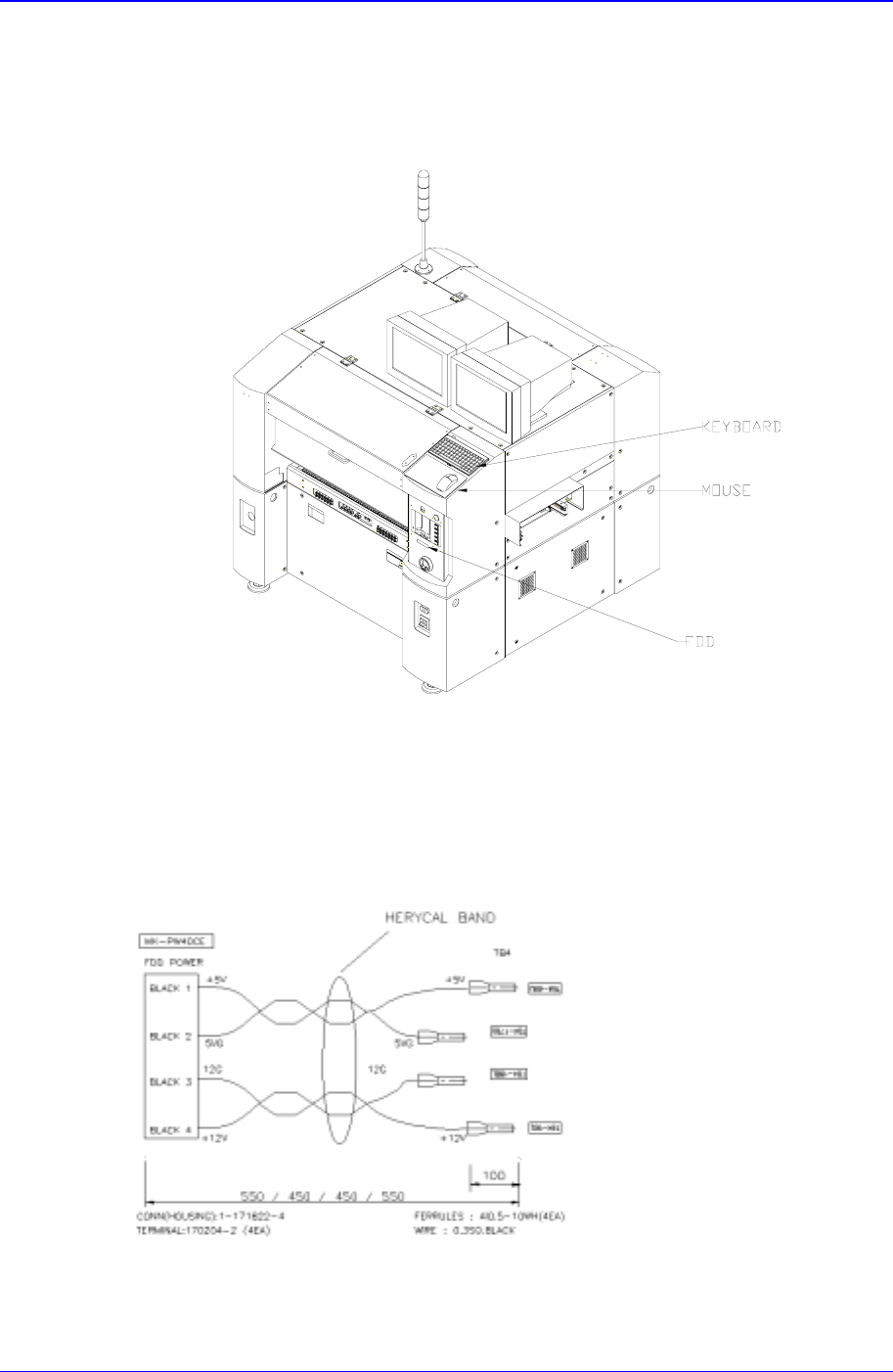

Figure 3-5. FDD, MOUSE, KEYBOARD
3.2.2.2.3. Floppy Disk Drive (FDD)
Inspection for the power supply
Check the power supply referring to the below diagram.
Figure 3-6. Inspection for the power supply of FDD
Check to see if the HDD cable is connected properly.
