Pr eventive Maintenance 1-7 How to use a grease gun Æ Join the grease nipple and the body . Separate the cylinder and the handle. Æ Pull the cylinder back and fill with grease. Put the handle back. Æ Push the cylinder sl…

100%1 / 149
Samsung Component Placer CP-45F(V)/FS Reference Manual
1-6
Pyoundo Paint Brush Gobaki Paint Brush
Grease storage method
A grease container must be opened in a clean environment devoid of dust.
Wipe the utensil to take out the grease thoroughly and use. Do not use a wooden
spatula. If chips of wood get mixed up in the grease, severe problems could occur.
The oil separation phenomenon could occur in the grease left unused for a long time.
If this happens, mix it well before using it.
If grease is taken out from the center of the container and the scooped up spot is left
untouched, the oil separation phenomenon gets aggravated as the gravity is
concentrated in the scooped up area. Raise the center area slightly and store.
If the lid of the grease container gets damaged, moisture could penetrate or grease
could be oxidized due to contact with air. Take precautions.
Preventive Maintenance
1-7

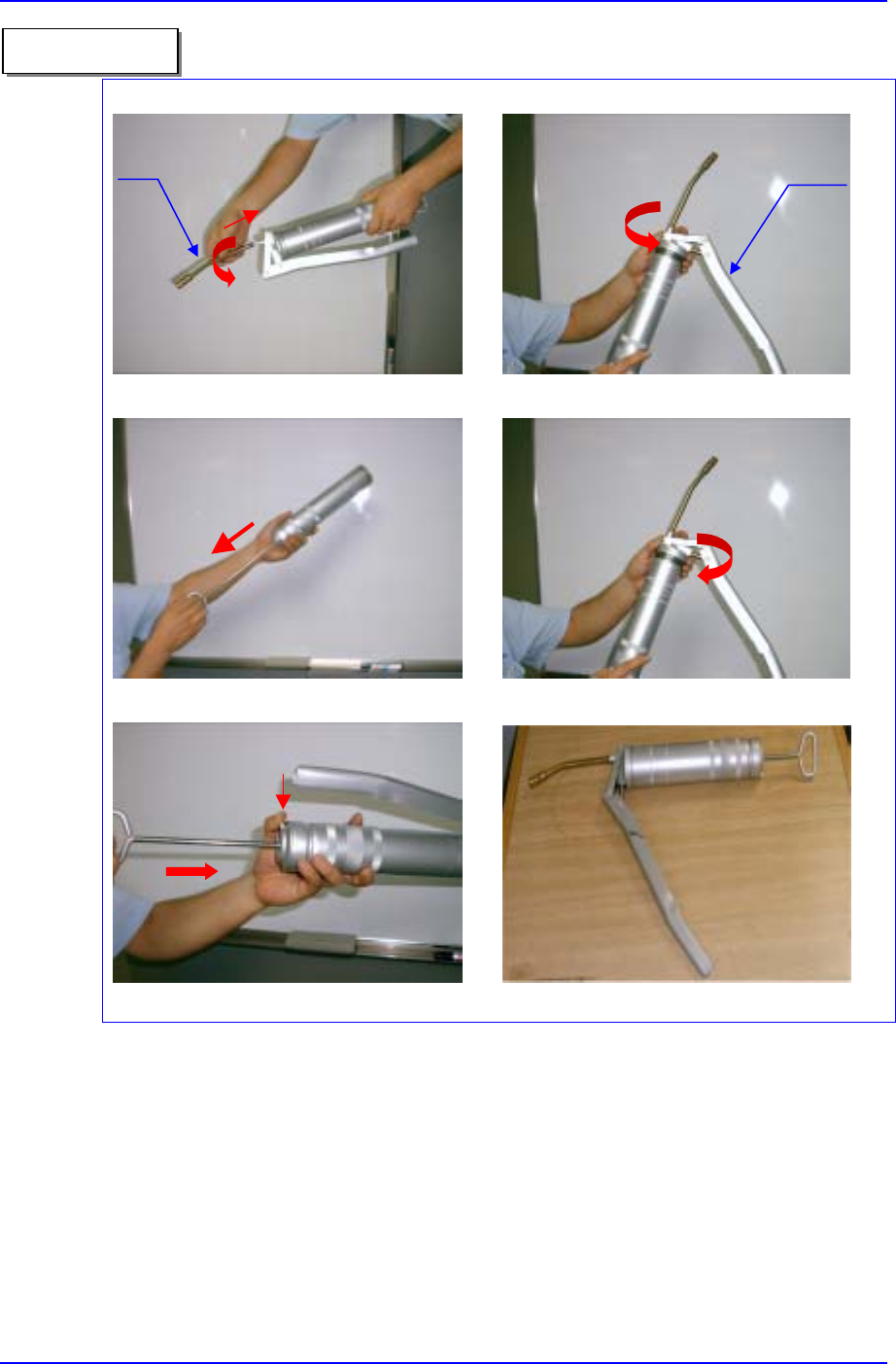

How to use a grease gun
Æ
Join the grease nipple and the body. Separate the cylinder and the handle.
Æ
Pull the cylinder back and fill with grease. Put the handle back.
Æ
Push the cylinder slightly while pressing the button with a thumb to remove the air in it.
)Reference
Grease Nipple
Handle
Samsung Component Placer CP-45F(V)/FS Reference Manual
1-8
1.2. Inspection, Maintenance and Repair for Major Areas
1.2.1. Head Assembly
1.2.1.1. Flying Vision
Inspection
If there is any contamination on the top of the mirror, the vision might not recognize
shapes properly. Check the top of the mirror for any dust or contamination frequently.

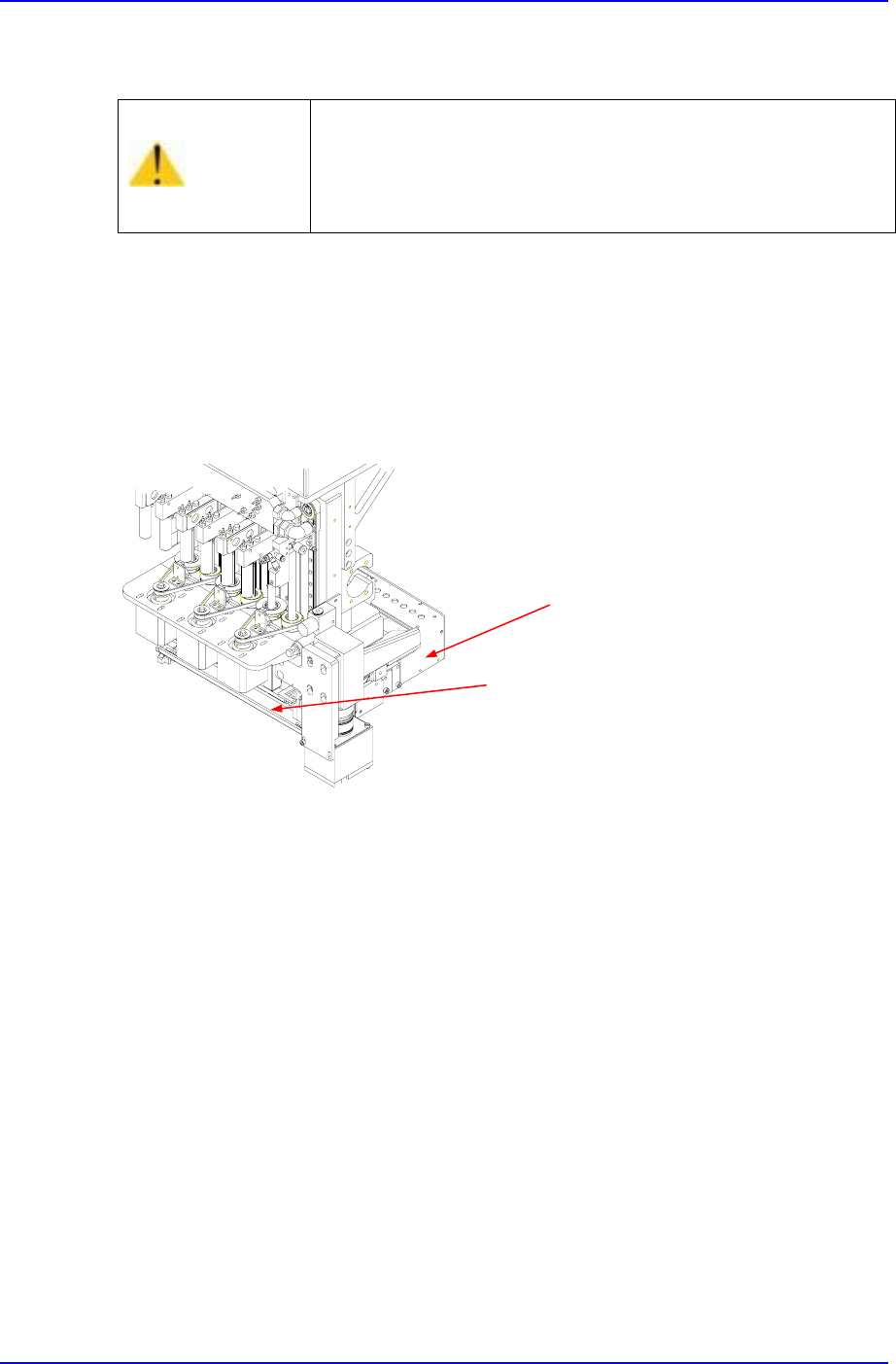

Figure 1-1. Flying vision
Caution
At this time, be careful not to leave any fingerprints and wipe the glass carefully with
cotton swab dampened with alcohol so that there won't be any scratches.
Warning
If you need to approach the major areas for maintenance,
make sure to turn off the main power switch for safety.
The malfunction caused by manual moving of the gantry
may cause damage to the machine or injury of the operator.
Don't move the gantry manually.
Mirror
Flying Vision
