Har dwar e T r oubleshooting 3-15 3.8. Motor troubleshooting Upon occurrence of an error , the '7-segment LED' blinks to display the alarm status and the alarm code or bit is output. At that tim e, take appropr…

Samsung Component Placer CP-45F(V)/FS Reference Manual

3-14

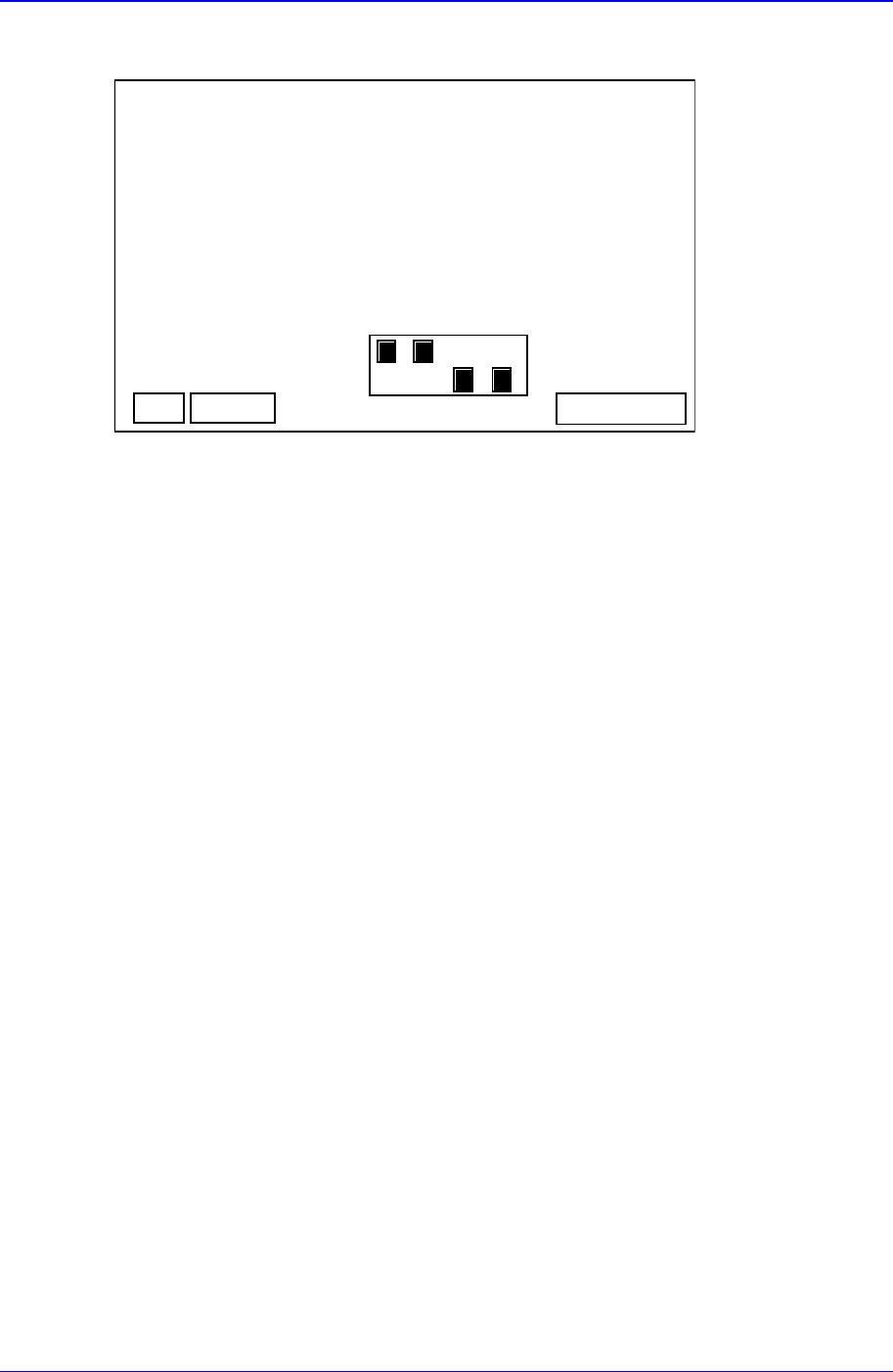

3.7. Conveyor Step Motor Driver Digital Switch Setting

CN 2CN 3 CN 1

OFF

EX F/RB F/RA

1234

Figure 3-15. Conveyor Step Motor Driver Digital Switch Setting

Hardware Troubleshooting

3-15

3.8. Motor troubleshooting

Upon occurrence of an error, the '7-segment LED' blinks to display the alarm status and

the alarm code or bit is output. At that time, take appropriate measures referring to the

following table.

Table 3-1. Motor Troubleshooting

7-segment

LED

Alarm Name Operating Status Problem Solution

Comes on only by

turning on the control

power.

y Faulty PC board.

y Replace the

Servo Amplifier

Comes on with "start

ready complete" after

turning on the main

power supply.

y Faulty PC board.

y Replace the

Servo Amplifier

Comes on with "Servo

ON".

y Faulty motor grounding.

y Faulty power module.

y Faulty current feedback

circuit.

y Replace the

motor.

y Replace the

Servo Amplifier.

y Correct the

wiring.

Power

element error

(over-

current)

Comes on with the

motor starts or stops

y Improper combination of

motor and amplifier.

y Select another

motor type.

Comes on only by

turning on the control

power.

y Faulty PC board.

y Replace the

Servo Amplifier

Comes on while the

motor is in operation.

y The motor is operated

over the rated torque.

y Review the

load.

y Review the

motor selection.

The motor rotates but

with no torque. The

LED comes on after

the motor is operated

for a while.

y Improper wiring of the

motor power line (U, V,

W).

y Broken wire in a phase

of the motor power line.

y Improper combination of

motor and amplifier.

y Correct the

wiring.

y Review the

combination.

Over-load

Comes on if the motor

is in operation under

rated torque.

y Faulty PC board.

y Replace the

Servo Amplifier

Comes on only by

turning on the control

power.

y Faulty PC board.

y Replace the

Servo Amplifier

Comes on after a little

while since the main

power supply is turned

on.

y Input supply voltage is

too high.

y Input supply voltage

waveform is distorted.

y Lower the

supply voltage

below the

specification.

Over-voltage

Comes on while the

motor is in operation.

y The load inertia is too

large

y Reduce the

load inertia

below the

specification.

Samsung Component Placer CP-45F(V)/FS Reference Manual

3-16

7-segment

LED

Alarm Name Operating Status Problem Solution

Comes on only by

turning on the control

power.

y Faulty PC board.

y Replace the

Servo Amplifier.

y Replace the

servo motor.

y Improper velocity scale

setting.

y Set the velocity

scale again.

y The velocity command

is too large.

y Reduce the

command

below the

specification.

y Faulty encoder

y Replace the

motor.

Comes on while the

motor is in operation.

y Incorrect encoder signal

wiring.

y Correct the

wiring.

y Too large overshoot.

y Reset the servo

setting.

Over-speed

Comes on when the

motor starts.

y The load inertia is too

large.

y Reduce the

load inertia

below the

specification.

y The input power is

below 170V.

y Restore the

supply voltage

to the

specification.

y The ±15V power is

abnormal.

y Replace the

Servo Amplifier.

Control

power supply

error

Comes on only by

turning on the control

power.

y Too large input power

variation.

y Lower the

power supply

voltage below

the

specification.

y Faulty encoder

y Faulty Servo Amplifier.

y Replace the

motor

y Replace the

Servo Amplifier.

y Incorrect wiring or

disconnection of the

encoder signal.

y Correct the

wiring.

y Incorrect parameter

setting or encoder type.

y Set the

parameter

again.

Sensor error

Comes on only by

turning on the control

power.

y Absolute encoder serial

communication error.

y Check the

wiring and the

encoder power

supply.

Comes on only by

turning on the control

power

y Faulty PC board.

y Replace the

Servo Amplifier.

y The supply voltage is

too low.

y Restore the

supply voltage

to the

specification.

Main power

supply drop

Comes on after the

main power is turned

on.

y The rectifier or the fuse

is blown.

y Replace the

Servo Amplifier.
