9. Remove the UV lamp from the two clips by pulling out simultaneously on both sides.
To preserve the lamp characteristics, do not touch the lamp with the skin. In case of
accidental contact, wipe off the lamp with the alcohol wipe supplied.

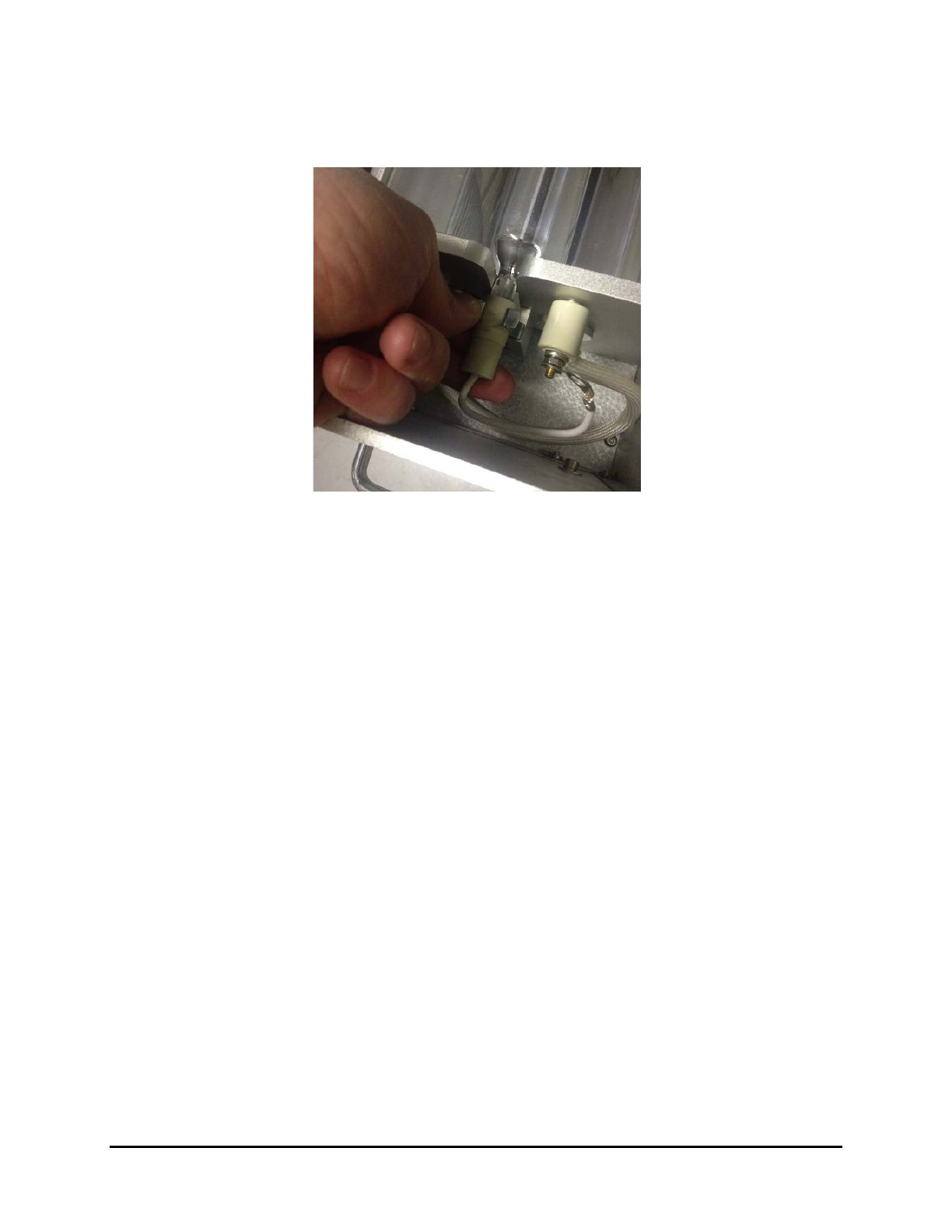

Figure 6-6 Removing the Lamp
10. To replace the UV lamp, perform Steps 1-8 above, in reverse order.
11. Repeat Steps 1-9 for the second lamp.
6-6 Maintenance
Maintenance 6-7
6.5.3 Conveyor Chain Lubrication
Tools and Materials Needed:
Stabigrease
®
BD2 (P/N 7277988, GREASE, CNVR, UV-9)
To lubricate the conveyor chains:
1. Press the
Start/Stop button on the Control Panel for 5 seconds to turn off the oven.
2. Disable the UV lamp (
Top Lamp > Parameters > Disable).
3. Open the electrical cabinet and turn off the top lamp’s circuit breaker (Figure 6-7).

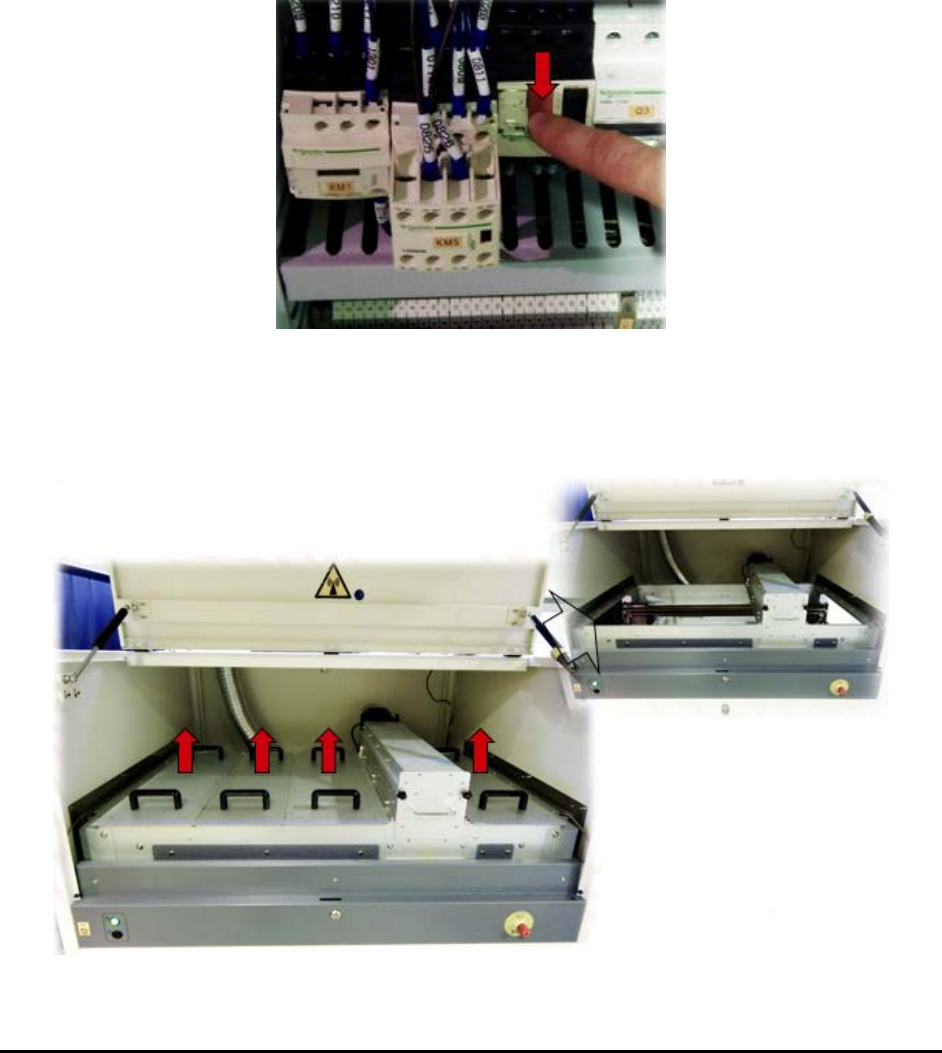

Figure 6-7 Top Lamp Circuit Breaker
4. If the unit has a bottom lamp, turn off that circuit breaker also.
5. Remove the tunnel cover to access the conveyor (Figure 6-8).
Figure 6-8 Remove the Tunnel Cover
6. Remove the magnetic target (Figure 6-9) from the top cover and place it in front of the
magnetic sensor (Figure 6-10).

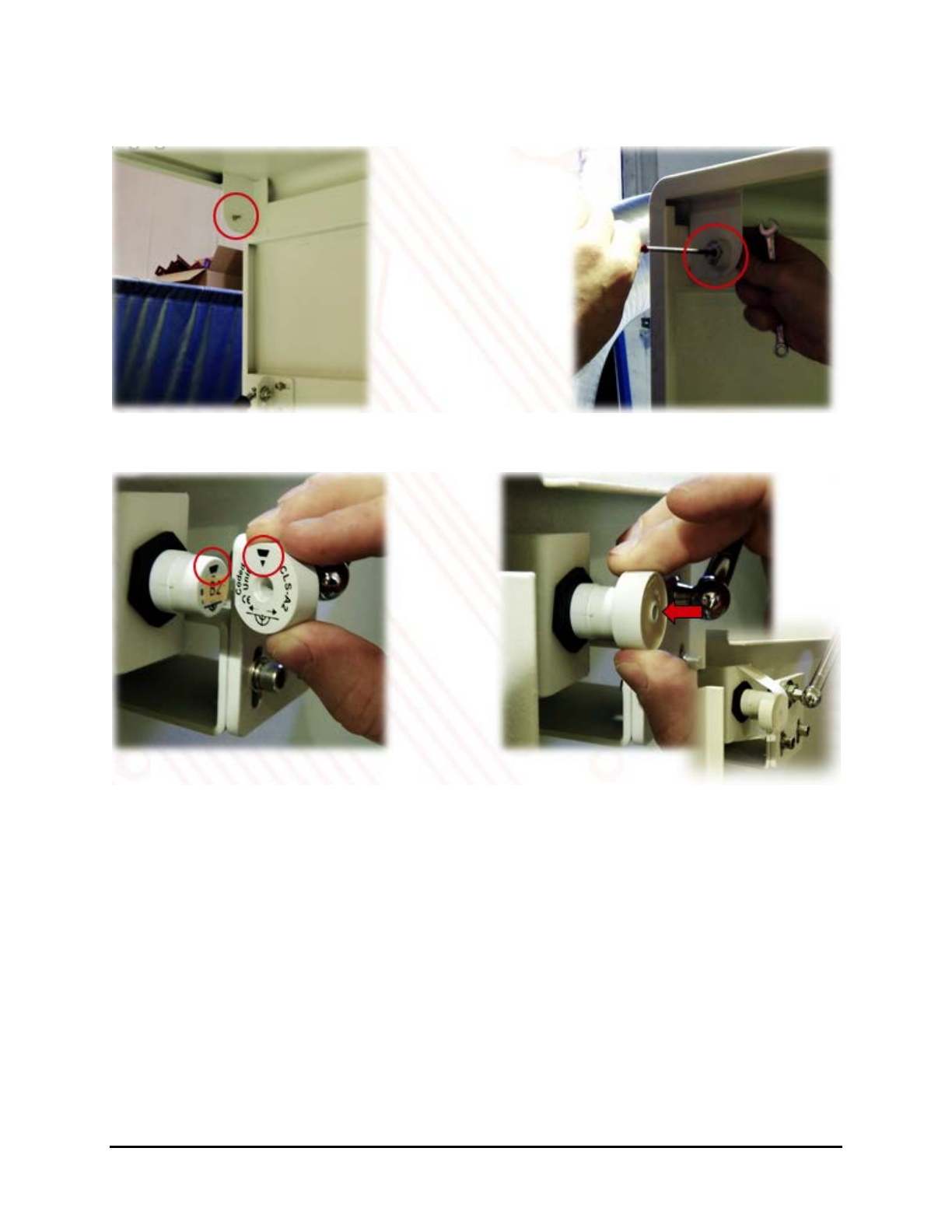

Figure 6-9 Remove the Magnetic Target
Figure 6-10 Place the Magnetic Target in Front of Magnetic Sensor
7. Set the conveyor speed to 100 cm/min and press Start on the Control Menu to start the
UV-9 Cure Module.
