5.5.2 Starting the Oven

1. After the recipe has been loaded, press the Start button on the Control Menu (Figure 5-2).

 The Start Oven confirmation screen is displayed (Figure 5-4).

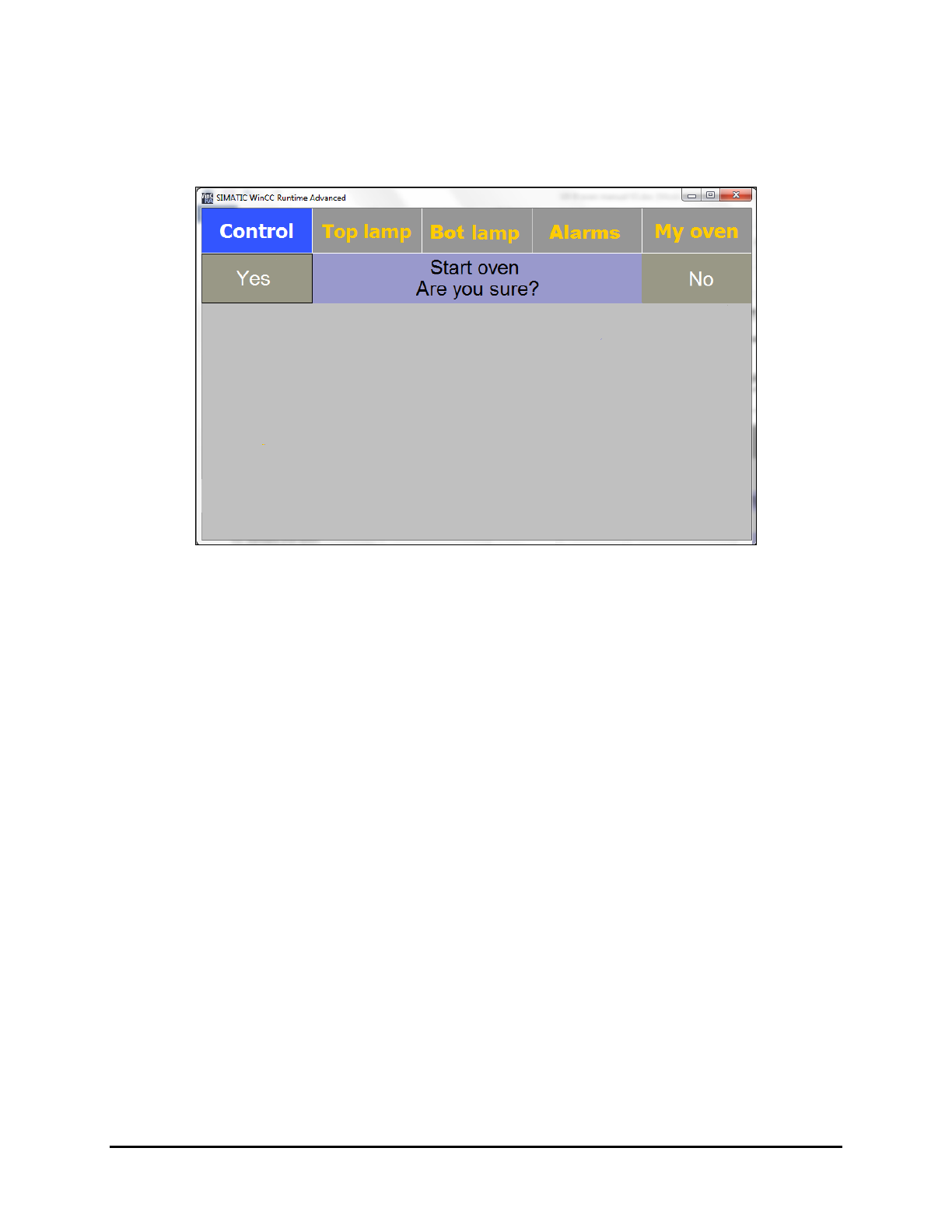

Figure 5-4 Start Oven Confirmation Screen

2. Click on Yes to start the oven.

 NOTE The life of the UV lamp decreases by 2 hours each time the lamp is turned off

and back on.

 The UV lamp and the conveyor are simultaneously started.

 The

Start button becomes yellow.

 The conveyor increases speed up to the set value and the UV lamps are preheated for 80

seconds minimum at 80% of the maximum power.

 Once the lamp has sufficient power (350 V), the exhaust system starts.

 The oven is ready for production; the UV lamp is on stand-by at 30% of maximum

power. The orange light of the beacon is blinking.

- When the oven is ready, it is waiting for the AVAILABLE signal from the

upstream equipment and the READY signal from the downstream machine.

- When the two signals are received, the UV lamp is powered to the set value and the

shutters are opened. The oven sends a READY signal to the upstream equipment

when the setpoint value is reached.

- After an adjustable delay, if there are no boards in the oven, the shutters of the UV

lamp are shut and the power of the UV lamp decreases to the stand-by setpoint

value (default: 30%).

 NOTE If the down-stream conveyor is not ready, the oven does not send the ready signal in

order to avoid leaving a product under UV radiation.

5-4 Operation

5.5.3 Stopping Production

To stop the equipment:

1. Press the

Stop button on the Control menu (Figure 5-2).

 A confirmation screen is displayed (Figure 5-5).

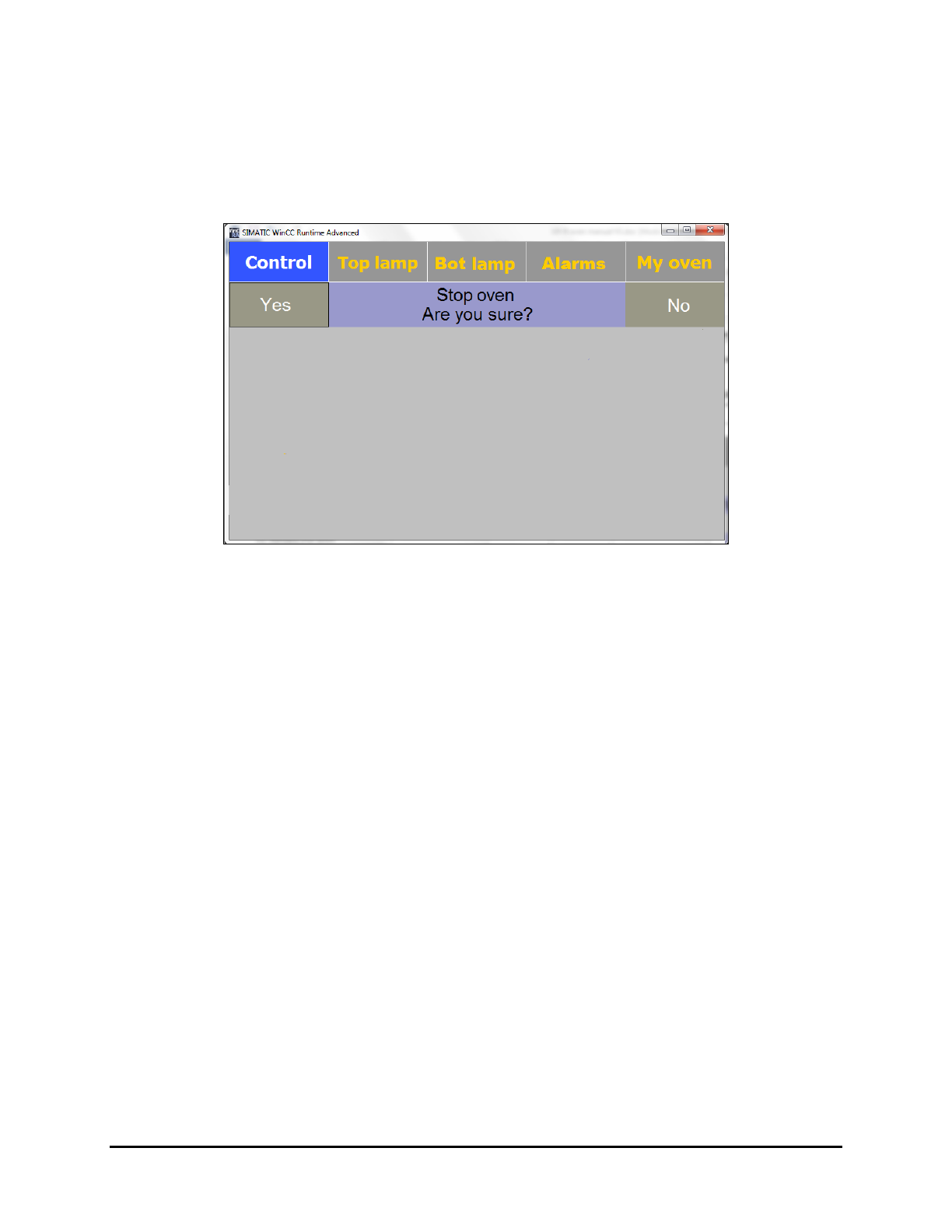

Figure 5-5 Oven Stop Confirmation Screen

2. Click on Yes.

 The UV lamp and the conveyor are both stopped.

 The exhaust pump will run for 3 minutes to cool down the UV lamp.

 NOTES The equipment cannot be restarted during the UV lamp cool down period.

The life of the UV lamp decreases by 2 hours each time the lamp is turned

off and on.

5.6 System Shutdown

1. Turn off the oven by pressing the Stop button on the Control Menu.

 Alternatively, you can press and hold the black

Start/Stop button on the Control Panel

for 5 seconds to turn off the oven.

2. Turn the Main Power Switch on the back of the UV-9 Cure Module to the OFF position.

3. If shutting down for service, perform a service shutdown. See 2.11 Service Shutdown.

Operation 5-5

5.7 Software Description

5.7.1 Control Menu

Select Control to open the Control Menu (Figure 5-6). The button background color is blue when the

menu is active. Depending on system configuration, there may be additional buttons on the Control Menu

(PCB Counter, Shutter, etc.).

Name Description

Top Lamp Button

Select Top Lamp to open the Top Lamp Menu.

The button background color is blue when the menu is active.

Bot Lamp Button

Select Bot Lamp to open the Bottom Lamp Menu.

The button background color is blue when the menu is active.

Alarms Button

Select Alarms to open the Alarm Menu. See 5.7.3 Alarms .

The background is red when an alarm is active.

My Oven Button

Select My Oven to open the My Oven Menu.

The button background color is blue when the menu is active.

Recipes Button Select Recipes to open the Recipes Menu. See 5.7.1.1 Recipes Menu.

Start Button

Select Start to start the oven. The background is yellow when the oven is

running.

Stop Button Select Stop to stop the oven.

Rail +/ Rail -

Adjusts the conveyor width. Click on Rail + to widen the distance between the

rails and Rail – to make the distance more narrow.

The current user name is displayed below the login button. Click the current

user name to login as a different user.

(Recipe Name)

Displays the name of the current recipe.

Top Lamp Power

Top lamp power level percentage level. The background of the set value is

orange when the value is not reached and green when the value is reached.

Conveyor Speed

Conveyor speed. The background of the set value is orange when the value is

not reached and green when the value is reached.

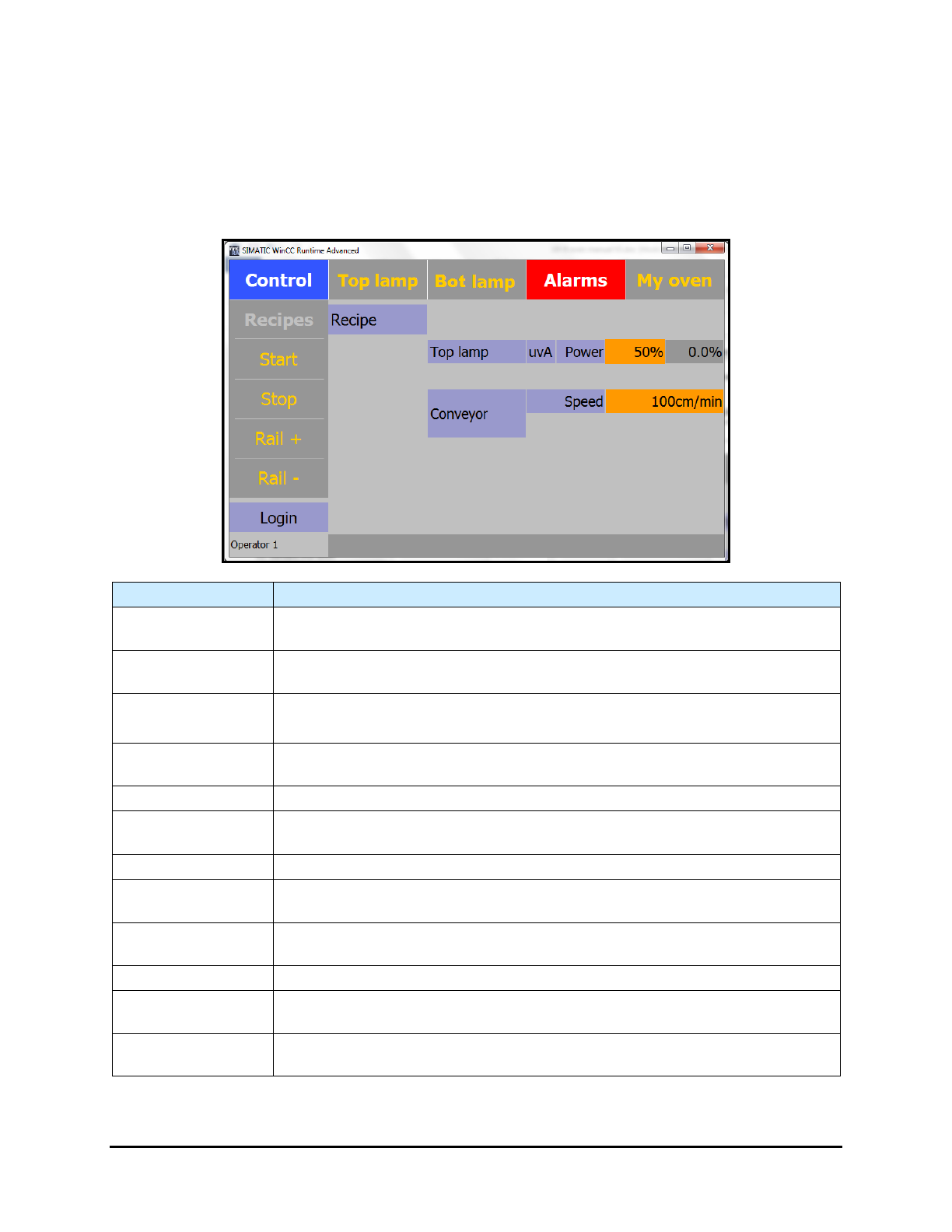

Figure 5-6 Control Menu – Top and Bottom Lamps

5-6 Operation
